# Customize and Extend Simscape Libraries for a Custom DC Motor

Create a custom equation based components for the Simscape Library using the Symbolic Math Toolbox.

### Introduction

The Symbolic Math Toolbox provides a flexible way to develop models from first engineering principles in any spatial dimension. You can develop mathematical models for steady state or transient physics.

You can develop and solve the equations required to represent the physics necessary for your component; and perform your own reduced-order model mapping between the inputs x and a quantity of interest f(x).

Here f is the custom component which can represent governing equations in the form of:

• Mathematical formulas

• Numerical simulations of ODEs and PDEs

The steps in this examples are

• Parameterizing a Simscape component using symReadSSCVariables

• Define custom equations for your Simscape component using diff

• Solve steady-state equations analytically using solve and subs

• Solve time-dependent equations numerically in MATLAB by using matlabFunction and ode45

• Create a Simscape component using symWriteSSC

To run this example, you must have licenses for Simscape and Symbolic Math Toolbox.

### DC Motor Model

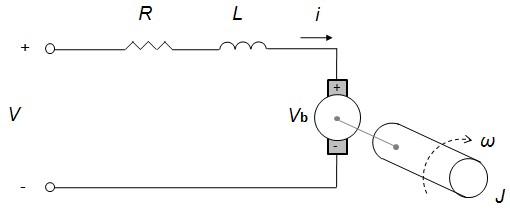

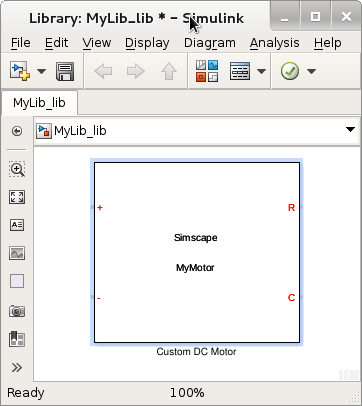

A DC motor is a device for converting electrical energy into mechanical energy and vice versa. A schematic of a DC motor is shown below (left figure). Blocks that simulate DC motors are provided in Simscape Electrical™ (right figure), which is an optional product for Simscape.

In this example, we will derive a reduced-order model representation of a DC Motor using the governing Ordinary Differential Equations (ODEs). For a DC motor, the electrical voltage and current is derived from Kirchhoff’s laws and the formula of the mechanical torque is derived from Newton’s laws. Using these equations we can implement a custom and parametric Simscape component.

### Import Parameters and Variables of the Template Component

Suppose you have a Simscape component MyMotorTemplate.ssc in your current folder or on the default MATLAB path. This component has no equations yet. The template records the parameters and variables which will be used to develop our motor. You can use type to provide a preview of that template.

type MyMotorTemplate.ssc
component MyMotorTemplate
% Custom DC Motor
% This block implements a custom DC motor
nodes
p = foundation.electrical.electrical; % +:left
n = foundation.electrical.electrical; % -:left
r = foundation.mechanical.rotational.rotational; % R:right
c = foundation.mechanical.rotational.rotational; % C:right
end
parameters
R = {3.9, 'Ohm'};                 %Armature resistance
L = {0.000012, 'H'};              %Armature inductance
J = {0.000001, 'kg*m^2'};         %Inertia
Dr = {0.000003, '(N*m*s)/rad'};   %Rotor damping
Ki = {0.000072, '(N*m)/A'};       %Torque constant
Kb = {0.000072, '(V*s)/rad'};     %Back-emf constant
end
variables
torque = {0, 'N*m'};  %Total Torque
tau = {0, 'N*m'};     %Electric Torque
w = {0, 'rad/s'};     %Angular Velocity
I = {0, 'A'};         %Current
V = {0, 'V'};         %Applied voltage
Vb = {0, 'V'};        %Counter electromotive force
end
function setup
if(R<=0)
error('Winding resistance must be greater than 0.');
end
end
branches
torque : r.t -> c.t; % Through variable tau from r to c
I   : p.i -> n.i; % Through variable i from p to n
end
equations
w == r.w -c.w; % Across variable w from r to c
V == p.v -n.v; % Across variable v from p to n
end
end

Read the names, values, and units of the parameters from the template component.

Display the parameters, their values, and the corresponding units as vectors.

vpa([parNames; parValues; parUnits],10)
ans =

$\left(\begin{array}{cccccc}\mathrm{Dr}& J& \mathrm{Kb}& \mathrm{Ki}& L& R\\ 0.000003& 0.000001& 0.000072& 0.000072& 0.000012& 3.9\\ 1 \frac{\mathrm{N}\mathrm{"newton - a physical unit of force."} \mathrm{m}\mathrm{"meter - a physical unit of length."} \mathrm{s}\mathrm{"second - a physical unit of time."}}{\mathrm{rad}\mathrm{"radian - a physical unit of plane angle."}}& 1 \mathrm{kg}\mathrm{"kilogram - a physical unit of mass."} {\mathrm{m}\mathrm{"meter - a physical unit of length."}}^{2}& 1 \frac{\mathrm{V}\mathrm{"volt - a physical unit of electric potential."} \mathrm{s}\mathrm{"second - a physical unit of time."}}{\mathrm{rad}\mathrm{"radian - a physical unit of plane angle."}}& 1 \frac{\mathrm{N}\mathrm{"newton - a physical unit of force."} \mathrm{m}\mathrm{"meter - a physical unit of length."}}{\mathrm{A}\mathrm{"ampere - a physical unit of electric current."}}& \mathrm{H}\mathrm{"henry - a physical unit of inductance."}& \mathrm{\Omega }\mathrm{"ohm - a physical unit of resistance."}\end{array}\right)$

Add the parameter names to the MATLAB Workspace by using the syms function. Parameters appear as symbolic variables in the workspace. You can use who to list variables in the workspace.

syms(parNames)
syms

Dr   J    Kb   Ki   L    R    ans

Read and display the names of the component variables. Use ReturnFunction to simultaneously convert these variables to functions of the variable t.

[varFuns, varValues, varUnits] = symReadSSCVariables('MyMotorTemplate', 'ReturnFunction', true);
vpa([varFuns; varValues; varUnits],10)
ans =

$\left(\begin{array}{cccccc}\text{I}\left(t\right)& V\left(t\right)& \mathrm{Vb}\left(t\right)& \tau \left(t\right)& \mathrm{torque}\left(t\right)& w\left(t\right)\\ 0& 0& 0& 0& 0& 0\\ \mathrm{A}\mathrm{"ampere - a physical unit of electric current."}& \mathrm{V}\mathrm{"volt - a physical unit of electric potential."}& \mathrm{V}\mathrm{"volt - a physical unit of electric potential."}& 1 \mathrm{N}\mathrm{"newton - a physical unit of force."} \mathrm{m}\mathrm{"meter - a physical unit of length."}& 1 \mathrm{N}\mathrm{"newton - a physical unit of force."} \mathrm{m}\mathrm{"meter - a physical unit of length."}& 1 \frac{\mathrm{rad}\mathrm{"radian - a physical unit of plane angle."}}{\mathrm{s}\mathrm{"second - a physical unit of time."}}\end{array}\right)$

Add the variable names to the MATLAB Workspace by using the syms function. Variables appear as symbolic functions in the workspace. Verify that you have declared all required symbolic variables and functions using syms.

syms(varFuns)
syms

Dr      J       Ki      R       Vb      t       torque
I       Kb      L       V       ans     tau     w

### Define the system of equations for modeling a DC Motor

The differential equations for the mechanical torque are defined as eq1 and eq2. I(t) represents the current and w(t) the angular velocity.

eq1 = torque + J*diff(w(t)) == -Dr*w(t) + tau(t)
eq1(t) =

eq2 = tau(t) == Ki*I(t)
eq2 = $\tau \left(t\right)=\mathrm{Ki} \text{I}\left(t\right)$

The equations for the electrical voltage and current are eq3 and eq4. V(t) and Vb(t) represent the applied voltage and counter electromotive force respectively.

eq3 = L*diff(I(t)) + R*I(t) == V(t) - Vb(t)
eq3 =

eq4 = Vb(t) == Kb*w(t)
eq4 = $\mathrm{Vb}\left(t\right)=\mathrm{Kb} w\left(t\right)$

We can list them together. Here, the motor’s torque is assumed to be proportional to the current.

eqs = formula([eq1; eq2; eq3; eq4])
eqs =

Extract the left and right sides of the equations.

operands = children(eqs);
operList = [ operands{:} ];
lhs = operList(1:2:end)
lhs=1×4 cell array
{[J*diff(w(t), t...]}    {[tau(t)]}    {[L*diff(I(t), t...]}    {[Vb(t)]}

rhs = operList(2:2:end)
rhs=1×4 cell array
{[tau(t) - Dr*w(t)]}    {[Ki*I(t)]}    {[V(t) - Vb(t)]}    {[Kb*w(t)]}

The second and fourth equations define the values tau(t) and Vb(t). To simplify the system of four equations to a system of two equations, substitute these values into the first and third equation.

equations(1) = subs(eqs(1), lhs(2), rhs(2))
equations =

equations(2) = subs(eqs(3), lhs(4), rhs(4))
equations =

equations.'
ans =

Before solving the equations, substitute parameters with their numeric values. Also, use V(t) = 1.

equations = subs(equations, [parNames,V(t)], [parValues,1]);
equations = subs(equations, torque, 0);
vpa(equations.',10)
ans =

### Solve the equations for the steady state.

For this, remove the time dependency for the functions w(t) and I(t). For example, substitute them with symbolic variables ww and ii.

syms ww ii

steadyStateW = $6.151120734$
steadyStateI = $0.2562966973$

### Numerically simulate the symbolic expression in MATLAB by using matlabFunction and ode45.

Create a valid input for ode45 from the symbolic equations. Use odeToVectorField to create the MATLAB procedure which represents the dynamical system $\frac{\mathrm{dY}}{\mathrm{dt}}=\mathit{f}\left(\mathit{t},\mathit{Y}\right)$ with the initial condition $\mathit{Y}\left({\mathit{t}}_{0}\right)={\mathit{Y}}_{0}$.

[vfEquations, tVals] = odeToVectorField(equations)
vfEquations =

$\left(\begin{array}{c}\frac{147573952589676412928}{1770887431076117}-6 {Y}_{2}-\frac{2877692075498690052096 {Y}_{1}}{8854437155380585}\\ \frac{83010348331692984375 {Y}_{1}}{1152921504606846976}-\frac{27670116110564328125 {Y}_{2}}{9223372036854775808}\end{array}\right)$

tVals =

$\left(\begin{array}{c}\text{I}\\ w\end{array}\right)$

M = matlabFunction(vfEquations,'Vars', {'t','Y'})
M = function_handle with value:
@(t,Y)[Y(1).*(-3.25e+5)-Y(2).*6.0+8.333333333333333e+4;Y(1).*7.2e+1-Y(2).*3.0]

Solve the differential equation using the initial conditions w(0) = 0 and I(0) = 0.

solution = ode45(M,[0 3],[0 0])
solution = struct with fields:
solver: 'ode45'
extdata: [1x1 struct]
x: [0 2.4114e-09 1.4468e-08 7.4754e-08 3.7618e-07 1.8833e-06 ... ]
y: [2x293775 double]
stats: [1x1 struct]
idata: [1x1 struct]

Evaluate the solution at the following points in time t=[0.5,0.75,1]. The first value is the current I(t) and the second value is the angular velocity w(t). We see that the solution for the angular velocity is starting to approach a steady state steadyStateW.

deval(solution,0.5), deval(solution,.75), deval(solution,1)
ans = 2×1

0.2563
4.7795

ans = 2×1

0.2563
5.5034

ans = 2×1

0.2563
5.8453

steadyStateW = $6.151120734$

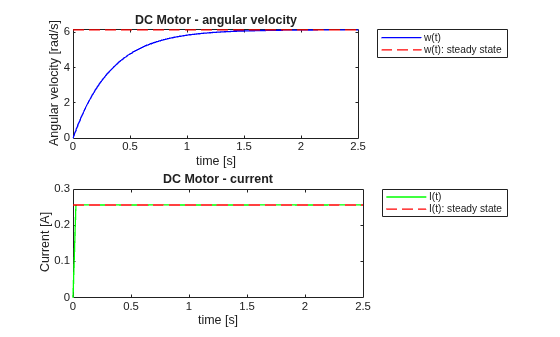

Plot the solution.

time  = linspace(0,2.5);
iValues = deval(solution, time, 1);
wValues = deval(solution, time, 2);

figure;
plot1 = subplot(2,1,1);
plot2 = subplot(2,1,2);

plot(plot1, time, wValues, 'blue',  time, steadyStateValuesW, '--red', 'LineWidth', 1)
plot(plot2, time, iValues, 'green', time, steadyStateValuesI, '--red', 'LineWidth', 1)

title(plot1, 'DC Motor - angular velocity')
title(plot2, 'DC Motor - current')
ylabel(plot2, 'Current [A]')
xlabel(plot1, 'time [s]')
xlabel(plot2, 'time [s]')
legend(plot1, 'w(t)', 'w(t): steady state', 'Location', 'northeastoutside')
legend(plot2, 'I(t)', 'I(t): steady state', 'Location', 'northeastoutside')

### Save your mathematical model back for use in Simscape.

Generate Simscape code using the original equations eqs.

symWriteSSC('MyMotor.ssc', 'MyMotorTemplate.ssc', eqs, ...
'H1Header', '% Custom DC Motor', ...
'HelpText', {'% This block implements a custom DC motor'})

Display the generated component by using the type command.

type MyMotor.ssc
component MyMotor
% Custom DC Motor
% This block implements a custom DC motor
nodes
p = foundation.electrical.electrical; % +:left
n = foundation.electrical.electrical; % -:left
r = foundation.mechanical.rotational.rotational; % R:right
c = foundation.mechanical.rotational.rotational; % C:right
end
parameters
R = {3.9, 'Ohm'};                 %Armature resistance
L = {0.000012, 'H'};              %Armature inductance
J = {0.000001, 'kg*m^2'};         %Inertia
Dr = {0.000003, '(N*m*s)/rad'};   %Rotor damping
Ki = {0.000072, '(N*m)/A'};       %Torque constant
Kb = {0.000072, '(V*s)/rad'};     %Back-emf constant
end
variables
torque = {0, 'N*m'};  %Total Torque
tau = {0, 'N*m'};     %Electric Torque
w = {0, 'rad/s'};     %Angular Velocity
I = {0, 'A'};         %Current
V = {0, 'V'};         %Applied voltage
Vb = {0, 'V'};        %Counter electromotive force
end
function setup
if(R<=0)
error('Winding resistance must be greater than 0.');
end
end
branches
torque : r.t -> c.t; % Through variable tau from r to c
I   : p.i -> n.i; % Through variable i from p to n
end
equations
w == r.w -c.w; % Across variable w from r to c
V == p.v -n.v; % Across variable v from p to n
torque+J*w.der == tau-Dr*w;
tau == Ki*I;
L*I.der+R*I == V-Vb;
Vb == Kb*w;
end
end

Build a Simscape library from the generated component.

if ~isdir('+MyLib')
mkdir +MyLib;
end
copyfile MyMotor.ssc +MyLib;
ssc_build MyLib;
Generating Simulink library 'MyLib_lib' in the current directory '/tmp/Bdoc21b_1757077_234318/tp238e4c8b/symbolic-ex98670381' ...
