Host Communication

R2026b
Use serial blocks to communicate between the host and the target

Use the serial blocks available on TI’s C2000™ microcontrollers to communicate between the host and the target. Configure the Simulink® model to interface with supported target hardware using model configuration parameters.

Blocks

Serial Configuration blockSerial ConfigurationConfigure parameters for serial port
Serial Receive blockSerial Receive Receive binary data over serial port
Serial Send blockSerial SendSend binary data over serial port

Model Settings

Model Configuration Parameters for Texas Instruments C2000 Processors
Model Configuration Parameters for Texas Instruments F29x (C29x)

Featured Examples

Field-Oriented Control of PMSM with Quadrature Encoder Using C2000 Processors

Field-Oriented Control of PMSM with Quadrature Encoder Using C2000 Processors

Implements the field-oriented control (FOC) technique to control the speed of a three-phase permanent magnet synchronous motor (PMSM). The FOC algorithm requires rotor position feedback, which is obtained by a quadrature encoder sensor. For details about FOC, see Field-Oriented Control (Motor Control Blockset).

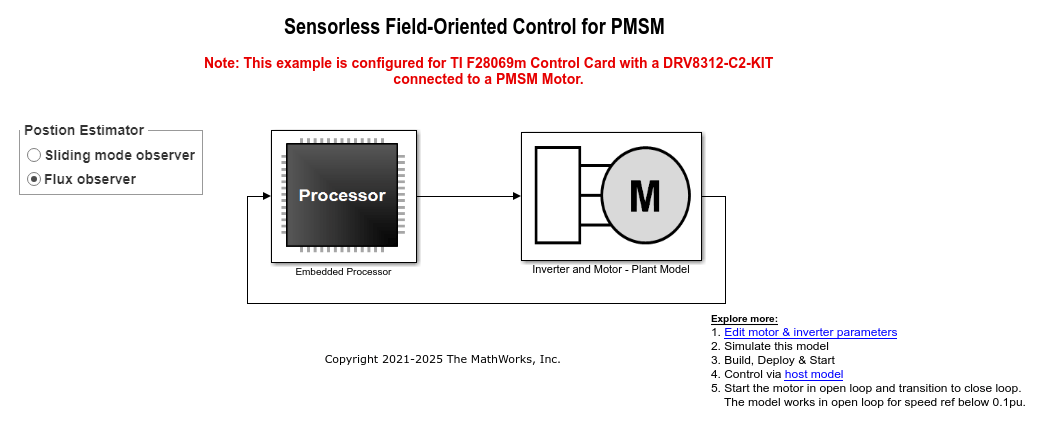

Sensorless Field-Oriented Control of PMSM Using C2000 Processors

Sensorless Field-Oriented Control of PMSM Using C2000 Processors

Implements the field-oriented control (FOC) technique to control the speed of a three-phase permanent magnet synchronous motor (PMSM). For details about FOC, see Field-Oriented Control (Motor Control Blockset).
