Use Preconfigured WSL Environment for PX4

Use a preconfigured Windows® Subsystem for Linux (WSL) distribution to set up the PX4® development environment. The distribution includes the PX4 firmware source code, toolchain, and required dependencies, enabling you to build and deploy PX4 firmware from Simulink without performing a manual PX4 environment setup.

Prerequisites

  • MATLAB® R2026a installed

  • UAV Toolbox Support Package for PX4 Autopilots installed

  • Windows Subsystem for Linux (WSL) enabled

Launch Hardware Setup

If the support package is already installed, you can start the hardware setup by opening the Add-Ons panel. To open the Add-Ons panel, click the Add-Ons icon on the left sidebar.

In the Add-Ons panel, click the Options options button next to the installed support package, and click Setup to start the hardware setup process.

Choose Ubuntu Distribution Option

In the Choose Ubuntu Distribution Option screen, select how you would like to set up your Ubuntu distribution for PX4 development.

Hardware Setup screen showing Choose Ubuntu Distribution Option with Import pre-configured Ubuntu distribution for PX4 (Recommended) selected.

Select Import pre-configured Ubuntu distribution for PX4 (Recommended) and then click Next.

Import Pre-configured PX4 Environment

In the Import Pre-configured PX4 Environment screen, download the preconfigured Ubuntu 22.04 distribution with PX4 firmware and toolchain, import it into WSL, and validate the configuration. The distribution name must be PX4-Ubuntu-22.04 for the wizard to detect it.

The preconfigured distribution tar file contains:

  • Ubuntu 22.04 LTS (Jammy) base filesystem

  • Pre-configured user simulinkpx4user with sudo access

  • WSL configuration with appendWindowsPath=false and the default user set to simulinkpx4user

  • PX4-Autopilot git repository at ~/myPX4/PX4-Autopilot checked out to the specified firmware version (for example, v1.15.4) with all submodules initialized

  • PX4 build toolchain installed via Tools/setup/ubuntu.sh (ARM cross-compiler, cmake, ninja-build, and related dependencies)

Import Pre-configured PX4 Environment screen showing Download button, To import run in drop-down, Copy button, and Validate button.

Note

If you have an existing PX4 WSL environment, save a backup before proceeding with this workflow. For more information, see Back Up and Restore WSL Distribution.

  1. Download the tar file — From the drop-down list, select Download new tar file. Click Download and select the location to save the file.

    Import Pre-configured PX4 Environment screen showing Download button, To import run in drop-down, Copy button, and Validate button.

  2. Wait for the download to complete. A confirmation message indicates that the download completed successfully.

    Import Pre-configured PX4 Environment screen showing message Download complete.

  3. Copy and run the import command

    1. From the To import, run in drop-down list, select Command Prompt or PowerShell. The import command updates based on your selection.

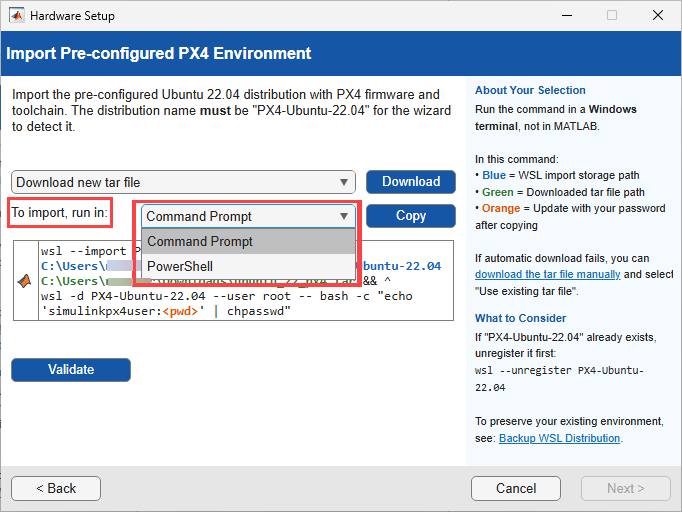

      Import Pre-configured PX4 Environment screen showing the To import run in drop-down with Command Prompt and PowerShell options.

    2. Click Copy to copy the command.

    3. Open the selected command-line application (Command Prompt or PowerShell), run the copied command, and wait for the import operation to complete.

  4. Validate — Click Validate to verify that the distribution was imported successfully. When validation passes, a confirmation message is displayed.

  5. Click Next to continue with the setup.

Install Python 3.8.2 Software

Python 3.8.2 and pySerial 3.4 are required to upload the PX4 executable on the Autopilot connected to the Windows PC.

  • If Python 3.8 is not installed on your PC, select Automatically download and install and click Next.

  • If you have already installed Python 3.8.2 (or any other version of Python 3.8 with the same minor version but different patch version, such as Python 3.8.1 or 3.8.3), select I have already installed Python 3.8.2 and click Next.

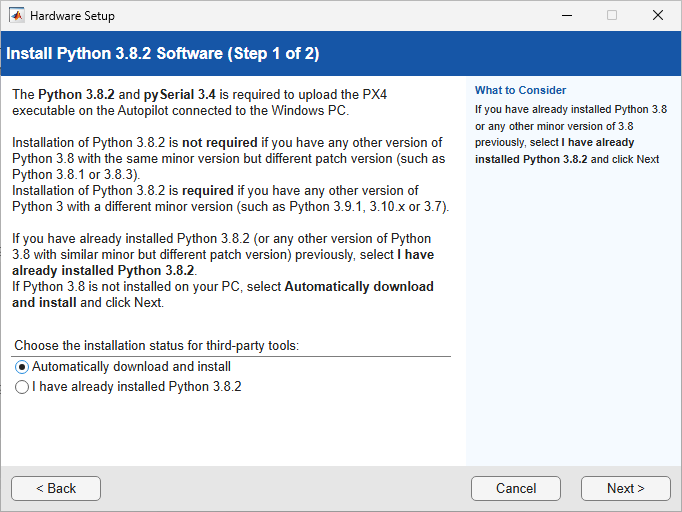

Install Python 3.8.2 Software (Step 1 of 2) screen showing Automatically download and install option selected.

Note

Installation of Python 3.8.2 is required if you have any other version of Python 3 with a different minor version (such as Python 3.9.1, 3.10.x, or 3.7).

Validate PX4 Source Code

Verify the PX4 firmware path and click Validate to confirm that the PX4 source code is compatible with Simulink®.

In the preconfigured WSL distribution, the firmware path is pre-populated.

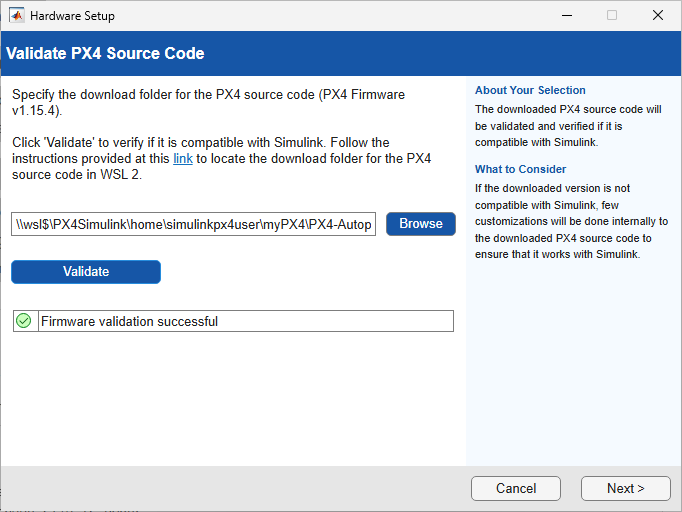

Validate PX4 Source Code screen showing firmware path and Firmware validation successful message.

When validation is successful, click Next.

Select a PX4 Autopilot and Build Target

Select your PX4 Autopilot hardware and the corresponding build target configuration.

  1. From the PX4 Autopilot drop-down list, select your autopilot board.

  2. From the Build Target drop-down list, select the build target that matches the PX4 airframe and controller configuration you want to use.

  3. Click Next.

Select a PX4 Autopilot and Build Target screen showing PX4 Pixhawk 6x selected with px4_fmu-v6x_multicopter build target.

Note

Build targets with names containing "multicopter", "Fixed-wing", or "VTOL" indicate that only the corresponding controller modules are included in the build. Targets labeled "default" include all available controllers, but selecting a default build target may lead to flash overflow when uploading the firmware.

Enable or Disable Default PX4 Controllers

Select whether to disable the default multi-copter and fixed-wing controller modules in PX4 firmware.

If you are planning to design your own controller in Simulink, select Disable multi-copter and fixed-wing controller modules in PX4 Firmware. If this checkbox is not selected, no modules of PX4 will be disabled.

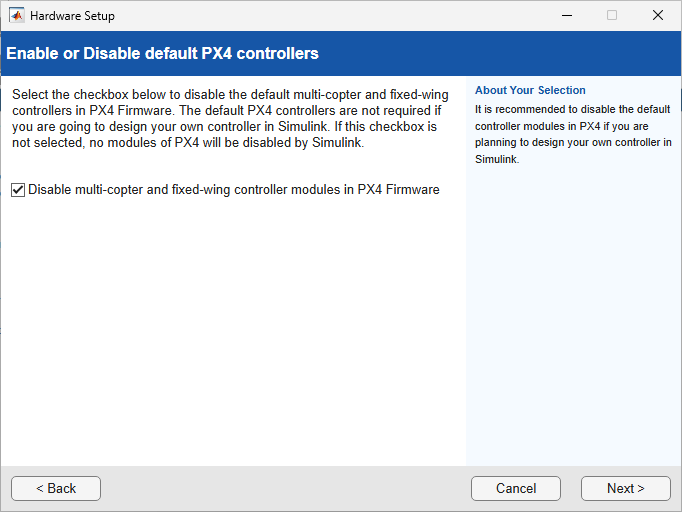

Enable or Disable default PX4 controllers screen with Disable multi-copter and fixed-wing controller modules in PX4 Firmware checkbox selected.

Click Next.

Download and Install QGroundControl

Download and install the ground control software QGroundControl (QGC) version 4.3.0. It is recommended to install QGC, as it provides necessary host drivers for the various PX4 autopilots.

Download and Install QGroundControl screen.

Click Next after installation is complete.

Build PX4 Firmware

Click Build Firmware to build the PX4 firmware based on the build target configuration you selected in the previous screen. This process can take several minutes to complete.

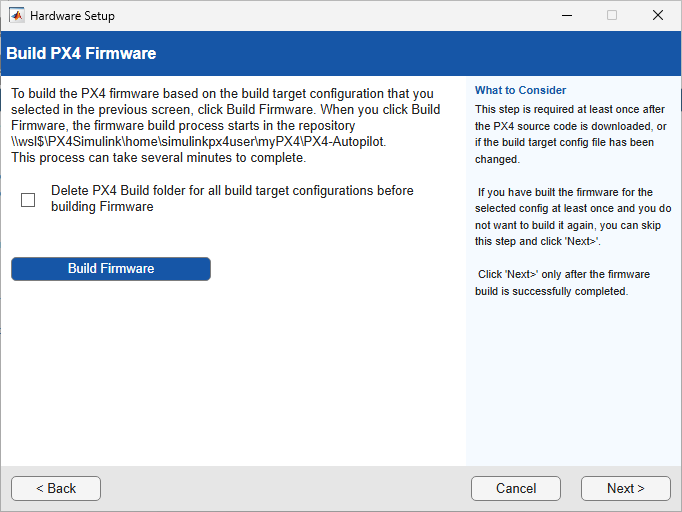

Build PX4 Firmware screen showing Build Firmware button and Delete PX4 Build folder checkbox.

Optionally, select Delete PX4 Build folder for all build target configurations before building Firmware to perform a clean build.

When the firmware build completes successfully, a confirmation message is displayed.

Build PX4 Firmware screen showing Firmware build successful message.

Click Next only after the firmware build is successfully completed.

Test Connection

This screen is displayed only if you select a PX4 Autopilot hardware board, rather than the PX4 Host Target, in the Select a PX4 Autopilot and Build Target screen.

Connect the host computer to the PX4 Autopilot board using a USB cable, then upload the firmware and verify the connection.

  1. From the Host Serial Port drop-down list, select Specify Serial Port or the detected COM port.

  2. Click Upload Firmware to upload the PX4 firmware to the board. This process might take several minutes to complete.

  3. Click Get Accelerometer data.

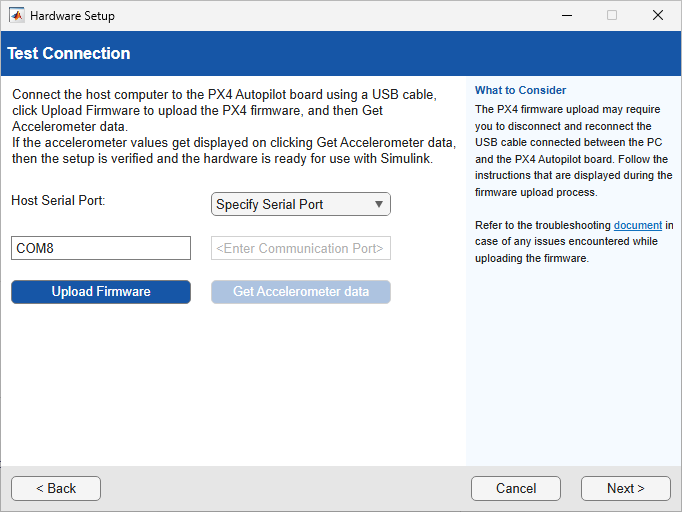

Test Connection screen showing Host Serial Port set to Specify Serial Port, Upload Firmware button, and Get Accelerometer data button.

If the accelerometer values are displayed, the setup is verified and the hardware is ready for use with Simulink.

Note

The PX4 firmware upload may require you to disconnect and reconnect the USB cable connected between the PC and the PX4 Autopilot board. Follow the instructions that are displayed during the firmware upload process.

Hardware Setup Complete

The hardware setup process is complete. The PX4 Autopilot is ready for use with Simulink model.

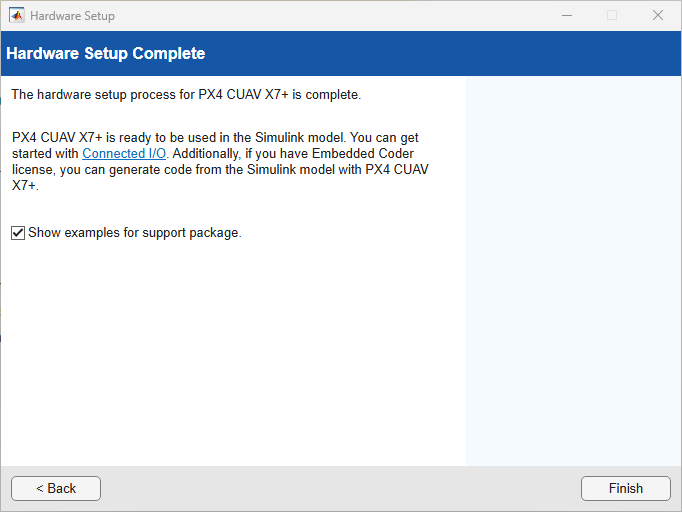

Hardware Setup Complete screen showing PX4 CUAV X7+ is ready to use.

You can get started with Connected I/O. If you have an Embedded Coder license, you can generate code from the Simulink model.

Click Finish to close the Hardware Setup wizard.

Troubleshooting

Build shows failure even though compilation is successful

The build process might report a failure even when all compilation units pass (for example, 1227/1227). This can occur when the build log includes the word Error in non-critical warnings.

Resolution: If all compilation units pass, you can treat the build as successful. Rebuild the firmware if required.

Warning: Failed to translate network path

WSL displays a warning such as wsl: Failed to translate '\\mathworks\...'. This warning occurs because WSL cannot resolve Windows network (UNC) paths.

Resolution: Ignore this warning. It does not affect functionality.

WSL distribution not detected or not accessible

The PX4 firmware path (\\wsl$\PX4-Ubuntu-22.04\...) is not accessible.

Resolution: Verify that the distribution exists:

wsl -l -v

Ensure that PX4-Ubuntu-22.04 is listed and in the Running or Stopped state.

Firmware path validation fails in Hardware Setup

Validation fails when specifying the PX4 firmware path.

Resolution:

  • Verify that the path exists in the WSL distribution.

  • Use the correct distribution name.

  • Try using lowercase: \\wsl$\PX4-Ubuntu-22.04\home\simulinkpx4user\PX4-Autopilot

WSL is not installed or PX4-Ubuntu-22.04 distribution already exists

The Hardware Setup wizard cannot detect WSL, or a distribution named PX4-Ubuntu-22.04 already exists and causes conflicts during import.

Resolution:

If WSL is not installed, open an administrator Command Prompt and run:

wsl --install --no-distribution

If a distribution named PX4-Ubuntu-22.04 already exists, unregister it before importing a new one:

wsl --unregister PX4-Ubuntu-22.04

After unregistering, restart the Hardware Setup wizard and import the distribution again.
