Two-axle dolly dimensions
The Two-Axle Dolly is one of the dollies that you can use in the 3D simulation environment. The environment is rendered using the Unreal Engine® from Epic Games®. The Dimensions section provides the dimensions of this dolly. The height dimensions are with respect to the vertical ground plane. The length and width dimensions are with respect to the origin of the dolly in the vehicle coordinate system. The origin is on the ground plane, at the projection of the hitch socket.
To add this type of dolly to the 3D simulation environment:
Add a Simulation 3D Dolly block to your Simulink® model.
In the block, set the Type parameter to

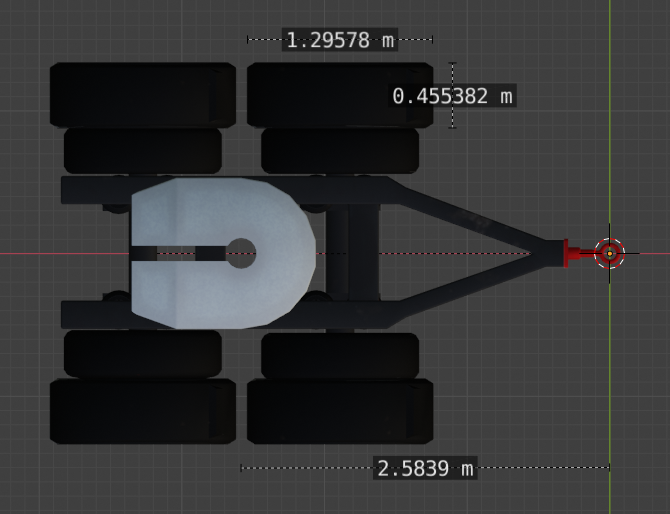

Top-down view — Dolly and tire width

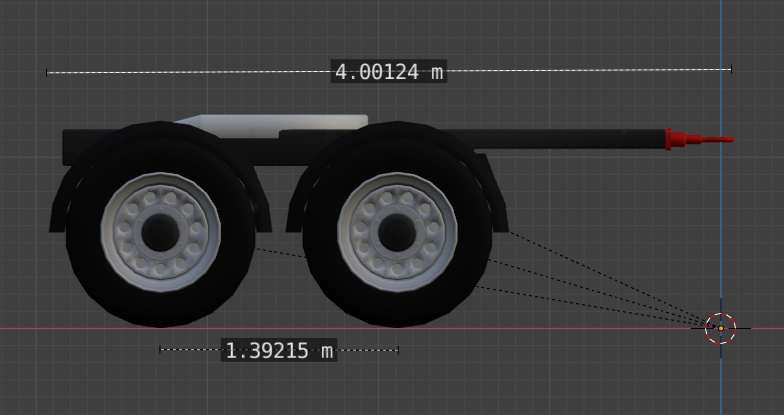

Side view — Dolly length and height

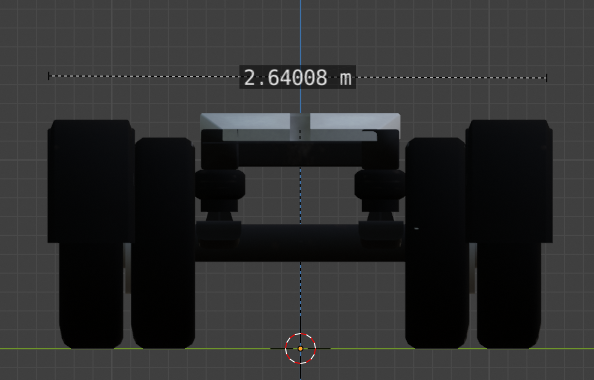

Front view — Dolly width
