This example shows how to automatically determine the geometric transformation between a pair of images. When one image is distorted relative to another by rotation and scale, use `detectSURFFeatures`

and `estimateGeometricTransform`

to find the rotation angle and scale factor. You can then transform the distorted image to recover the original image.

Bring an image into the workspace.

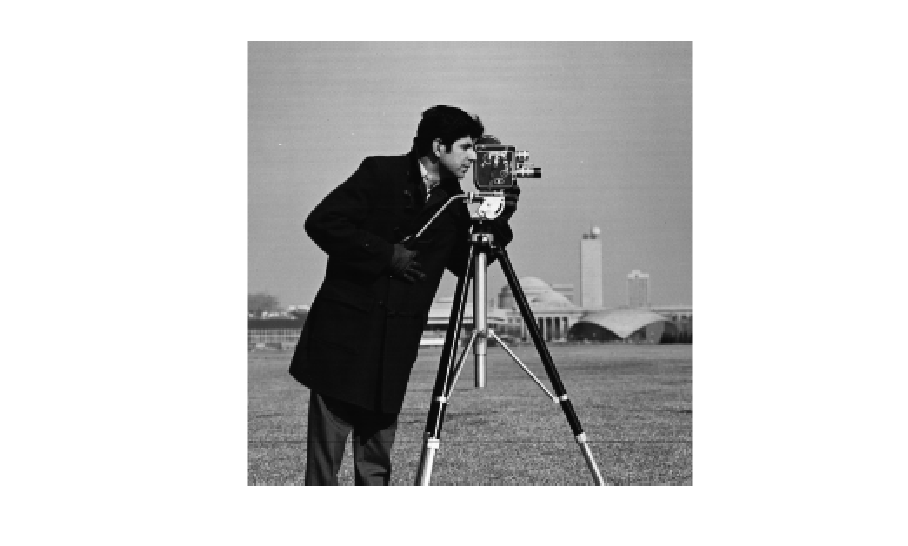

original = imread('cameraman.tif'); imshow(original); text(size(original,2),size(original,1)+15, ... 'Image courtesy of Massachusetts Institute of Technology', ... 'FontSize',7,'HorizontalAlignment','right');

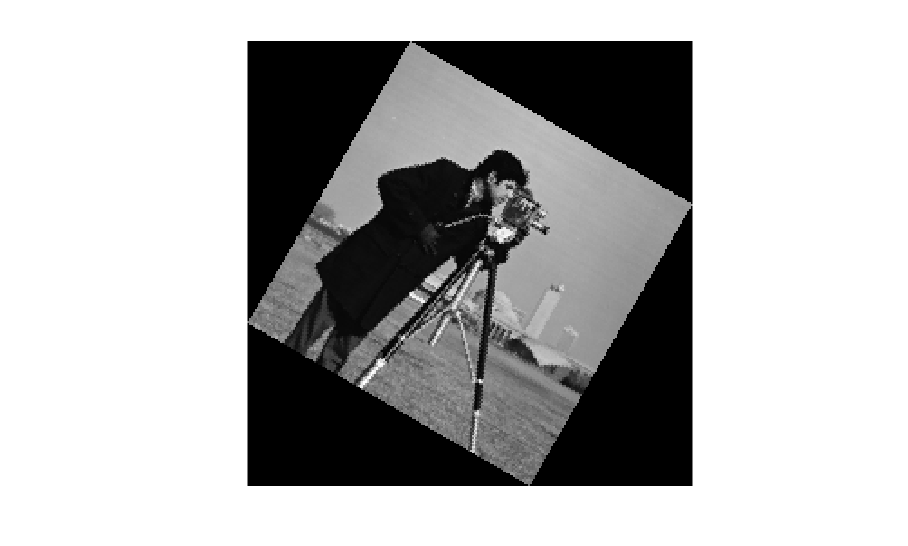

scale = 0.7; J = imresize(original, scale); % Try varying the scale factor. theta = 30; distorted = imrotate(J,theta); % Try varying the angle, theta. figure, imshow(distorted)

You can experiment by varying the scale and rotation of the input image. However, note that there is a limit to the amount you can vary the scale before the feature detector fails to find enough features.

Detect features in both images.

ptsOriginal = detectSURFFeatures(original); ptsDistorted = detectSURFFeatures(distorted);

Extract feature descriptors.

[featuresOriginal, validPtsOriginal] = extractFeatures(original, ptsOriginal); [featuresDistorted, validPtsDistorted] = extractFeatures(distorted, ptsDistorted);

Match features by using their descriptors.

indexPairs = matchFeatures(featuresOriginal, featuresDistorted);

Retrieve locations of corresponding points for each image.

matchedOriginal = validPtsOriginal(indexPairs(:,1)); matchedDistorted = validPtsDistorted(indexPairs(:,2));

Show putative point matches.

```
figure;
showMatchedFeatures(original,distorted,matchedOriginal,matchedDistorted);
title('Putatively matched points (including outliers)');
```

Find a transformation corresponding to the matching point pairs using the statistically robust M-estimator SAmple Consensus (MSAC) algorithm, which is a variant of the RANSAC algorithm. It removes outliers while computing the transformation matrix. You may see varying results of the transformation computation because of the random sampling employed by the MSAC algorithm.

[tform, inlierDistorted, inlierOriginal] = estimateGeometricTransform(... matchedDistorted, matchedOriginal, 'similarity');

Display matching point pairs used in the computation of the transformation.

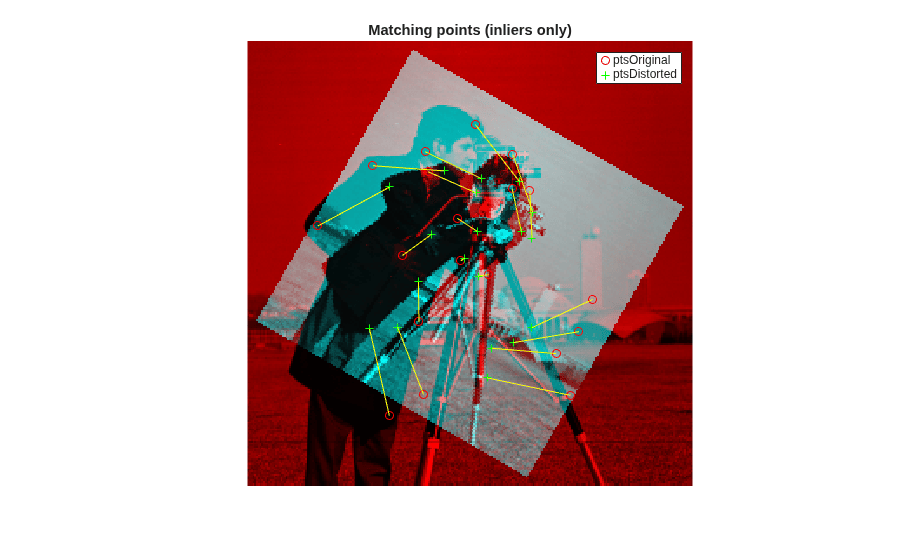

figure; showMatchedFeatures(original,distorted,inlierOriginal,inlierDistorted); title('Matching points (inliers only)'); legend('ptsOriginal','ptsDistorted');

Use the geometric transform, tform, to recover the scale and angle. Since we computed the transformation from the distorted to the original image, we need to compute its inverse to recover the distortion.

Let sc = s*cos(theta) Let ss = s*sin(theta)

Then, Tinv = [sc -ss 0; ss sc 0; tx ty 1]

where tx and ty are x and y translations, respectively.

Compute the inverse transformation matrix.

Tinv = tform.invert.T; ss = Tinv(2,1); sc = Tinv(1,1); scaleRecovered = sqrt(ss*ss + sc*sc) thetaRecovered = atan2(ss,sc)*180/pi

scaleRecovered = single 0.7010 thetaRecovered = single 30.2351

The recovered values should match your scale and angle values selected in **Step 2: Resize and Rotate the Image**.

Recover the original image by transforming the distorted image.

```
outputView = imref2d(size(original));
recovered = imwarp(distorted,tform,'OutputView',outputView);
```

Compare `recovered`

to `original`

by looking at them side-by-side in a montage.

```

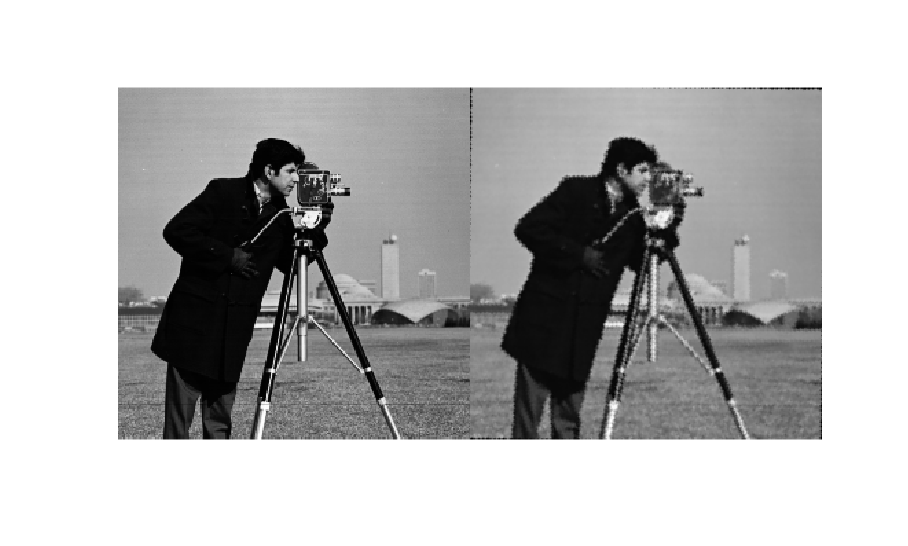

figure, imshowpair(original,recovered,'montage')
```

The `recovered`

(right) image quality does not match the `original`
