integralKernel

Define filter for use with integral images

expand all in page

    Description

    An integralKernel object describes box filters for use with integral images.

    Creation

    Syntax

    intKernel = integralKernel(bbox,weights)
    intKernel = integralKernel(bbox,weights,orientation)

    Description

    example

    intKernel = integralKernel(bbox,weights) creates an upright box filter from bounding boxes, bbox, and their corresponding weights, weights. The bounding boxes set the BoundingBoxes property and the weights set the Weights property.

    For example, a conventional filter with the coefficients:

    and two regions:

    region 1: x=1, y=1, width = 4, height = 2
    region 2: x=1, y=3, width = 4, height = 2
    can be specified as
    boxH = integralKernel([1 1 4 2; 1 3 4 2],[1, -1])

    example

    intKernel = integralKernel(bbox,weights,orientation) creates a box filter with an upright or rotated orientation. The specified orientation sets the Orientation property.

    Properties

    expand all

    Bounding boxes, specified as a 4-element vector of the form [x,y,width, height] representing a single bounding box or an M-by-4 matrix representing M bounding boxes. The bounding boxes define the filter. The (x,y) coordinates represent the top-most corner of the kernel. The (width, height) elements represent the width and height accordingly. Specifying the bounding boxes as an M-by-4 matrix is particularly useful for constructing Haar-like features composed of multiple rectangles.

    Sums are computed over regions defined by BoundingBoxes. The bounding boxes can overlap. See Define an 11-by-11 Average Filter for an example of how to specify a box filter.

    Weights, specified as an M-element numeric vector containing a weight for each bounding box. The weights are used to define the coefficients of the filter.

    Filter coefficients, specified as a numeric value.

    Filter center, specified as [x,y] coordinates. The filter center represents the center of the bounding rectangle. It is calculated by halving the dimensions of the rectangle. For even dimensional rectangles, the center is placed at subpixel locations. Hence, it is rounded up to the next integer.

    For example, for this filter, the center is at [3,3].

    These coordinates are in the kernel space, where the top-left corner is (1,1). To place the center in a different location, provide the appropriate bounding box specification. For this filter, the best workflow would be to construct the upright kernel and then call the rot45 method to provide the rotated version.

    Filter size, specified as a 2-element vector. The size of the kernel is computed to be the dimensions of the rectangle that bounds the kernel. For a single bounding box vector [x,y,width, height], the kernel is bounded within a rectangle of dimensions [(width+height) (width+height)-1].

    For cascaded rectangles, the lowest corner of the bottom-most rectangle defines the size. For example, a filter with a bounding box specification of [3 1 3 3], with weights set to 1, produces a 6-by-5 filter with this kernel:

    Filter orientation, specified as 'upright' or 'rotated'. When you specify the orientation as 'rotated', the (x,y) components refer to the location of the top-left corner of the bounding box. Also, the (width,height) components refer to a 45-degree line from the top-left corner of the bounding box.

    Usage

    Computing an Integral Image and Using it for Filtering with Box Filters

    The integralImage function together with the integralKernel object and integralFilter function complete the workflow for box filtering based on integral images. You can use this workflow for filtering with box filters.

    • Use the integralImage function to compute the integral images

    • Use the integralFilter function for filtering

    • Use the integralKernel object to define box filters

    The integralKernel object allows you to transpose the filter. You can use this to aim a directional filter. For example, you can turn a horizontal edge detector into vertical edge detector.

    Object Functions

    rot45Rotate upright kernel clockwise by 45 degrees
    transposeTranspose integral kernel

    Examples

    collapse all

    Open Live Script
     avgH = integralKernel([1 1 11 11], 1/11^2);
    Open Live Script
    ydH = integralKernel([1,1,5,9;1,4,5,3], [1, -3]);

    You can also define this filter as integralKernel([1,1,5,3;1,4,5,3;1,7,5,3], [1, -2, 1]);|. This filter definition is less efficient because it requires three bounding boxes.

    Visualize the filter.

    ydH.Coefficients
    ans = 9×5

     1     1     1     1     1
     1     1     1     1     1
     1     1     1     1     1
    -2    -2    -2    -2    -2
    -2    -2    -2    -2    -2
    -2    -2    -2    -2    -2
     1     1     1     1     1
     1     1     1     1     1
     1     1     1     1     1
    Open Live Script

    Create the filter.

    K = integralKernel([3,1,3,3;6 4 3 3], [1 -1], 'rotated');

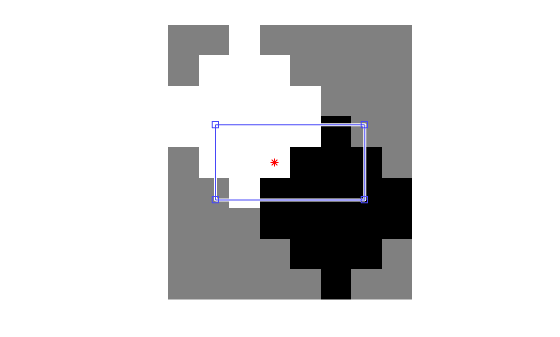

    Visualize the filter and mark the center.

        imshow(K.Coefficients, [], 'InitialMagnification', 'fit');
    hold on;
    plot(K.Center(2),K.Center(1), 'r*');

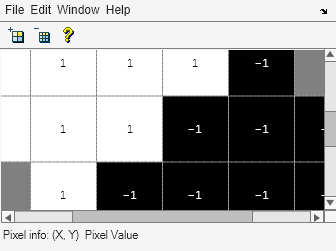

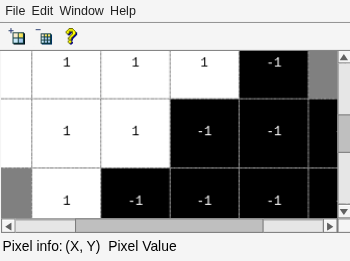

    impixelregion;

    Open Live Script

    Read and display the input image.

       I = imread('pout.tif');
   imshow(I);

    Compute the integral image.

       intImage = integralImage(I);

    Apply a 7-by-7 average filter.

       avgH = integralKernel([1 1 7 7], 1/49);
   J = integralFilter(intImage, avgH);

    Cast the result back to the same class as the input image.

       J = uint8(J);
   figure
   imshow(J);

    References

    [1] Viola, Paul, and Michael J. Jones. “Rapid Object Detection using a Boosted Cascade of Simple Features”. Proceedings of the 2001 IEEE® Computer Society Conference on Computer Vision and Pattern Recognition. Vol. 1, 2001, pp. 511–518.

    Version History

    Introduced in R2012a
