# scatteringFeatures

## Syntax

## Description

concatenates the values of the dictionary of JTFS coefficients `smat`

= scatteringFeatures(`jtfn`

,`cfs`

)`cfs`

along the path dimension. `cfs`

is the output of `scatteringTransform`

.

specifies options using one or more name-value arguments. You can add these arguments to
either of the previous input syntaxes. For example, to exclude the second-order time
scattering coefficients with spin-up wavelets from the output, set
`smat`

= scatteringFeatures(___,`Name=Value`

)`ExcludeCoefficients`

to `"SpinUp"`

.

**Note**

Raw Data Input name-value
arguments are valid only for `x`

.

## Examples

### Obtain JTFS Coefficients as a Tensor

Create a single-precision random signal with three channels and 1024 samples representing one batch. Save the signal as a `dlarray`

in `"CTB"`

format.

```
nchan = 3;
nsam = 1024;
nbatch = 1;
sig = single(randn([nchan nsam nbatch]));
x = dlarray(sig,"CTB");
```

Create a JTFS network appropriate for the signal. Set the filter data type of the network to `"single"`

.

jtfn = timeFrequencyScattering(SignalLength=nsam, ... FilterDataType="single");

Use the `scatteringTransform`

function to obtain the JTFS transform of the signal. Specify a time oversampling factor of 1 and exclude the `"S1SpinUpFreqLowpass"`

coefficients.

tosf = 1; excl = "S1SpinUpFreqLowpass"; outCFS = scatteringTransform(jtfn,x, ... TimeOverSamplingFactor=tosf, ... ExcludeCoefficients=excl)

outCFS = dictionary (string ⟼ cell) with 4 entries: "S1FreqLowpass" ⟼ {1×6×16×3 dlarray} "SpinUp" ⟼ {35×6×16×3 dlarray} "SpinDown" ⟼ {35×6×16×3 dlarray} "U2JointLowpass" ⟼ {7×6×16×3 dlarray}

Use the same input arguments with the `scatteringFeatures`

function to obtain the JTFS coefficients as a tensor. Confirm the tensor is an unformatted `dlarray`

and the underlying data type is single precision.

smat = scatteringFeatures(jtfn,x, ... TimeOverSamplingFactor=tosf, ... ExcludeCoefficients=excl); size(smat)

`ans = `*1×4*
78 6 16 3

dims(smat)

ans = 0×0 empty char array

underlyingType(smat)

ans = 'single'

Concatenate the dictionary values of `outCFS`

along the first (path) dimension. Confirm the result is equal to the tensor `smat`

.

dValues = values(outCFS); dValuesConCat = cat(1,dValues{:}); max(abs(smat(:)-dValuesConCat(:)))

ans = 1×1 single dlarray 0

### Apply Normalization Methods to JTFS Coefficients

Load a signal. Create a JTFS network appropriate for the signal.

```
load noisdopp
sig = noisdopp;
len = numel(sig);
jtfn = timeFrequencyScattering(SignalLength=len);
```

Use the `scatteringFeatures`

function to obtain the JTFS transform of the signal as a tensor. The result is a 3-D array with format path-by-frequency-by-time.

smatOrig = scatteringFeatures(jtfn,sig); size(smatOrig)

`ans = `*1×3*
83 6 8

`"zscore"`

Normalization

Use the `scatteringFeatures`

function to apply the `"zscore"`

normalization method to the JTFS coefficients. When you specify this method, `scatteringFeatures`

normalizes the coefficients by subtracting the mean and dividing by the standard deviation across the frequency and time dimensions. For the standard deviation, the function uses the default weight of 0.

smatZscore = scatteringFeatures(jtfn,sig, ... Normalization="zscore");

Obtain the mean across the second (frequency) and third (time) dimensions of the array. The result is a vector whose length is the number of paths. Each vector element is the mean of the normalized JTFS coefficients on the corresponding path. Confirm the largest mean is approximately 0.

mn = mean(smatZscore,[2 3]); size(mn)

`ans = `*1×2*
83 1

max(abs(mn))

ans = 1.4063e-15

Confirm the standard deviation of the normalized coefficients on each path is equal to 1.

stdCoef = std(smatZscore,[],[2 3]); [min(stdCoef) max(stdCoef)]

`ans = `*1×2*
1.0000 1.0000

Use the `zscore`

(Statistics and Machine Learning Toolbox) function to obtain the z-scores of the original coefficients across the frequency and time dimensions. Confirm they are equal to the normalized coefficients.

smatOrigZscore = zscore(smatOrig,0,[2 3]); max(abs(smatOrigZscore(:)-smatZscore(:)))

ans = 0

`"log"`

Normalization

Use the `scatteringFeatures`

function to apply the `"log"`

normalization method to the JTFS coefficients. When you specify the `"log"`

method, `scatteringFeatures`

first applies a logarithmic transformation to the coefficients and then obtains the z-score.

smatLog = scatteringFeatures(jtfn,sig, ... Normalization="log");

A quantile-quantile plot shows quantiles of a data set plotted versus the theoretical quantile values from a Gaussian distribution. If the distribution of the data set is normal, then the data plot appears linear.

Use the `qqplot`

(Statistics and Machine Learning Toolbox) function to display quantile-quantile plots of the raw and normalized coefficients. The `"log"`

normalization method has transformed the coefficients distribution closer to a Gaussian distribution.

```

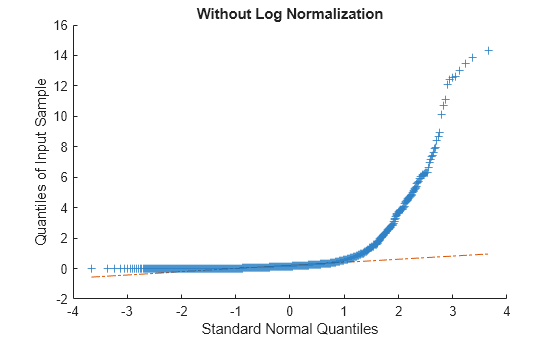

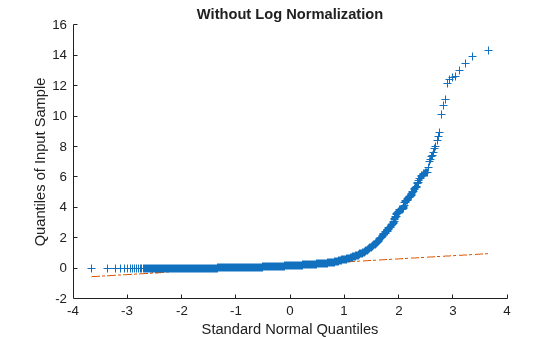

qqplot(smatOrig(:))
title("Without Log Normalization")
```

```
figure

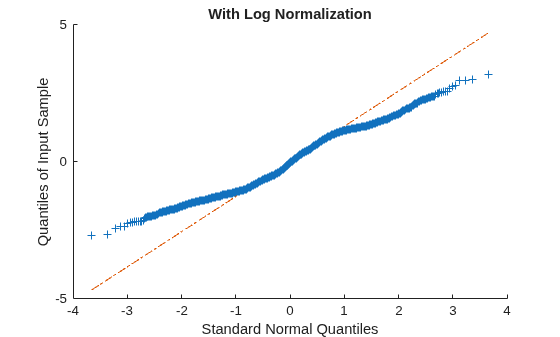

qqplot(smatLog(:))
title("With Log Normalization")
```

## Input Arguments

`jtfn`

— Joint time-frequency scattering network

`timeFrequencyScattering`

object

Joint time-frequency scattering network, specified as a `timeFrequencyScattering`

object.

`x`

— Input data

numeric array | `dlarray`

object

Input data, specified as a formatted or unformatted `dlarray`

(Deep Learning Toolbox) object
or a numeric array. If `x`

is a formatted `dlarray`

,
it must be in `"CBT"`

format. If `x`

is an
unformatted `dlarray`

, it must be compatible with
`"CBT"`

format and you must set
`DataFormat`

.

If `x`

is 2-D, the `scatteringFeatures`

function assumes the first dimension is time and the columns of `x`

are separate channels. If `x`

is 3-D, the dimensions of
`x`

are time-by-channel-by-batch.

If

`x`

is a vector or unformatted`dlarray`

, the number of samples in`x`

must match the`SignalLength`

property of`jtfn`

.If

`x`

is a numeric or unformatted matrix or a 3-D array, the number of rows in`x`

must match`SignalLength`

.If

`x`

is a formatted`dlarray`

, the length of the time dimension must match`SignalLength`

.

**Data Types: **`single`

| `double`

`cfs`

— JTFS coefficients

`dictionary`

object

JTFS coefficients, specified as a `dictionary`

object.
`cfs`

is the output of
`scatteringTransform`

.

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

**Example: **```
jtfs =
scatteringFeatures(jtfn,x,DataFormat="CBT",FrequencyAverage="global")
```

specifies
the format of the unformatted `dlarray`

`x`

as `"CBT"`

and takes the mean along the frequency
dimension for all JTFS coefficients.

**All Inputs**

`ExcludeCoefficients`

— Coefficients to exclude

`''`

(default) | string vector | cell array of character vectors

Coefficients to exclude from the JTFS transform, specified as a string vector or cell array of character vectors. You can specify these coefficients:

`"S1FreqLowpass"`

— First-order time scattering coefficients filtered with the frequency lowpass filter`"S1SpinUpFreqLowpass"`

— First-order time scattering coefficients with the spin-up frequency wavelets`"SpinUp"`

— Second-order time scattering coefficients with spin-up wavelets`"SpinDown"`

— Second-order time scattering coefficients with spin-down wavelets`"U2JointLowpass"`

— Second-order time scattering coefficients filtered with joint lowpass filters

**Example: **```
jtfs =
scatteringFeatures(cfs,ExcludeCoefficients=["S1FreqLowpass"
"U2JointLowpass"])
```

`Normalization`

— Normalization method

`"none"`

(default) | `"zscore"`

| `"log"`

Normalization method for JTFS coefficients, specified as one of the following:

`"none"`

— Do not normalize the coefficients.`"zscore"`

— Subtract the mean and divide by the standard deviation across the frequency and time dimensions. For the standard deviation, the`scatteringFeatures`

function uses the default weight of 0.`"log"`

— Logarithmic transformation followed by`"zscore"`

. This method transforms the JTFS coefficients distribution closer to a Gaussian distribution [1].

**Raw Data Input**

`TimeAverage`

— Time-averaging option

`"local"`

(default) | `"global"`

Time-averaging option, specified as one of these:

`"local"`

—`scatteringFeatures`

uses the lowpass filter when obtaining the JTFS coefficients.`"global"`

—`scatteringFeatures`

takes the mean along the time dimension for all JTFS coefficients.

`FrequencyAverage`

— Frequency-averaging option

`"local"`

(default) | `"global"`

Frequency-averaging option, specified as one of these:

`"local"`

—`scatteringFeatures`

uses the lowpass frequency filter when obtaining the JTFS coefficients.`"global"`

—`scatteringFeatures`

takes the mean along the frequency dimension for all JTFS coefficients.

`TimeOversamplingFactor`

— Time oversampling factor

`0`

(default) | nonnegative integer

Time oversampling factor, specified as a nonnegative integer. The factor specifies how much the coefficients are oversampled in time with respect to the critically downsampled values. The factor is on a base-2 logarithmic scale.

If you increase the oversampling factor, the computational costs and memory requirements of the scattering transform also increase.

**Data Types: **`single`

| `double`

`FrequencyOversamplingFactor`

— Frequency oversampling factor

`0`

(default) | nonnegative integer

Frequency oversampling factor, specified as a nonnegative integer. The factor specifies how much the coefficients are oversampled in frequency with respect to the critically downsampled values. The factor is on a base-2 logarithmic scale.

If you increase the oversampling factor, the computational costs and memory requirements of the scattering transform also increase.

**Data Types: **`single`

| `double`

`DataFormat`

— Data format

character vector | string scalar

Data format of `x`

, specified as a character vector or string
scalar. This name-value argument is valid only if `x`

is an
unformatted `dlarray`

. If `x`

is not a
`dlarray`

, `DataFormat`

is ignored.

Each character in this argument must be one of these labels:

`"C"`

— Channel`"B"`

— Batch observations`"T"`

— Time

`DataFormat`

can be any permutation of
`"CBT"`

.

**Data Types: **`char`

| `string`

## Output Arguments

`smat`

— Joint time-frequency scattering transform

array | unformatted `dlarray`

object

Joint time-frequency scattering transform, returned as an array or an unformatted
`dlarray`

object. If `scatteringTransform`

returns
the dictionary of JTFS coefficients `outCFS`

using a specific set of
input arguments, then `scatteringFeatures`

returns the concatenation
of those dictionary values using the same arguments.

## References

[1] Lostanlen, Vincent, Christian
El-Hajj, Mathias Rossignol, Grégoire Lafay, Joakim Andén, and Mathieu Lagrange.
“Time–Frequency Scattering Accurately Models Auditory Similarities between Instrumental
Playing Techniques.” *EURASIP Journal on Audio, Speech, and Music
Processing* 2021, no. 1 (December 2021): 3. https://doi.org/10.1186/s13636-020-00187-z

## Extended Capabilities

### GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

The `scatteringFeatures`

function
fully supports GPU arrays. To run the function on a GPU, specify the input data as a `gpuArray`

(Parallel Computing Toolbox). For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

## Version History

**Introduced in R2024b**
