Multibody Contact Force Block Examples in Simscape Multibody

Version 25.2.1.7 (6.64 MB) by Steve Miller
Examples demonstrating contact force modeling in Simscape Multibody
4.0
(2)
666 Downloads
Updated 13 Jan 2026
View License on GitHub
This repository contains a set of examples that demonstrate the Spatial Contact Force block and Planar Contact Force block. The examples cover:
  • Solid-to-solid contact between parameterized solids like bricks, spheres, and cylinders
  • Contact between CAD geometry including STEP files.
  • Point Cloud definition for efficient contact modeling of complex shapes.

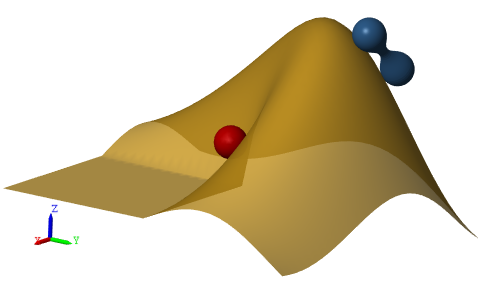

  • Grid Surface modeling for efficient contact modeling with terrain.
  • Custom force law definition including collision and friction forces.
Use the "Download from GitHub" button above to access files compatible with the current release of MATLAB.
You can also try these examples in MATLAB Online.
Use the links below to access files compatible with earlier releases of MATLAB.
Open the project file Spatial_Contact_Force_Examples.prj to get started.
To learn more about contact modeling with Simscape Multibody, please visit:
Try these free, hands-on tutorials to learn how to use Simscape:
See also:
This submission uses the S^2 Sampling Toolbox Anton Semechko (2022). Suite of functions to perform uniform sampling of a sphere (https://github.com/AntonSemechko/S2-Sampling-Toolbox), GitHub. Retrieved March 24, 2022.

Cite As

Steve Miller (2026). Multibody Contact Force Block Examples in Simscape Multibody (https://github.com/mathworks/Spatial-Contact-Force-Examples-Simscape-Multibody/releases/tag/25.2.1.7), GitHub. Retrieved .

MATLAB Release Compatibility
Created with R2025b
Compatible with R2020a to R2025b
