TEQCPLOT

version 1.0.0.0 (8.56 KB) by Jim Hedfors
Read and plot TEQC report files

3 Downloads

Updated 16 Jun 2006

No License

TEQC is the Toolkit for GPS/GLONASS/SBAS Data used to solve many pre-processing problems with GPS, GLONASS, and SBAS data.
TEQC stands for Translation, Editing, and Quality Check.

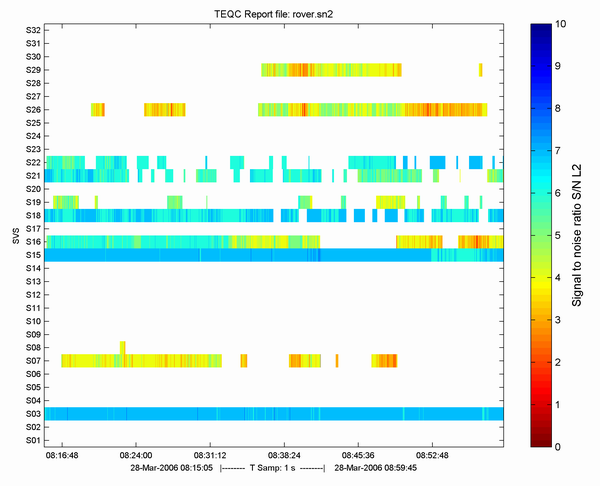

TEQCPLOT(FILENAME) returns the content of a TEQC reportfile in a figure (and a struct variable). Input argument FILENAME is optional.

Valid TEQC report files are:

FORMAT DESCRIPTION
*.sn1 Signal to noise ratio L1
*.sn2 Signal to noise ratio L2
*.iod Derivative of ionospheric delay observable (m/s)
*.ion Ionospheric delay observable (m)
*.mp1 Multipath Carrier L1
*.mp2 Multipath Carrier L2
*.azi Satellite azimuthal data (degrees)
*.ele Satellite elevation data (degrees)

Jim Hedfors, Uppsala University, 2005

Comments and Ratings (17)

mx s

Hello,
Am trying to plot my files but getting an error {Subscript indices must either be real positive integers or logicals}. 'Error in teqcplot (line 51) SAT(n,sats(2:end))=str2num(A{i});'.

Please assist on what to do
Thanks

Hi,
I tried this mfile and it works fine with the example files (Ball1830.mp1) but doesn't work with others *.mp1 files. I had the same error messages of wg.

??? Cell contents reference from a non-cell array object.

Error in ==> teqcplot at 44
sats=str2num(A{i})

Any idea to fix it?
Thanks a lot!

Hi,

I am trying to download this file, but the browser just keeps on loading and does not starts the download. I have tried it with both Chrome and Internet Explorer.

Please help in downloading this file?
Kindest regards,

wenwu dai

good

Changyong

cao qi

wg

when run with 7.10.0(2010a),using the "rover.sn2"

??? Cell contents reference from a non-cell array object.

Error in ==> teqcplot at 44
sats=str2num(A{i})

Yuriy

Some update for my previous message. This script is correct but it works in old version of Matlab only: I've tested it successfully in 7.0.4

Yuriy

The script seems very useful, but there are some mistakes prevent its using. Its a pity....

When run with 7.8.0 (2009a) using the included "shanding.sn2" :

??? Cell contents reference from a non-cell array object.

Error in ==> teqcplot at 44
sats=str2num(A{i});

When run with 7.8.0 (2009a) using the included "rover.sn2" :

??? Cell contents reference from a non-cell array object.

Error in ==> teqcplot at 44
sats=str2num(A{i});

adam steer

datelabel.m, from Robert Algrem: http://cims.nyu.edu/~almgren/mysql/datelabel.m

...works ok as a replacement for dateaxis. comment out the dateaxis line and replace with datelabel(1)

very nice!

Peter Steigenberger

dateaxis from Financial Toolbox is required!!

Gustavo Juarez

Necesito el software para trabajar en un proyecto de investigacion para un trabajo de maestria

jnan sxiang

very good ,but
??? Subscripted assignment dimension mismatch.
Error in ==> teqcplot at 52
SAT(n,sats(2:end))=str2num(A{i});
why??
thanks

P B

Updates

1.0.0.0

Renamed function from TEQC to TEQCPLOT to avoid mixing with the original TEQC toolkit.
Also, included an example of a TEQC report file.
