version 1.0.0.0 (97.8 KB) by
Carlos Adrian Vargas Aguilera

Smooths a matrix (with/without NaN's) via recursive moving average method and eliminates data gaps.

MOVING_AVERAGE(X,F) smooths the vector data X with a boxcar window of size 2F+1, i.e., by means of averaging each element with the F elements at his right and the F elements at his left. The extreme elements are also averaged but with less data, obviously. Leaving the edges intact. The method is really fast.

MOVING_AVERAGE2(X,M,N) smooths the matrix X with a boxcar window of size (2M+1)x(2N+1), i.e., by means of averaging each element with its surrounding elements that fits in the mentioned box centered on it. This one is also really fast. The elements at the edges are averaged too, but the corners are left intact.

NANMOVING_AVERAGE(X,F) or NANMOVING_AVERAGE(X,F,1) accept NaN's elements in the vector X; the latter interpolates also those NaN's elements surrounded by numeric elements.

NANMOVING_AVERAGE2(X,M,N) or NANMOVING_AVERAGE2(X,M,N,1) accept elements NaN's in the matrix X; the latter interpolates also those NaN elements surrounded by numeric elements.

[ New simple GAP filling ]:

SMOOTH_MAVERAGE(X,M,N,IND) this one smooths only the X(IND) elements. ignoring NaNs. This can be used to elimante GAPS on your data.

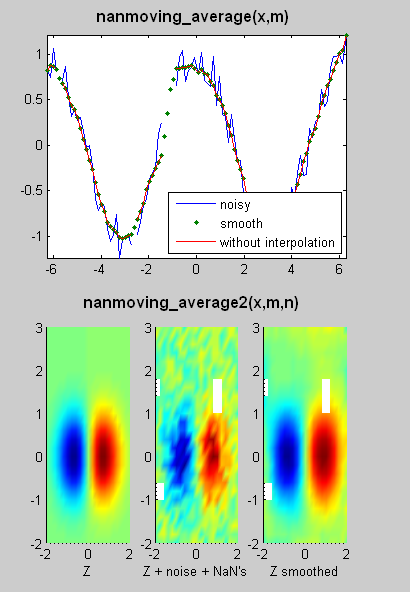

Each M-files has an example (see the screenshot).

Check below to see the CHANGES on v3.1.

Note: Looking the 2 dimensional code from MOVING_AVERAGE2.M (and RUNMEAN for some hints) somebody can easily make an N-dimensional MA. Would you?

Carlos Adrian Vargas Aguilera (2021). moving_average v3.1 (Mar 2008) (https://www.mathworks.com/matlabcentral/fileexchange/12276-moving_average-v3-1-mar-2008), MATLAB Central File Exchange. Retrieved .

Created with
R2007b

Compatible with any release

**Inspired:**
filt2 2D geospatial data filter, mvaverage, ndnanfilter.m

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!Create scripts with code, output, and formatted text in a single executable document.

Micke Malmströmsixie yuAJIl KottayilI would like to get a moving average function dealing with nan values

EricCarlos,

I like your function moving_average, very easy to use. I have data which has small to large time gaps and I don't want to filter across the gaps. I could break the vector up at each gap but that would mean work. Any suggestion on how to handle something like this?

almog shalomVery useful foe me (mainly for plotting)

PeterKuo-HsienDear all, I'm dealing with gap filling on weather measurements which the NaN should be filled based on the time window of several days.(i.e., neighborhood hour of several days).

For example, one NaN at 5pm will be replaced by the mean value in the neighborhood hour of neighborhood several days. (let's say 4, 5 and 6pm of neighborhood 5 days)

Here is the bone of question I like to deal with:

values = rand(1,1000)';

fake_NaN = floor(rand(1,300)'*1000);

values(fake_NaN) = NaN;

for i = 1:length(values)

n = 24 * i * (1:5)

having_nan_index = find(isnan(values))

new_values = nanmean(values(having_nan_index * n-1:having_nan_index*n+1))

:

:

Something like that

:

:

If you have any solutions or advices, please feel free to let me know. Thanks, Michael

hajer gharsallaouihi Carlos i have send you an email about the difficulties in programmation of the recursive moving coverage have you any idea about this issue? any help please? thanks by advance

Edgar Guevara CodinaIt's adequate por postprocessing of spectroscopic signals, quite useful indeed.

Carlos Adrian Vargas AguileraCommon Aslak, you are searching for FLEAS instead of BUGS... But, ok, USERS: BEWARE of OUTLIERS and LARGE MEANS when using CUMSUM runmean method! Rather use: NDNANFILTER :)

Carlos Vargas

Aslak GrinstedHi Carlos. I meant it as a constructive criticism. The point is that the error is unnecessary, easily avoidable, and there is no speed advantage. You are right that in the specific example the error is not very big (although you make the mistake of comparing it to the mean rather than the standard deviation). However, just because the error is small in that case does not mean it is for all series. Try for example this:

m=3;

n=100000;

x=randn(n,1); x(1)=1e100;

The problem is that the outlier gives rise to huge errors in the whole smoothed series, and not just within the window.

Carlos Adrian Vargas AguileraI forget the rating for Aslak's example (1 star): he is comparing errors of precisions 1e-9=0.000000001 and 1e-13~eps. Yes 10,000 times greater, but for values with 1,000 mean which is 1'000,000'000,000 greater than the greater error. That is a great little error isn't it?

Carlos Adrian Vargas AguileraYes, Aslak, you are right, for that reason I left commented the normal recursive way ('s' in your example).

The problem with cumsum is with the last values which became incredibly large and 'rounding' problems, I guess, appear (eliminantig the large mean, 1000, the error is reduced). But, this is only a method and the user can choose which he likes more.

For example, now I prefer to use my new function NDNANFILTER here at the FEx.

Cheers!

Aslak GrinstedNice code but ... The cumsum trick to calculate moving averages can result in unneccarily large errors under certain conditions:

* The mean is very different from zero and the series is very long.

Here's a small test that illustrates the problem by using 3 different approaches of calculating the moving average. It shows that the 'cumsum' method has errors that are more than 10000 times greater than the errors from the filter method. There is no real speed difference.

m=10;

n=300000;

x=randn(n,1)+1000; %think for example atmospheric pressure.

tic

s=nan(length(x)-m+1,1);

for ii=1:length(s)

s(ii)=mean(x(ii+(0:m-1)));

end

slowtime=toc

tic;

c=[0;cumsum(x)];

c=(c(m+1:end)-c(1:end-m))/m;

cumsumtime=toc

cumsumerror=sqrt(mean((c-s).^2))

tic;

flt=ones(m,1)/m;

f=filter2(flt,x,'valid');

filtertime=toc

filtererror=sqrt(mean((f-s).^2))

slowtime =

9.4732

cumsumtime =

0.041549

cumsumerror =

2.6456e-009

filtertime =

0.033685

filtererror =

1.4151e-013

T VWell commented

Check I/O numbers and errors

vectorized

quick

so: nice

Carlos Adrián Vargas AguileraFound a harmless bug on MOVING_AVERAGE, line 75: extra comma in the warning! ja!

K RR K: In fact, those are limitations of this moving average, but the problem with the edges are common in filtering theory. The author provides us an idea and you?

BTW: that GAP filling is what i was looking for. Thanks!

R KThere are some problems with this routine. It doesnt work for matrixes smaller than the desired window size and it doesnt work where in areas where a full window cannot be applied.

Gomes GlennUsed moving_average.

It works wonderfully. Thanks.

Carlos Adrián Vargas AguileraIt does it Ian. moving_average2(x,0,n) smooths the rows, and moving_average2(x,m,0) the columns.

The author.

Ian HowatThanks. I would recommend adding array-operation capabilities (ie. smooth each column or row recursively).

Kyoung ho ChongSimple, optimizing code, thank you!!

Roger LewWorks exactly as described. Great find.

Ron MeyerThanks for this nice set of functions. Works excellent.

Igor MilicevicThank you very much, it works excellent.

Greetings

Igor

Carlos Adrián Vargas AguileraHello, Igor. Yes, I hadn't noticed NANMEAN was a function of stat toolbox. I already changed it for NAN_MEAN. It is a vector average ignoring NaN. In about 1 day it would be updated.

Igor MilicevicI am having trouble with the function nanmean , which is not defined. Can somebody help me, please?

Thanks in advance.

Igor Milicevic

Carlos Adrián Vargas AguileraHello Sam! Thank you for your comments. I had no problem with the example, you should get the screenshot above (without the holes), maybe it's your matlab release but the code is really simple and should work on others.

About the F, to get a centered average around an element, the number of elements to average should be odd, so 2F+1, and in this way F is the half-width of the window (check the Description above). Similar for the m,n on 2D.

Sam KhanjarHi Carlos, thank you so much for your interesting matlab code. I have one doubt about the window size in 1D moving average. The size of the window is '2F+1' can you please tell me what 'F' stand for?

Also I have tried to get the 2D moving average to work with your supplied example, i couldn't get it to work.

R. CastroVery usefull. Siyi: I think the loops on this programs are faster than any box FILTER, it's easier to use and also work with NaN's!

Siyi DengIt is functional, but I'd still prefer FILTER over for loops.

Jonathan ZenaI cant believe it was that easy, thanks!
