​Renewable Energy Integration Design with Simscape

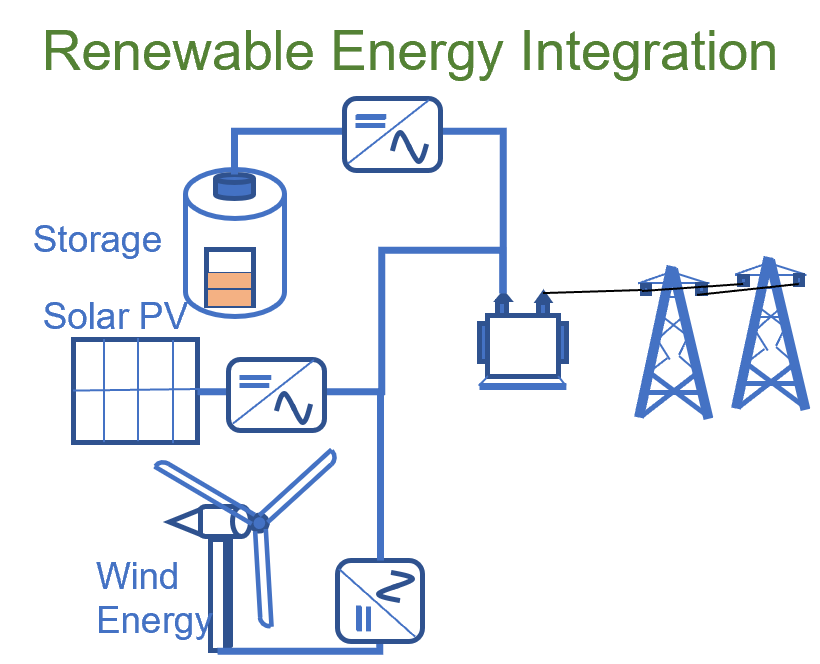

The repository provides simulation models that aid the operation of power systems with high penetration of renewable energy sources.

72 Downloads

Updated 25 Jan 2023

From GitHub

View License on GitHub

Renewable Energy Integration Design with Simscape

This repository provides design solutions for the operation of power systems with high penetration of renewable energy sources. The developed models comply with current IEEE/IEC and national grid standards.

Performance Evaluation of Grid Forming Battery Energy Storage Systems in Solar PV Plants

This project evaluates the capabilities of a grid-forming (GFM) battery energy storage system (BESS) in maintaining a stable power system with high penetration of solar photovoltaic (PV). Use this model to assess the dynamic performance of the BESS connected to the PV plant during normal operation and contingencies, such as a large drop in PV power, significant load change, grid outage, and faults. Simulate the model to verify whether the designed PV plant and BESS unit, along with their associated controllers, conform the performance requirements the current IEEE 2800 standards recommend.

Setup

  • Clone the repository and add to MATLAB path, then click the 'RenewableEnergyIntegrationSimscape.prj' file to get started.
  • In the toolstrip, use the project shortcut buttons to load the model.
  • This project requires MATLAB® R2022b or later.

Copyright 2022-2023 The MathWorks, Inc.

Cite As

MathWorks Simscape Team (2023). ​Renewable Energy Integration Design with Simscape (https://github.com/simscape/Renewable-Energy-Integration-Simscape/releases/tag/22.2.1.3), GitHub. Retrieved .

MATLAB Release Compatibility
Created with R2022b
Compatible with R2022b
Platform Compatibility
Windows macOS Linux
