## Plot an ellipse in "center form"

version 1.0.0.0 (2.09 KB) by
Draws 2D and 3D ellipses that are given in "center form".

14 Downloads

Updated 16 Nov 2007

View License

Ellipse_plot(A,c)

This function draws an N-dimensional ellipse (N = 2,3) that is given in "center form":

(x - C)' A (x - C) <= 1

where C is the center of the ellipse, and A is an NxN positive definite symmetric matrix.

A and C could be the outputs of the function: "MinVolEllipse.m", which computes the minimum volume enclosing ellipsoid containing a set of points in an N-dimensional space. For example, you can use this function as follows:

P = rand(3,100);
t = 0.001;
[A , C] = MinVolEllipse(P, t)
figure

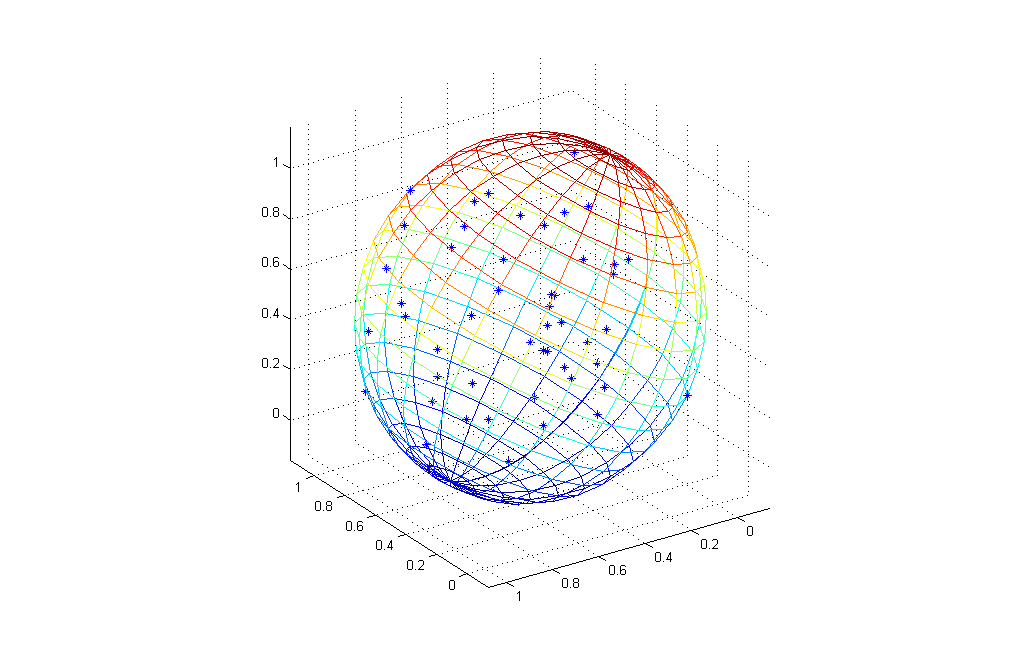

plot3(P(1,:),P(2,:),P(3,:),'*')
hold on
Ellipse_plot(A,C)
