SimEvents: Operations Research Library

version (367 KB) by Rick Rosson
Add-on library for SimEvents® that provides blocks for modeling operations research systems.


Updated 01 Sep 2016

View License

Editor's Note: This file was selected as MATLAB Central Pick of the Week

NEW: Updated for R2015a.
NEW: Example demonstrating the Reorder Point method.

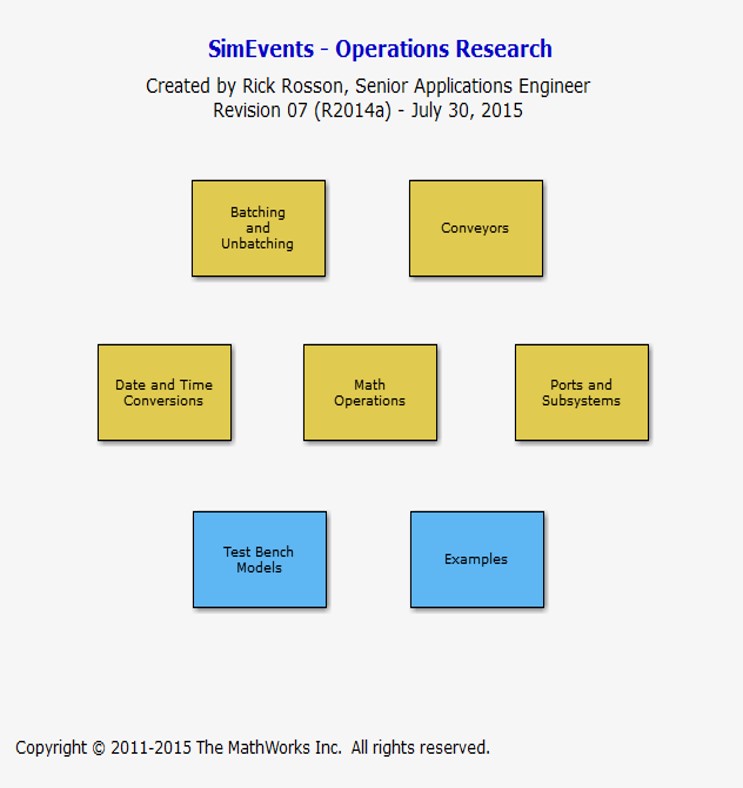

The library consists of a top-level SimEvents library called


eight sub-libraries:

1. se4_batching.slx,
2. se4_conveyor.slx,
3. se4_math.slx,
4. se4_utilities.slx,
5. se4_DateTime.slx,
6. se4_subsystem.slx
7. se4_examples.slx,
8. se4_test.slx,

five test bench models:

1. test_accumulate.slx,
2. test_batching.slx,
3. test_conveyor.slx,
4. test_DateTime_days.slx, and
5. test_DateTime_minutes.slx.

and three example models:

1. Goldratt_Dice.slx
2. Job_Shop.slx
3. Reorder_Point.slx

Revision 08 (R2015a) - September 30, 2015

Cite As

Rick Rosson (2020). SimEvents: Operations Research Library (, MATLAB Central File Exchange. Retrieved .

Comments and Ratings (7)

Rafa Juarez

I am trying to create a model of a paralell car storage in an automotive factory and I don' t know how to apply a technical availability to each server. I add the cycle time or servcie time for each car but I would like to ass the TAV to simulate breakdowns causing a reduction of the number of entities served. If there any example for this kind of models to help me?

Simple example should be how to create a production line with and automation. This automation will have a cycle time per car and suddnely a breakdwon could occur. How it is modeled?

Many thanks.

Rick Rosson

I am currently evaluating SimEvents R2016b.

Rick Rosson

I have no plans at this time to update this content to the new SimEvents (R2016a). I will re-evaluate this decision after MathWorks releases R2016b.

Is there a chance you will update this for the new simevents (2016A)? I would love to use this functionality in a project.

Wei Li

Nice work my friend! You might consider a version that releases the batch as individual entities instead of combined (or make it an option in the mask). You also could eliminate the need for the Time-Based Entity Generator upstream if you had a dialog option that specified the frequency of batching.


Updated license

Updated for R2015a. Added a new example demonstrating the Reorder Point method.

Updated for R2014a. Sub-library containing example models. Two example models:

Correction: Updating requirements field to MATLAB 8.2 (R2013b)

1. Updated to R2013b.
2. Updated to .slx file format.
3. Additional sub-library for date/time conversions.

Upgrading the libraries and test benches to R2011b.

Reorganized library into four sub-libraries. Added new blocks for 'zero-protected divide' and 'event-driven cumulative time average'

Added three new blocks to the library: Accumulate, Disaccumlate, and Entity Subsystem. Updated files to R2011a. Fixed a few minor issues with the test bench models. Renamed the "LittlesLaw.mdl" simulation to "test_conveyor.mdl".

Corrected typo in the description: revision date should be "2011" not "2010"

Added a new block to represent conveyor belts in the library. Added a new demo illustrating 'Little's Law'.

Updated the description to include advantages and limitations. Also added Simulink to the list of required products.

MATLAB Release Compatibility
Created with R2014a
Compatible with any release
Platform Compatibility
Windows macOS Linux
