Transducer Array Calculation (TAC) GUI

version 1.9.0.0 (3.04 MB) by Benedikt Kohout

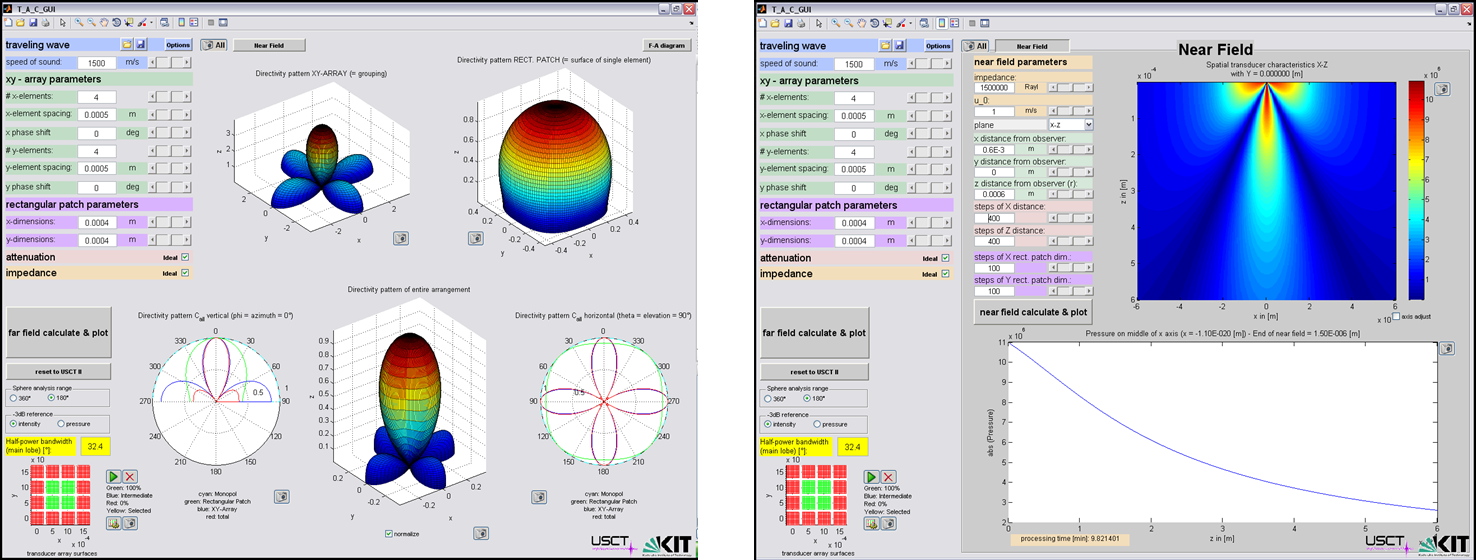

GUI to calculate and visualize the radiation pattern of ultrasound transducers.

17 Downloads

Updated 12 Sep 2012

View Version History

View License

Input parameters:
-----------------

- # and dimensions of transducer elements
- Selection of active elements
- Phase and Amplitude of elements
- Excitation signal
- Acoustic medium (speed of sound, impedance, attenuation)
- Simulation plane and image resolution
- Impedance characteristcs measurements

Output parameters:
------------------
- Calculated directivity pattern (azimuth, elevation, 3D)
- Half-power bandwidth
- Calculated Soundfield
- Pressure characteristics on middle axis
