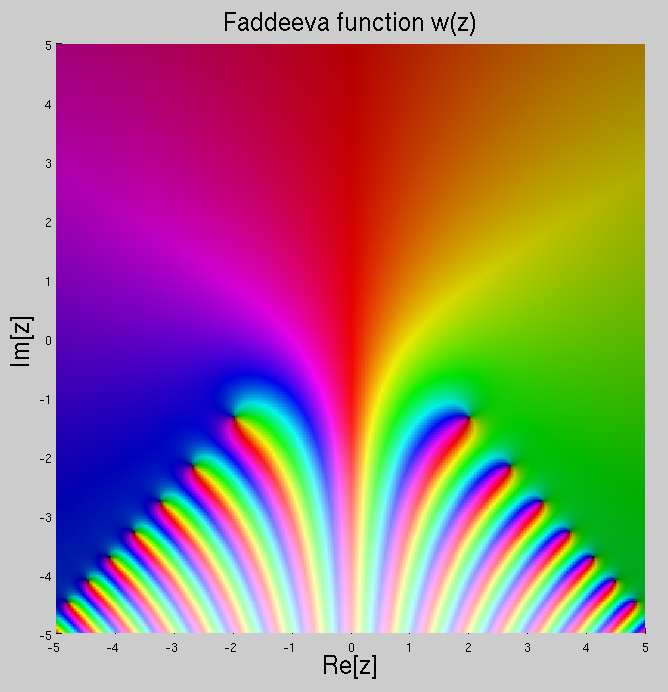

## Faddeeva Package: complex error functions

version 1.5.0.0 (50.1 KB) by
C++ MEX plugins to compute error functions (erf, erfc, erfi, erfcx, Faddeeva, ...) of complex args

Updated 17 Dec 2012

C++ source code for compiled plugins (MEX files) to compute various error functions for complex arguments:

** Faddeeva_erf(z) -- the error function
** Faddeeva_erfc(z) = 1 - erf(z) -- complementary error function
** Faddeeva_erfi(z) = -i erf(iz) -- imaginary error function
** Faddeeva_erfcx(z) = exp(z^2) erfc(z) -- scaled complementary error function
** Faddeeva_Dawson(z) = 0.5 sqrt(pi) exp(-z^2) erfi(z) -- Dawson function

From e.g. the Faddeeva function, one can also obtain the Voigt functions and other related functions.

Assuming you have a C++ compiler (and have configured it in MATLAB with mex -setup), compile by running the included Faddeeva_build.m script in MATLAB:

All of the functions have usage of the form:
or optionally Faddeeva_w(z, relerr), where relerr is a desired relative error (default: machine precision). z may be an array or matrix of complex or real numbers.

along with documentation and other versions. As described in the source code, this implementation uses a combination of algorithms for the Faddeeva function: a continued-fraction expansion for large |z| [similar to G. P. M. Poppe and C. M. J. Wijers, "More efficient computation of the complex error function," ACM Trans. Math. Soft. 16 (1), pp. 38–46 (1990)], and a completely different algorithm for smaller |z| [Mofreh R. Zaghloul and Ahmed N. Ali, "Algorithm 916: Computing the Faddeyeva and Voigt Functions," ACM Trans. Math. Soft. 38 (2), 15 (2011).]. Given the Faddeeva function, we can then compute the other error functions, although we must switch to Taylor expansions and use other tricks in certain regions of the complex plane to avoid cancellation errors or other floating-point problems.

### Cite As

Steven G. Johnson (2020). Faddeeva Package: complex error functions (https://www.mathworks.com/matlabcentral/fileexchange/38787-faddeeva-package-complex-error-functions), MATLAB Central File Exchange. Retrieved .

George Bishop

BTW, substitute Eq.5 from paper by Zaker, J Comp Phys 1969
https://doi.org/10.1016/0021-9991(69)90011-4
in Faddeeva definition w(z)=exp(-z^2)*(1-erf(-i*z)) and isolate real and imaginary terms "to derive" in one line those approximations for smaller |z|. Too trivial actually...

George Bishop

I analysed this code and it's appeared to be nothing but a modified Poppe and Wijers algorithm. Only a tiny bit of origin's area for smaller |z| is computed by Salzer's approximations of the Faddeeva function. Rest is Poppe and Wijers, I guess. Aren't so, Steven?

Kyle Thackston

Much faster than the symbolic erf function. Worked for me well on MATLAB 2018a in Windows 10 after following the instructions Andrew posted about MinGW.

sreeraj t

So, how do you run this one?

Chaud Solaire

I cannot run C++ files via Matlab! I followed all recommended instructions and could not do anything because of permanent errors. It's a headache and terrible frustration to adjust a computer to run these non-native C++ files from the Matlab environment. Could you please translate these C++ files to Matlab instead?

junye li

ans =

0.1905 + 1.3162i

which is different from
>> double(erf(sym(1+1i)))
ans =
1.3162 + 0.1905i

Why? I make mex function using Mac.

swank

AriessBB

Run with Matlab 2017a and compiled with MinGW64 Compiler (C++), it gets
Faddeeva.cc:970:54: error: '_copysign' was not declared in this scope (0.5*c)*copysign(sum5-sum4, creal(z)));
Faddeeva.cc:179:26: note: in definition of macro 'C' # define C(a,b) cmplx(a,b)
Is that problem with the MinGW64 Compiler or else?

Andrew

I found another Faddeeva / Voigt function that is just as good (maybe better?), and already in MATLAB format (no need for compilers):

Andrew

@Andrew
I have discovered that MinGW is not compatible with MATLAB R2015a.
Instead I was able to use SDK 7.1 on Windows 10.

To help others do this, If you install SDK 7.1 from this link:

and still have problems, such as typing into MATLAB

mex -setup

and then receiving the error:

No supported SDK or compiler was found on this computer.
For a list of supported compilers, see
<http://www.mathworks.com/support/compilers/R2012a/win64.html>

This worked for me with Windows 10 MATLAB 2015a.

Andrew

Has anyone got a C++ compiler for this to work on:
MATLAB R2015a (8.5.0.197613)
64-bit (win46)
Windows 10

?
If so, please tell me step by step instructions (I have spent a day trying to make this work, and really need to get fitting data for a publication that is under a review deadline.)

Janos

This is a fantastic implementation. This code works about 2000x faster for me (when tested with large multidimensional arrays) than the built-in Matlab erfi function.

Karan Gill

Alternatively, the Symbolic Math Toolbox provides the error and dawson functions for complex inputs.

Take the error function for example:

>> double(erf(sym(1+1i)))
ans =
1.3162 + 0.1905i

You could define an anonymous function to make it easier:

>> erfCmplx = @(x) double(erf(sym(x)))
erfCmplx =
@(x)double(erf(sym(x)))

>> erfCmplx(1+1i)
ans =
1.3162 + 0.1905i

The Symbolic Math Toolbox functions are:
erf: http://www.mathworks.com/help/symbolic/erf.html
erfc: http://www.mathworks.com/help/symbolic/erfc.html
erfcinv: http://www.mathworks.com/help/symbolic/erfcinv.html
erfi: http://www.mathworks.com/help/symbolic/erfi.html
erfinv: http://www.mathworks.com/help/symbolic/erfinv.html
dawson: http://www.mathworks.com/help/symbolic/dawson.html

Brian Hannan

Ian

One update I would really like to see in this package is the derivative functions, at least for W(z). As pointed out in Zaghloul and Ali, the derivative functions of W(z) (equations 21-23) become numerically unstable near dV/dx = 0 (V=real(W(z)), at the peak of the Voigt function. This can cause problems when trying to compute analytical Jacobians for doing nonlinear fits of the Voigt function to optical spectra.

Since you are already using the Zaghloul and Ali algorithm in this region, it would be helpful to also use their method to output a function, say Faddeeva_dw(z) = dV/dx + i*dL/dx (L=imag(W(z)). The corresponding y derivatives can then be trivially computed.

Ian

Works as advertised and is extremely fast.

Niklas

Steven G. Johnson

It won't work with lcc, since that is a C compiler, not a C++ compiler. The failure to compile with Visual C++ is a bug, which is fixed in the latest release on my web site (and which should appear on Matlab Central shortly).

alan

Hello, Love this program. I have it up and running on my mac to simulate voigt broadening. Im trying to add this functionality to a lab computer running win32 matlab 7.12.0 (R2011a), but I cannot successfully compile with mex.

With Lcc-win32 C 2.4.1 in C:\PROGRA~1\MATLAB\R2011a\sys\lcc: lcc preprocessor error: .\Faddeeva.hh:30 .\Faddeeva_mex.cc:35 Faddeeva_w_mex.cc:3 Could not find include file complex

full verbose: http://pastebin.com/YyLYYe8C

With Microsoft Visual C++ 2010 Express in C:\Program Files\Microsoft Visual Studio 10.0: Faddeeva.cc Faddeeva.cc(184) : error C2124: divide or mod by zero Faddeeva.cc(822) : error C3861: 'copysign': identifier not found C:\PROGRA~1\MATLAB\R2011A\BIN\MEX.PL: Error: Compile of 'Faddeeva.cc' failed.

full verbose: http://pastebin.com/K4LPd9FN

The only instances of complex.h are in a pythonwx folder not related to matlab. I see that it was released for R2012a. Does the package need a specific C++ compiler?
