bordertext( varargin )
- 8 files
- 4 downloads
Editor's Note: This file was selected as MATLAB Central Pick of the Week
Place text on borders of the figure, border of the subplots, on the inner-side or outer-side. Also control the most important text-properties with one simple FormatString.
Text stays on the borders, even while zooming, panning, etc.

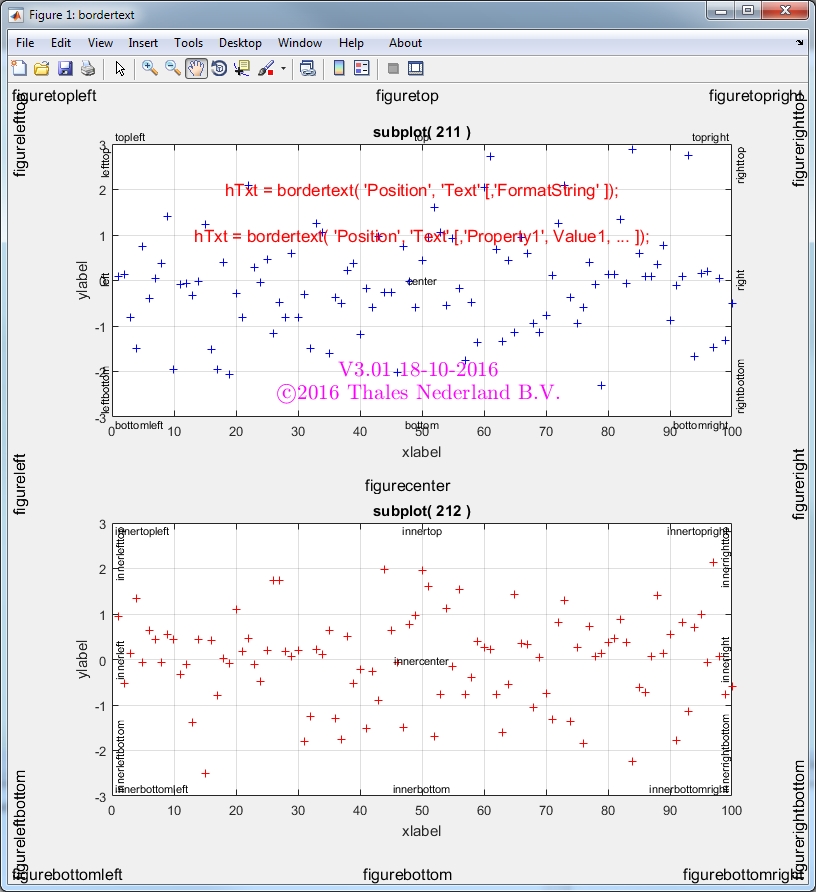

Try 'bordertext' without arguments to see the demo (figure is added as screenshot)
