Half wave rectifier with Resistive load

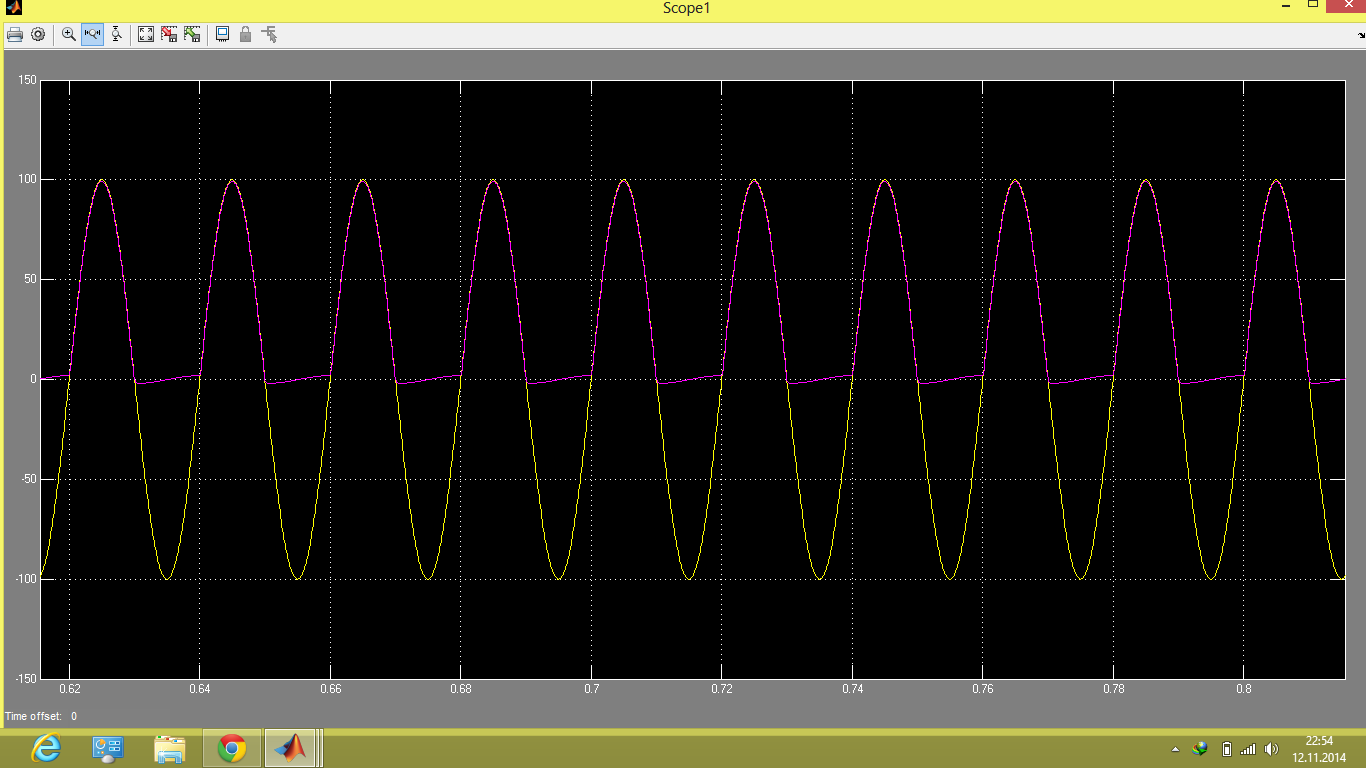

Half wave rectifier simulation that gives the output voltage and current waveforms are obtained in simulink. If you open the simulation you will see 2 scope box, scope shows the input and output voltage together, scope1 shows the load current. if you want to obtain the graphs for calculating the rms and average values, you can use halfwave_Is and halfwave_Vo vectors.
Cite As
Çağlar İŞLEK (2026). Half wave rectifier with Resistive load (https://www.mathworks.com/matlabcentral/fileexchange/48397-half-wave-rectifier-with-resistive-load), MATLAB Central File Exchange. Retrieved .
MATLAB Release Compatibility
Platform Compatibility
Windows macOS LinuxCategories
- Physical Modeling > Simscape Electrical > Specialized Power Systems >
- Physical Modeling > Simscape Electrical > Electrical Block Libraries > Semiconductors and Converters > Semiconductors >
