One-Year Simulation in One Minute

Simulation of an Energy Storage System used on a power grid
Updated 10 Jun 2015

View License

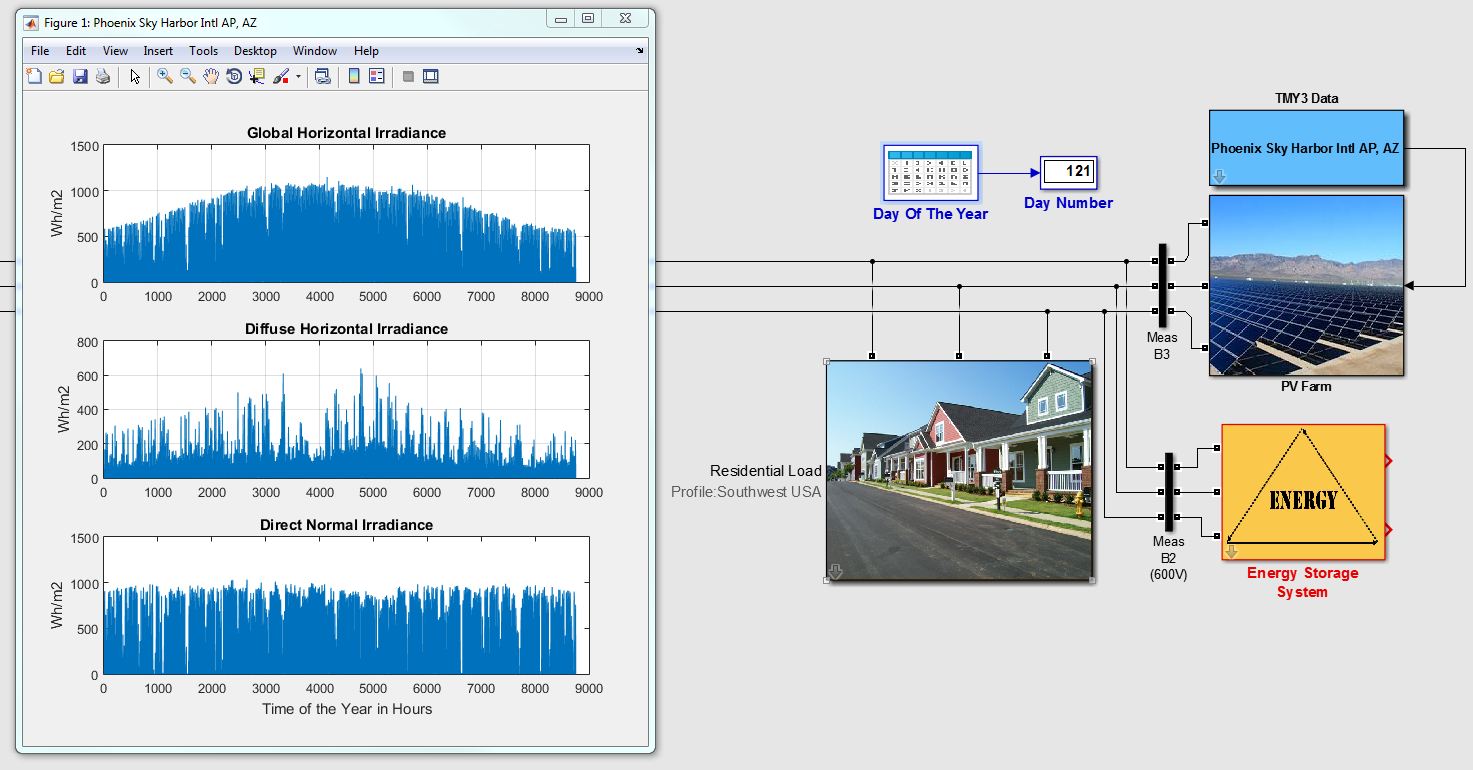

Demonstrate SimPowerSystems capabilities to simulate an electrical circuit and control system, in phasor mode, for a full-year period in less than one minute of simulation time. Illustrate concepts related to Energy Storage Systems (ESS). Show how to use public solar data time-series (TMY3 files) and how to create typical load profiles.
A simple scenario has been chosen to illustrate one usage of this example: The objective is to determine appropriate sizing (power & capacity) of an ESS equipment connected to a 600V community electrical system, in order to prevent the community from purchasing more power than agreed with the Utility company. Based on a given load profile, PV farm output, ESS power rating and capacity, the simulation will give the number of unavailability for a full year. This sizing study can be performed for various locations around the US.
The authors are Pierre Giroux, Gilbert Sybille, Jacques Brochu, and Patrice Brunelle, from IREQ, Hydro-Quebec research institute, with the collaboration of Mathworks.

Cite As

Patrice Brunelle (2024). One-Year Simulation in One Minute (, MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2014b
Compatible with any release
Platform Compatibility
Windows macOS Linux

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!


Version Published Release Notes

I added the Build_LoadProfile_Datasets.m MATLAB script to assist the users in creating additional load profiles.

Updated description notes
