symlog

Version 1.10.0.0 (49.5 KB) by Robert
bi-symmetric logarithmic axes scaling (allows negative values)
4.9
(8)
2.1K Downloads
Updated 16 Feb 2017
View License on GitHub

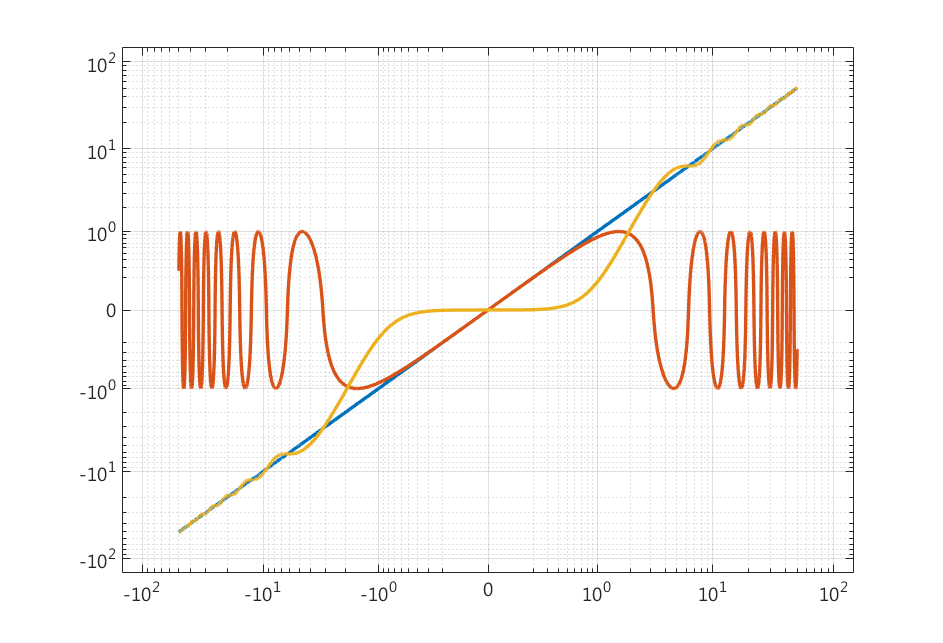

SYMLOG applies a modified logarithm scale to the specified or current
axes that handles negative values while maintaining continuity across
zero. The transformation is defined in an article from the journal
Measurement Science and Technology (Webber, 2012):

y = sign(x)*(log10(1+abs(x)/(10^C)))

where the scaling constant C determines the resolution of the data
around zero. The smallest order of magnitude shown on either side of
zero will be 10^ceil(C).

Cite As

Robert (2024). symlog (https://github.com/raaperrotta/symlog), GitHub. Retrieved .

MATLAB Release Compatibility
Created with R2016a
Compatible with any release
Platform Compatibility
Windows macOS Linux
Categories
Find more on Labels and Annotations in Help Center and MATLAB Answers

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!

Versions that use the GitHub default branch cannot be downloaded

Version Published Release Notes
1.10.0.0

Connected to github
1.2.0.0

Added try-catch statement to handle axis ruler property name difference between R2015a ('MinorTick') and R2016a ('MinorTickValues').
1.1.0.0

Adjusted the summary
1.0.0.0
