Visualizing GMSH .msh file in MATLAB using TRIPLOT

Version 1.0.0.0 (1.63 KB) by Sathyanarayan Rao

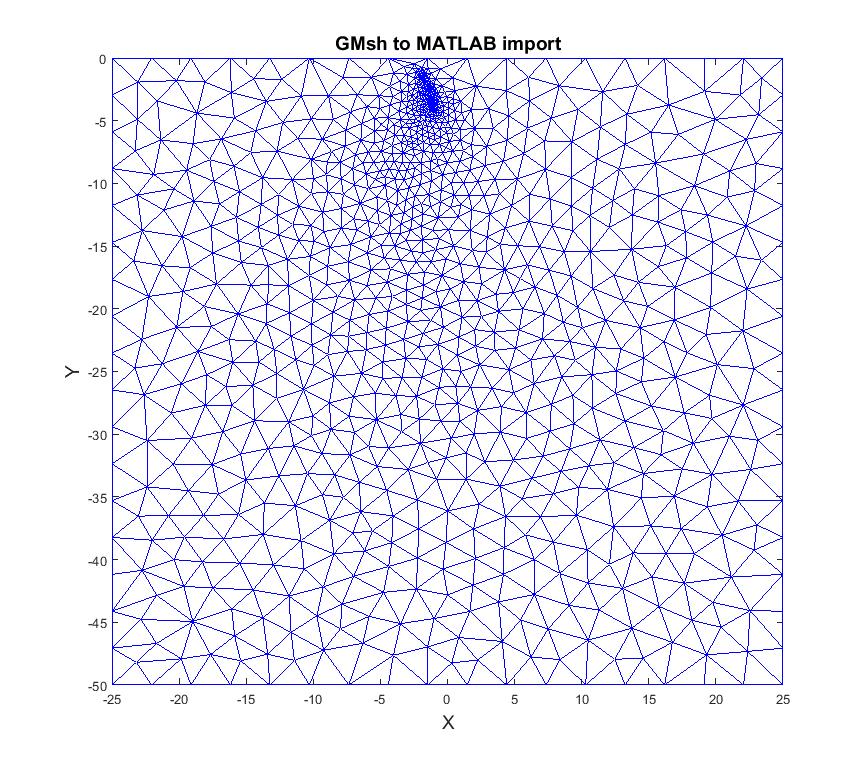

In this code, I import GMsh .msh file and form elements and nodes matrix which is then visualized.
3.6
(5)
1.9K Downloads
Updated 12 Oct 2016

View License

This code is made for 2D Geometry.

Cite As

Sathyanarayan Rao (2024). Visualizing GMSH .msh file in MATLAB using TRIPLOT (https://www.mathworks.com/matlabcentral/fileexchange/59682-visualizing-gmsh-msh-file-in-matlab-using-triplot), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2015a
Compatible with any release
Platform Compatibility
Windows macOS Linux
