Terrain Elevation

version 1.0.0.2 (9.52 KB) by Samuel Pfrommer
Downloads US terrain elevation from the USGS in 1/3 arc-second resolution.

13 Downloads

Updated 02 Oct 2020

From GitHub

View Version History

View license on GitHub

An easy-to-use MATLAB library for working with terrain elevation from the USGS in 1/3 arc-second resolution. Supports automatic download and synthesization of multiple 1x1 degree cells, elevation data sampling, easy conversion from latitude/longitude to cartesian coordinates, and terrain visualization.
This library works in all of the mainland United States, Hawaii, and most of Alaska. It depends on the MATLAB Mapping Toolbox.

Example code:
% Download the USGS 1/3 arc-second data covering northwestern Wyoming, from
% 42.5 to 45 latitude and from -111.05 to -108.6 longitude
region = fetchregion([42.5, 45], [-111.05, -108.6], 'display', true);

% Read the elevation data for Yellowstone National Park (the indicated
% latitude and longitude range), sampling at 1/20th of the maximum
% resolution (i.e., 6 arc-seconds).
yellowstoneElevData = region.readelevation([44.255813, 44.649888], [-110.861772, -110.183366], 'sampleFactor', 20, 'display', true);
% Graph the elevation data for Yellowstone, using latitude and longitude
% for the x and y coordinates
dispelev(yellowstoneElevData, 'mode', 'latlong');

% Read the elevation data for the Jackson Hole resort (the indicated
% latitude and longitude range), sampling all data points (1/3 arc-seconds)
jacksonElevData = region.readelevation([43.450467, 43.546597], [-110.837225, -110.732854], 'SampleFactor', 1, 'display', true);

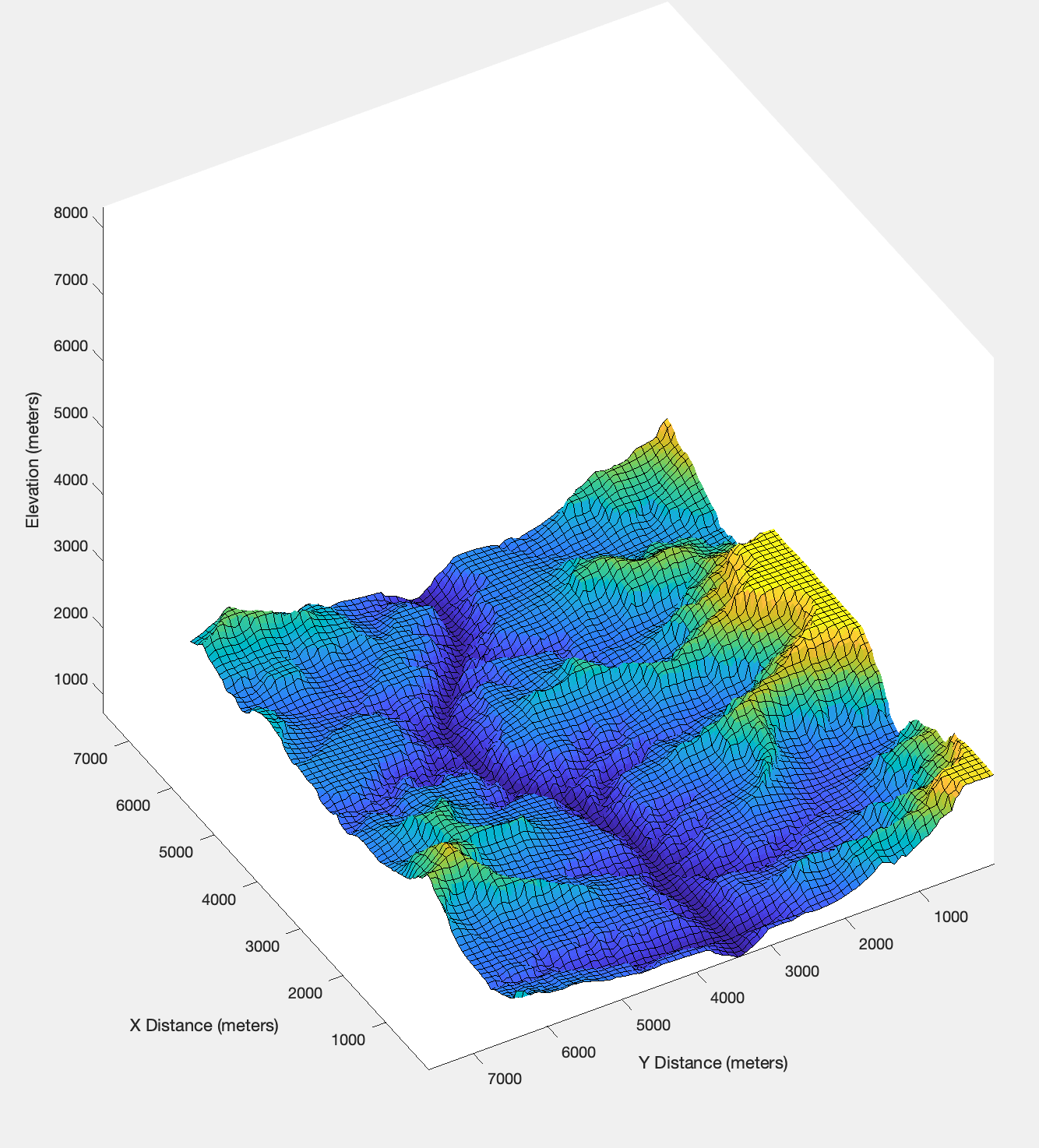

% Graph the elevation data for Jackson Hole, using meters for the x and y
% coordinates and specifying roughly 50 grid lines
dispelev(jacksonElevData, 'mode', 'cartesian', 'gridLines', 50);

Cite As

Samuel Pfrommer (2021). Terrain Elevation (https://github.com/spfrommer/terrain-elevation), GitHub. Retrieved .

Comments and Ratings (3)

Samuel Pfrommer

Hi Krishnaraj,
Sorry for the late notice--I just ran an example and it seems to be working. Make sure you have the mapping toolbox installed, and feel free to share the code you used to get the error.

Krishnaraj Sambath

I was quite excited to see this! Thanks for posting.

Unfortunately, the links seem to have expired.. :(

URL_FORMAT1 = 'https://prd-tnm.s3.amazonaws.com/StagedProducts/Elevation/13/GridFloat/USGS_NED_13_n%dw%03d_GridFloat.zip';
URL_FORMAT2 = 'https://prd-tnm.s3.amazonaws.com/StagedProducts/Elevation/13/GridFloat/n%dw%03d.zip';
DATAFILE_FORMAT1 = '/usgs_ned_13_n%dw%03d_gridfloat.flt';
DATAFILE_FORMAT2 = '/floatn%dw%03d_13.flt';

Thomas Schilling

Great function! Works well.
Be aware - Only US Data!

MATLAB Release Compatibility
Created with R2016b
Compatible with any release
