AREASHADE

version 1.0.0.0 (1.85 KB) by Andreas
Shades areas between a curve and a fixed threshold.

1 Download

Updated 25 Mar 2005

View License

Editor's Note: This file was a File Exchange Pick of the Week

AREASHADE(X,Y,F) shades the area where Y is larger than some fixed value F using the color yellow.

AREASHADE(X,Y,F,C) uses color C instead of yellow.

AREASHADE(X,Y,F,C,TH) where TH = 'h' uses F as a high threshold and shades the are where Y<F. Default for TH is 'l', painting Y>F.

H = AREASHADE(X,Y,F) returns a handle to the created patch.

Example:

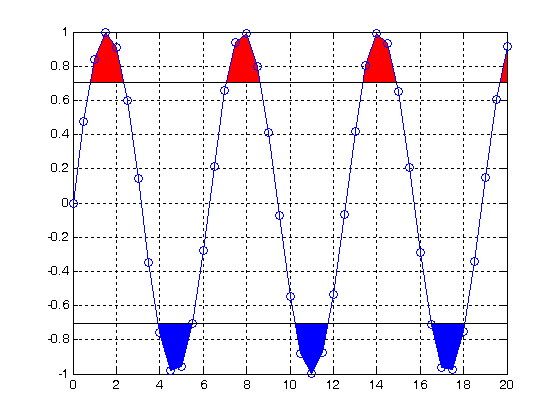

x = [0:.5:20]; y = sin(x);
figure, plot(x,y,'o-'), hold on
areashade(x,y,1/sqrt(2),'r')
areashade(x,y,-1/sqrt(2),'b','h');
plot(xlim,1/sqrt(2)*[1 1],'k')
plot(xlim,-1/sqrt(2)*[1 1],'k')
