quiverRotate

version 1.1.0 (2.86 KB) by Adam Danz
Rotates the direction of quiver arrows produced by quiver().

87 Downloads

Updated 17 Apr 2020

View License

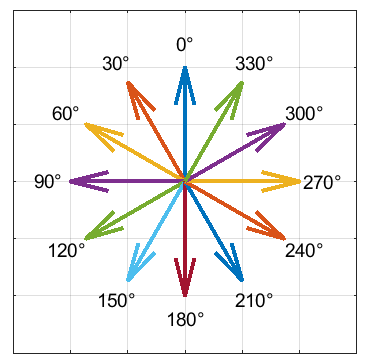

Rotate the quiver arrows produced by quiver() about their (x,y) base by any specified angle in degrees or radians.

h = quiver(X, Y, U, V);
quiverRotate(h) Rotate existing arrows by 180 deg.
quiverRotate(h, r) Rotate existing arrows by r radians.
quiverRotate(h, d, 'deg') Rotate existing arrows by d degrees.

[Ur, Vr] = quiverRotate(U, V); Compute the vector components rotated by 180 deg.
[Ur, Vr] = quiverRotate(U, V, r); Compute the vector components rotated by r radians.
[Ur, Vr] = quiverRotate(U, V, d, 'deg'); Compute the vector components rotated by d degrees.
quiver(X, Y, Ur, Vr)

Cite As

Adam Danz (2021). quiverRotate (https://www.mathworks.com/matlabcentral/fileexchange/75055-quiverrotate), MATLAB Central File Exchange. Retrieved .

MATLAB Release Compatibility
Created with R2020a
Compatible with R2014b and later releases
