Voxel2mesh - plotVoxelArray
There are several functions with similar results on the FileExchange. Compared to the functions I have tested this version is faster (it uses fewer for-loops/iterations) and more compatible with very displaying large arrays (it does not involve the construction of expanding intermediary arrays).
Voxel2mesh - creates triangulated or quad mesh from voxel arrays; the
mesh represents the surface faces of boundary voxels in the input array
(i.e. each voxel face, facing the outside of the object. Voxels are treated as 1x1x1 cubes, cube-faces facing the "outside of the object" are part of the output mesh)
all voxels with value > 0 are considered as part of the object
all voxels with value == 0 are considered background/outside the object
optionally a vector that assigns the numeric value (greyscale) of each voxel to the corresponding mesh vertices can be saved (e.g. to define mesh colours for display)
mesh triangles follow the right-hand rule with face normals pointing
outwards

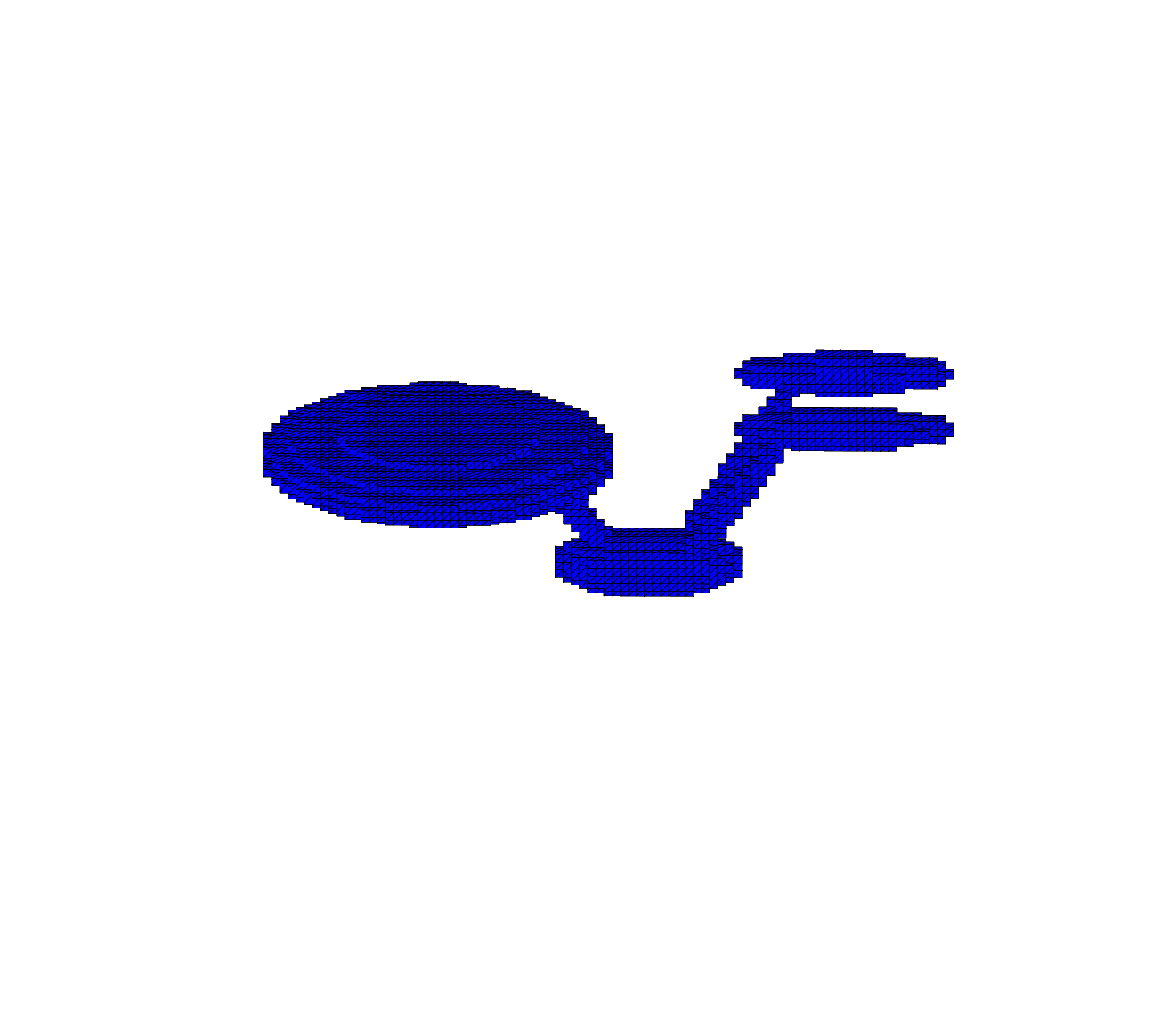

plotVoxelArray - calls Voxel2mesh to display voxel array as patch object
the colour of the output mesh can be defined manually or by the voxel array (by default the mesh is blue)
