Frequency Response Analyzer

Version 1.3 (322 KB) by Pat Gipper
Perform frequency analysis of your Simulink model without linearization


Updated 19 Nov 2021

View License

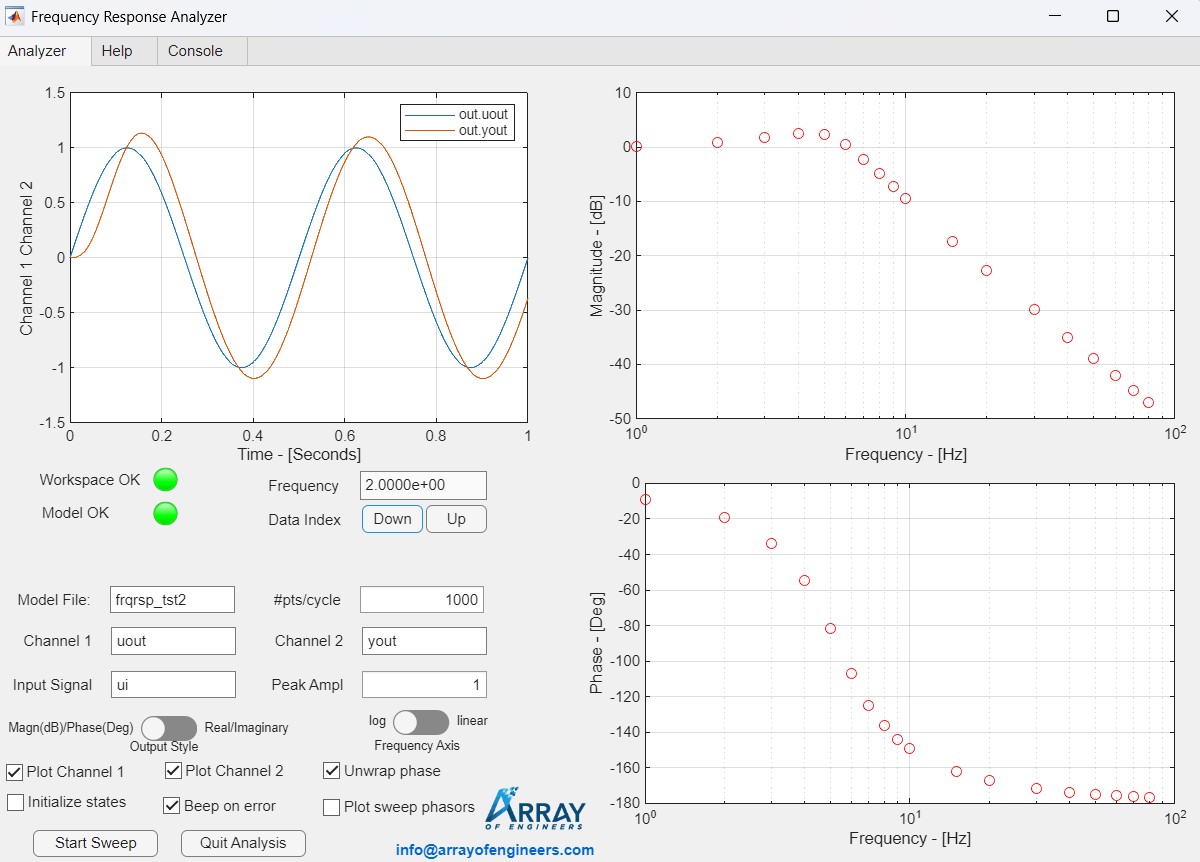

Typical bode response analysis of models requires that you linearize around an operating point. Which can be difficult and uncertain especially when the model contains non-linearities. This add-on application allows the dynamic analysis of a model using injection of a sine wave that is swept over any frequency range of interest. This duplicates how devices are tested in labs.
Refer to the help tab to get started using the tool with a simple model.
