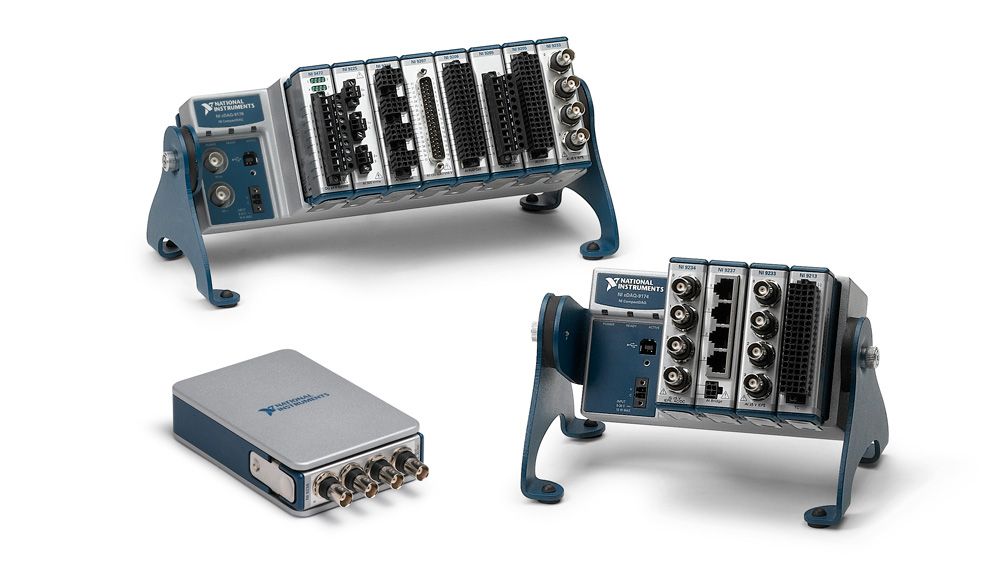

NI-DAQmx Support from Data Acquisition Toolbox

Acquire and analyze data from NI-DAQmx devices

Capabilities and Features

Data Acquisition Toolbox™ Support Package for National Instruments® NI-DAQmx Devices provides support for CompactDAQ, X-Series, M-Series, E-Series, USB, myDAQ, ELVIS II, and many other types of data acquisition hardware from National Instruments through MATLAB® and Data Acquisition Toolbox.

Data Acquisition Toolbox supports the following features of NI-DAQmx devices:

  • Analog input
  • Analog output
  • Digital input and output
  • Counter/Timer
  • Voltage measurements

Supported Hardware

The support package can be used with the following National Instruments NI-DAQmx devices.

Hardware Model
MATLAB Releases Supported Simulink Releases Supported Input Output Bidirectional
NI 9201 R2014a or earlier - Current R2016b - Current Voltage
NI 9201 (DSUB) R2014a or earlier - Current R2016b - Current Voltage
NI 9203 R2014a or earlier - Current N/A Current
NI 9205 R2014a or earlier - Current R2016b - Current Voltage
NI 9205 (DSUB) R2014a or earlier - Current R2016b - Current Voltage
NI 9206 R2014a or earlier - Current R2016b - Current Voltage
NI 9207 (DSUB) R2014a or earlier - Current R2016b - Current Voltage, Current
NI 9208 R2014a or earlier - Current N/A Current
NI 9208 (DSUB) R2014a or earlier - Current N/A Current
NI 9209 R2015b - Current R2016b - Current Voltage

NI 9210 R2018b - Current R2018b - Current Voltage, Thermocouple
NI 9211 R2014a or earlier - Current R2016b - Current Voltage, Thermocouple
NI 9212 R2015b - Current R2016b - Current Voltage, Thermocouple
NI 9213 R2014a or earlier - Current R2016b - Current Voltage, Thermocouple
NI 9214 R2014a or earlier - Current R2016b - Current Voltage, Thermocouple
NI 9215 R2014a or earlier - Current R2016b - Current Voltage
NI 9215 (BNC) R2014a or earlier - Current R2016b - Current Voltage
NI 9216 R2015b - Current N/A RTD
NI 9217 R2014a or earlier - Current N/A RTD
NI 9218 R2015b - Current R2016b - Current Voltage, Current, Accelerometer, Bridge, Microphone
NI 9219 R2014a or earlier - Current R2016b - Current Voltage, Current, Thermocouple, RTD, Bridge
NI 9220 R2014a or earlier - Current R2016b - Current Voltage
NI 9221 R2014a or earlier - Current R2016b - Current Voltage
NI 9221 (DSUB) R2014a or earlier - Current R2016b - Current Voltage
NI 9222 R2014a or earlier - Current R2016b - Current Voltage
NI 9222 (BNC) R2015a - Current R2016b - Current Voltage
NI 9223 R2014a or earlier - Current R2016b - Current Voltage
NI 9223 (BNC) R2015a - Current R2016b - Current Voltage
NI 9224 R2018b R2018b Voltage
NI 9225 R2014a or earlier - Current R2016b - Current Voltage
NI 9226 R2015b - Current N/A RTD
NI 9227 R2014a or earlier - Current N/A Current
NI 9229 R2014a or earlier - Current R2016b - Current Voltage

NI 9230 R2015b - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE
NI 9230 (BNC) R2016b - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE
NI 9232 R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE
NI 9232 (BNC) R2016b - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE
NI 9233 R2014a or earlier - R2018b R2016b - R2018b Voltage, Accelerometer, Microphone, IEPE
NI 9234 R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE
NI 9235 R2014a or earlier - Current N/A Bridge
NI 9236 R2014a or earlier - Current N/A Bridge
NI 9237 R2014a or earlier - Current N/A Bridge
NI 9238 R2015b - Current R2016b - Current Voltage
NI 9239 R2014a or earlier - Current R2016b - Current Voltage
NI 9242 R2015b - Current R2016b - Current Voltage
NI 9244 R2015b - Current R2016b - Current Voltage
NI 9246 R2015b - Current N/A Current
NI 9247 R2015b - Current N/A Current
NI 9251 R2018b - Current R2018b - Current Voltage
NI 9263 R2014a or earlier - Current R2016b - Current   Voltage
NI 9264 R2014a or earlier - Current R2016b - Current   Voltage
NI 9264 (DSUB) R2014a or earlier - Current R2016b - Current   Voltage
NI 9265 R2014a or earlier - Current N/A   Current
NI 9269 R2014a or earlier - Current R2016b - Current   Voltage
NI 93441 R2015b - Current R2016b - Current Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration
NI 9361     EdgeCount, PulseWidth, Position
NI 94011 R2014a or earlier - Current R2016b - Current

Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration Digital
NI 94021 R2014a or earlier - Current R2016b - Current

Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration Digital
NI 9403 R2014a or earlier - Current R2016b - Current

Digital Digital Digital
NI 94111 R2014a or earlier - Current R2016b - Current

Digital, EdgeCount, PulseWidth, Frequency, Position
NI 94211 R2014a or earlier - Current R2016b - Current

Digital, EdgeCount, PulseWidth, Frequency, Position
NI 94221 R2014a or earlier - Current R2016b - Current

Digital, EdgeCount, PulseWidth, Frequency, Position
NI 94231 R2014a or earlier - Current R2016b - Current

Digital, EdgeCount, PulseWidth, Frequency, Position
NI 9425 R2014a or earlier - Current R2016b - Current

Digital
NI 9426 R2014a or earlier - Current R2016b - Current

Digital
NI 94351 R2014a or earlier - Current R2016b - Current

Digital, EdgeCount, PulseWidth, Frequency, Position
NI 94361 R2016b - Current R2016b - Current

Digital, EdgeCount, PulseWidth, Frequency, Position
NI 94371 R2015b - Current R2016b - Current

Digital, EdgeCount, PulseWidth, Frequency, Position
NI 94721 R2014a or earlier - Current R2016b - Current

  Digital, PulseGeneration
NI 94741 R2014a or earlier - Current R2016b - Current

  Digital, PulseGeneration
NI 94751 R2014a or earlier - Current R2016b - Current

  Digital, PulseGeneration
NI 9476 R2014a or earlier - Current R2016b - Current

  Digital
NI 9477 R2014a or earlier - Current R2016b - Current

  Digital
NI 9478 R2014a or earlier - Current R2016b - Current

  Digital
NI 94811 R2014a or earlier - Current R2016b - Current

  Digital, PulseGeneration
NI 94851 R2014a or earlier - Current R2016b - Current

  Digital, PulseGeneration
NI cDAQ-9132 R2016b - Current R2016b - Current
NI cDAQ-9133 R2016b - Current R2016b - Current
NI cDAQ-9134 R2016b - Current R2016b - Current

NI cDAQ-9135 R2016b - Current R2016b - Current

NI cDAQ-9171 R2014a or earlier - Current R2016b - Current

NI cDAQ-9172 R2014a or earlier - R2018b R2016b - R2018b

NI cDAQ-9174 R2014a or earlier - Current R2016b - Current

NI cDAQ-9178 R2014a or earlier - Current R2016b - Current

NI cDAQ-9179 R2017b - Current R2017b - Current

NI cDAQ-9181 R2014a or earlier - Current R2016b - Current

NI cDAQ-9184 R2014a or earlier - Current R2016b - Current

NI cDAQ-91852 R2020a R2020a
NI cDAQ-9188 R2014a or earlier - Current R2016b - Current

NI cDAQ-91892 R2020a R2020a
NI cDAQ-9191 R2014a or earlier - Current R2016b - Current


Notes

  1. Requires appropriate chassis for counter measurements
  2. TSN features are not supported
Hardware Model MATLAB Releases Supported Simulink Releases Supported Input Output Bidirectional
ELVIS II R2014a or earlier - Current R2016b - Current Voltage, Digital Voltage, Digital
ELVIS II+ R2014a or earlier - Current R2016b - Current Voltage, Digital Voltage, Digital
Hardware Model
MATLAB Releases Supported Simulink Releases Supported Input Output Bidirectional
ENET-9163 (Carrier) R2014a or earlier - R2018b R2016b - R2018b
ENET-9205 R2014a or earlier - Current R2016b - Current Voltage

ENET-9205 (DSUB) R2014a or earlier - Current R2016b - Current Voltage

ENET-9206 R2014a or earlier - Current R2016b - Current Voltage

ENET-9211 R2014a or earlier - Current R2016b - Current Voltage, Thermocouple

ENET-9213 R2014a or earlier - Current R2016b - Current Voltage, Thermocouple

ENET-9215 R2014a or earlier - Current R2016b - Current Voltage

ENET-9215 (BNC) R2014a or earlier - Current R2016b - Current Voltage

ENET-9219 R2014a or earlier - Current R2016b - Current Voltage, Current, Thermocouple, RTD, Bridge

ENET-9234 R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE

ENET-9237 R2014a or earlier - Current N/A Bridge

ENET-9421 R2014a or earlier - Current R2016b - Current Digital

ENET-9421 (DSUB) R2014a or earlier - Current R2016b - Current Digital

ENET-9472 R2014a or earlier - Current R2016b - Current   Digital

ENET-9472 (DSUB) R2014a or earlier - Current R2016b - Current   Digital

ENET-9481 R2014a or earlier - Current R2016b - Current   Digital

Hardware Model MATLAB Releases Supported Simulink Releases Supported Input Output Bidirectional
myDAQ R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
Hardware Model MATLAB Releases Supported Simulink Releases Supported Input Output Bidirectional
PCI-4461 R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE Voltage
PCI-4462 R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE
PCI-4472 R2014a or earlier - Current
R2016b - Current Voltage, Accelerometer, Microphone, IEPE
PCI-4474 R2014a or earlier - Current
R2016b - Current Voltage, Accelerometer, Microphone, IEPE
PCI-6010 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration
PCI-6013 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Digital, PulseGeneration
Digital
PCI-6014 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-6023E R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Digital, PulseGeneration Digital
PCI-6024E R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-6025E R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-6030E R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-6031E R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-6032E R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Digital, PulseGeneration Digital
PCI-6033E R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Digital, PulseGeneration Digital
PCI-6034E R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Digital, PulseGeneration Digital
PCI-6035E R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-6036E R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-6040E R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-6052E R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-6070E R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-6071E R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-6110 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-6110E R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-6111 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-6111E R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-6115 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-6120 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-6122 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Digital, PulseGeneration Digital
PCI-6123 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Digital, PulseGeneration Digital
PCI-6132 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Digital, PulseGeneration Digital
PCI-6133 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Digital, PulseGeneration Digital
PCI-6143 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Digital, PulseGeneration Digital
PCI-6154 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration
PCI-6220 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration Digital
PCI-6221 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PCI-6224 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration Digital
PCI-6225 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PCI-6229 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PCI-6230 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration
PCI-6232 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration
PCI-6233 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration
PCI-6238 R2014a or earlier - Current
R2016b - Current Current, Digital, EdgeCount, PulseWidth, Frequency, Position Current, Digital, PulseGeneration
PCI-6239 R2014a or earlier - Current
R2016b - Current Current, Digital, EdgeCount, PulseWidth, Frequency, Position Current, Digital, PulseGeneration
PCI-6250 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration Digital
PCI-6251 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PCI-6254 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration Digital
PCI-6255 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PCI-6259 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PCI-6280 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration Digital
PCI-6281 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PCI-6284 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration Digital
PCI-6289 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PCI-6503 R2014a or earlier - Current
R2016b - Current

Digital Digital Digital
PCI-6509 R2014a or earlier - Current
R2016b - Current

Digital Digital Digital
PCI-6510 R2014a or earlier - Current
R2016b - Current

Digital
PCI-6511 R2014a or earlier - Current
R2016b - Current

Digital
PCI-6512 R2014a or earlier - Current
R2016b - Current

  Digital
PCI-6513 R2014a or earlier - Current
R2016b - Current

  Digital
PCI-6514 R2014a or earlier - Current
R2016b - Current

Digital Digital
PCI-6515 R2014a or earlier - Current
R2016b - Current

Digital Digital
PCI-6516 R2014a or earlier - Current
R2016b - Current

  Digital
PCI-6517 R2014a or earlier - Current
R2016b - Current

  Digital
PCI-6518 R2014a or earlier - Current
R2016b - Current

Digital Digital
PCI-6519 R2014a or earlier - Current
R2016b - Current

Digital Digital
PCI-6520 R2014a or earlier - Current
R2016b - Current

Digital Digital
PCI-6521 R2014a or earlier - Current
R2016b - Current

Digital Digital
PCI-6527 R2014a or earlier - Current
R2016b - Current

Digital Digital
PCI-6528 R2014a or earlier - Current
R2016b - Current

Digital Digital
PCI-6533 R2014a or earlier - Current
R2016b - Current

Digital Digital Digital
PCI-6534 R2014a or earlier - Current
R2016b - Current

Digital Digital Digital
PCI-6601 R2014a or earlier - Current
R2016b - Current

Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration Digital
PCI-6602 R2014a or earlier - Current
R2016b - Current

Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration Digital
PCI-6703 R2014a or earlier - Current
R2016b - Current
Digital Voltage, Digital
Digital
PCI-6704 R2014a or earlier - Current
R2016b - Current
Digital Voltage, Current, Digital
Digital
PCI-6711 R2014a or earlier - Current
R2016b - Current
Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration
Digital
PCI-6713 R2014a or earlier - Current
R2016b - Current
Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration
Digital
PCI-6722 R2014a or earlier - Current
R2016b - Current
Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration
Digital
PCI-6723 R2014a or earlier - Current
R2016b - Current
Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration
Digital
PCI-6731 R2014a or earlier - Current
R2016b - Current
Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration
Digital
PCI-6733 R2014a or earlier - Current
R2016b - Current
Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration
Digital
PCI-DIO-32HS R2014a or earlier - Current
R2016b - Current

Digital Digital Digital
PCI-DIO-96 R2014a or earlier - Current
R2016b - Current

Digital Digital Digital
PCI-MIO-16E-1 R2014a or earlier - Current
R2016b - Current
Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-MIO-16E-4 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-MIO-16XE-10 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PCI-MIO-16XE-50 R2014a or earlier - Current
R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
Hardware Model MATLAB Releases Supported Simulink Releases Supported Input Output Bidirectional
PCIe-6251 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PCIe-6259 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PCIe-6320 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration Digital
PCIe-6321 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PCIe-6323 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PCIe-6341 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PCIe-6343 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PCIe-6351 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PCIe-6353 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PCIe-6361 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PCIe-6363 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PCIe-6509 R2014a or earlier - Current R2016b - Current

Digital Digital Digital
PCIe-6535 R2014a or earlier - Current R2016b - Current

Digital Digital Digital
PCIe-6536 R2014a or earlier - Current R2016b - Current

Digital Digital Digital
PCIe-6537 R2014a or earlier - Current R2016b - Current

Digital Digital Digital
Hardware Model MATLAB Releases Supported Simulink Releases Supported Input Output Bidirectional
PXI-4204 R2014a or earlier - Current R2016b - Current Voltage
PXI-4461 R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE Voltage
PXI-4462 R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE
PXI-4472 R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE
PXI-4472B R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE
PXI-4496 R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE
PXI-4498 R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE
PXI-6011E R2014a or earlier - Current R2016b - Current
PXI-6025E R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PXI-6030E R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PXI-6031E R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PXI-6035E R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PXI-6040E R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PXI-6052E R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PXI-6053E R2014a or earlier - Current R2016b - Current
PXI-6070E R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PXI-6071E R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PXI-6115 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PXI-6120 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PXI-6122 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Digital, PulseGeneration Digital
PXI-6123 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Digital, PulseGeneration Digital
PXI-6132 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Digital, PulseGeneration Digital
PXI-6133 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Digital, PulseGeneration Digital
PXI-6143 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency Digital, PulseGeneration Digital
PXI-6220 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration Digital
PXI-6221 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXI-6224 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration Digital
PXI-6225 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXI-6229 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXI-6230 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration
PXI-6232 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration
PXI-6233 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration
PXI-6236 R2014a or earlier - Current R2016b - Current Current, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration
PXI-6238 R2014a or earlier - Current R2016b - Current Current, Digital, EdgeCount, PulseWidth, Frequency, Position Current, Digital, PulseGeneration
PXI-6239 R2014a or earlier - Current R2016b - Current Current, Digital, EdgeCount, PulseWidth, Frequency, Position Current, Digital, PulseGeneration
PXI-6250 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration Digital
PXI-6251 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXI-6254 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration Digital
PXI-6255 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXI-6259 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXI-6280 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration Digital
PXI-6281 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXI-6284 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration Digital
PXI-6289 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXI-6508 R2014a or earlier - Current R2016b - Current

Digital Digital Digital
PXI-6509 R2014a or earlier - Current R2016b - Current

Digital Digital Digital
PXI-6511 R2014a or earlier - Current R2016b - Current

Digital
PXI-6512 R2014a or earlier - Current R2016b - Current

  Digital
PXI-6513 R2014a or earlier - Current R2016b - Current

  Digital
PXI-6514 R2014a or earlier - Current R2016b - Current

Digital Digital
PXI-6515 R2014a or earlier - Current R2016b - Current

Digital Digital
PXI-6521 R2014a or earlier - Current R2016b - Current

Digital Digital
PXI-6527 R2014a or earlier - Current R2016b - Current

Digital Digital
PXI-6528 R2014a or earlier - Current R2016b - Current

Digital Digital
PXI-6529 R2014a or earlier - Current R2016b - Current

Digital
PXI-6533 R2014a or earlier - Current R2016b - Current

Digital Digital Digital
PXI-6534 R2014a or earlier - Current R2016b - Current

Digital Digital Digital
PXI-6602 R2014a or earlier - Current R2016b - Current

Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration Digital
PXI-6608 R2014a or earlier - Current R2016b - Current

Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration Digital
PXI-6624 R2014a or earlier - Current N/A EdgeCount, PulseWidth, Frequency, Position PulseGeneration
PXI-6703 R2014a or earlier - Current R2016b - Current Digital Voltage, Digital Digital
PXI-6704 R2014a or earlier - Current R2016b - Current Digital Voltage, Current, Digital Digital
PXI-6711 R2014a or earlier - Current R2016b - Current Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PXI-6713 R2014a or earlier - Current R2016b - Current Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PXI-6722 R2014a or earlier - Current R2016b - Current Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PXI-6723 R2014a or earlier - Current R2016b - Current Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
PXI-6733 R2014a or earlier - Current R2016b - Current Digital, EdgeCount, PulseWidth, Frequency Voltage, Digital, PulseGeneration Digital
Hardware Model MATLAB Releases Supported Simulink Releases Supported Input Output Bidirectional
PXIe-4300 R2014a or earlier - Current R2016b - Current Voltage
PXIe-4339 R2016b - Current R2016b - Current Voltage, Bridge
PXIe-4463 R2015b - Current R2016b - Current   Voltage
PXIe-4464 R2016b - Current R2016b - Current Voltage, Accelerometer, Microphone
PXIe-4492 R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE
PXIe-4496 R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE
PXIe-4497 R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE
PXIe-4498 R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE
PXIe-4499 R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE
PXIe-6124 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXIe-6251 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXIe-6259 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXIe-6341 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXIe-6345 R2016b - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXIe-6355 R2016b - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXIe-6356 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXIe-6358 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXIe-6361 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXIe-6363 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXIe-6365 R2016b - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXIe-6366 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXIe-6368 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXIe-6375 R2016b - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXIe-6378 R2016b - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
PXIe-6535 R2014a or earlier - Current R2016b - Current

Digital Digital Digital
PXIe-6536 R2014a or earlier - Current R2016b - Current

Digital Digital Digital
PXIe-6537 R2014a or earlier - Current R2016b - Current

Digital Digital Digital
Hardware Model MATLAB Releases Supported Simulink Releases Supported Input Output Bidirectional
USB-4431 R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE Voltage
USB-4432 R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE
USB-6000 R2015a - Current R2016b - Current Voltage, Digital, EdgeCount Digital Digital
USB-6001 R2015a - Current R2016b - Current Voltage, Digital, EdgeCount Voltage, Digital Digital
USB-6002 R2015a - Current R2016b - Current Voltage, Digital, EdgeCount Voltage, Digital Digital
USB-6003 R2015a - Current R2016b - Current Voltage, Digital, EdgeCount Voltage, Digital Digital
USB-6008 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount Voltage, Digital Digital
USB-6009 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount Voltage, Digital Digital
USB-6210 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Digital, PulseGeneration
USB-6211 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration
USB-6212 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6212 (BNC) R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6212 (Mass Termination) R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6215 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration
USB-6216 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6216 (BNC) R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6216 (Mass Termination) R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6218 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration
USB-6218 (BNC) R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration
USB-6221 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6221 (BNC) R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6225 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6225 (Mass Termination) R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6229 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6229 (BNC) R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6251 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6251 (BNC) R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6255 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6255 (Mass Termination) R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6259 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6259 (BNC) R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6259 (Mass Termination) R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6281 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6281 (Mass Termination) R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6289 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6289 (Mass Termination) R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6341 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6343 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6351 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6353 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6356 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6361 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6363 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6366 R2014a or earlier - Current R2016b - Current Voltage, Digital, EdgeCount, PulseWidth, Frequency, Position Voltage, Digital, PulseGeneration Digital
USB-6501 R2014a or earlier - Current R2016b - Current

Digital, EdgeCount Digital Digital
USB-6509 R2014a or earlier - Current R2016b - Current

Digital Digital Digital
USB-6525 R2014a or earlier - Current R2016b - Current

Digital, EdgeCount Digital
USB-9162 (Carrier) R2014a or earlier - Current R2016b - Current
USB-9201 R2014a or earlier - Current R2016b - Current Voltage
USB-9211 R2014a or earlier - Current R2016b - Current Voltage, Thermocouple
USB-9211A R2014a or earlier - Current R2016b - Current Voltage, Thermocouple
USB-9213 R2014a or earlier - Current R2016b - Current Voltage, Thermocouple
USB-9215A R2014a or earlier - Current R2016b - Current Voltage
USB-9219 R2014a or earlier - Current R2016b - Current Voltage, Current, Thermocouple, RTD, Bridge
USB-9221 R2014a or earlier - Current R2016b - Current Voltage
USB-9229 R2014a or earlier - Current R2016b - Current Voltage
USB-9229 (BNC) R2014a or earlier - Current R2016b - Current Voltage
USB-9233 R2014a or earlier - R2018b R2016b - R2018b Voltage, Accelerometer, Microphone, IEPE
USB-9234 R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE
USB-9237 R2014a or earlier - Current N/A Bridge
USB-9239 R2014a or earlier - Current R2016b - Current Voltage
USB-9239 (BNC) R2014a or earlier - Current R2016b - Current Voltage
USB-9263 R2014a or earlier - Current R2016b - Current   Voltage
USB-9264 R2014a or earlier - Current R2016b - Current   Voltage
USB-9265 R2014a or earlier - Current N/A   Current
USB-9421 R2014a or earlier - Current R2016b - Current

Digital
USB-9472 R2014a or earlier - Current R2016b - Current

  Digital
USB-9481 R2014a or earlier - Current R2016b - Current

  Digital
USB-TC01 R2014a or earlier - Current R2016b - Current Voltage, Thermocouple
Hardware Model MATLAB Releases Supported Simulink Releases Supported Input Output Bidirectional
WLS-9163 (Carrier) R2014a or earlier - R2018b R2016b - R2018b
WLS-9205 R2014a or earlier - Current R2016b - Current Voltage
WLS-9205 (DSUB) R2014a or earlier - Current R2016b - Current Voltage
WLS-9206 R2014a or earlier - Current R2016b - Current Voltage
WLS-9211 R2014a or earlier - Current R2016b - Current Voltage, Thermocouple
WLS-9213 R2014a or earlier - Current R2016b - Current Voltage, Thermocouple
WLS-9215 R2014a or earlier - Current R2016b - Current Voltage
WLS-9215 (BNC) R2014a or earlier - Current R2016b - Current Voltage
WLS-9219 R2014a or earlier - Current R2016b - Current Voltage, Current, Thermocouple, RTD, Bridge
WLS-9234 R2014a or earlier - Current R2016b - Current Voltage, Accelerometer, Microphone, IEPE
WLS-9237 R2014a or earlier - Current N/A Bridge
WLS-9421 R2014a or earlier - Current R2016b - Current

Digital
WLS-9421 (DSUB) R2014a or earlier - Current R2016b - Current

Digital
WLS-9472 R2014a or earlier - Current R2016b - Current

  Digital
WLS-9472 (DSUB) R2014a or earlier - Current R2016b - Current

  Digital
WLS-9481 R2014a or earlier - Current R2016b - Current

  Digital

Platform and Release Support

See the hardware support package system requirements table for current and prior version, release, and platform availability.

Learn more about National Instruments DAQ support with the legacy interface in MATLAB Release 2015b or older.
