nrPUCCHIndices

Generate PUCCH resource element indices

    Description

    example

    [ind,info] = nrPUCCHIndices(carrier,pucch) generates ind, which contains 1-based physical uplink control channel (PUCCH) resource element (RE) indices, as defined in TS 38.211 Section 6.3.2 [1] for all PUCCH formats. carrier specifies the carrier configuration. pucch specifies the PUCCH configuration. The function also generates info, which contains information about the bit capacity and symbol capacity of the uplink control information (UCI) on the PUCCH.

    example

    [ind,info] = nrPUCCHIndices(carrier,pucch,Name,Value) specifies output formatting options using one or more name-value arguments.

    Examples

    collapse all

    Create a default carrier configuration object. This object corresponds to a 10 MHz carrier with 15 kHz subcarrier spacing.

    carrier = nrCarrierConfig;

    Create a default PUCCH format 0 configuration object.

    pucch0 = nrPUCCH0Config;

    Specify the size of the bandwidth part (BWP) as 35 and the starting PRB index of the BWP relative to CRB 0 as 12. Specify the first symbol index in the PUCCH transmission slot as 3 and the number of allocated PUCCH symbols as 2. Set the PRB allocated for the PUCCH to 20, enable intraslot frequency hopping, and set the starting PRB index of the second hop to 10.

    pucch0.NSizeBWP = 35;
    pucch0.NStartBWP = 12;
    pucch0.SymbolAllocation = [3 2];
    pucch0.PRBSet = 20;
    pucch0.FrequencyHopping = 'intraSlot';
    pucch0.SecondHopStartPRB = 10;

    Generate PUCCH format 0 RE indices, setting the index orientation with respect to the carrier grid.

    [ind,info] = nrPUCCHIndices(carrier,pucch0,'IndexOrientation','carrier')
    ind = 24x1 uint32 column vector

       2257
       2258
       2259
       2260
       2261
       2262
       2263
       2264
       2265
       2266
          ⋮


    info = struct with fields:
                    G: 24
                   Gd: 24
            NREPerPRB: 24
        DMRSSymbolSet: [1x0 double]

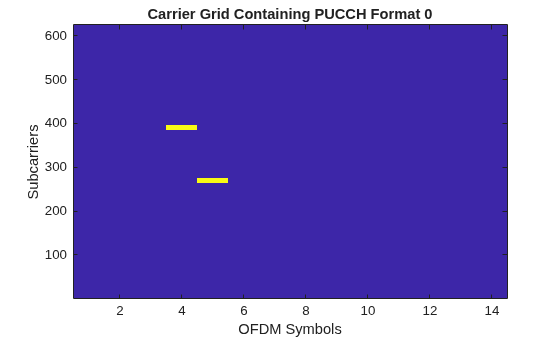

    Plot the generated REs for PUCCH format 0 in the carrier resource grid.

    resGrid = nrResourceGrid(carrier);
    resGrid(ind) = 1;
    imagesc(resGrid)
    axis xy
    xlabel('OFDM Symbols')
    ylabel('Subcarriers')
    title('Carrier Grid Containing PUCCH Format 0')

    Figure contains an axes. The axes with title Carrier Grid Containing PUCCH Format 0 contains an object of type image.

    Create a default carrier configuration object.

    carrier = nrCarrierConfig;

    Specify a 60 kHz carrier with extended cyclic prefix. Set the number of RBs in the carrier resource grid to 55 and the slot number to 12.

    carrier.SubcarrierSpacing = 60;
    carrier.CyclicPrefix = 'extended';
    carrier.NSizeGrid = 55;
    carrier.NSlot = 12;

    Create a default PUCCH format 1 configuration object.

    pucch1 = nrPUCCH1Config;

    Specify the first symbol index in the PUCCH transmission slot as 3 and the number of allocated PUCCH symbols as 8. Enable intraslot frequency hopping and set the starting PRB index of the second hop to 35.

    pucch1.NSizeBWP = [];                  % Set NSizeBWP equal to the NSizeGrid property of carrier
    pucch1.NStartBWP = [];                 % Set NStartBWP equal to the NStartGrid property of carrier
    pucch1.SymbolAllocation = [3 8];
    pucch1.FrequencyHopping = 'intraSlot';
    pucch1.SecondHopStartPRB = 35;

    Generate PUCCH format 1 RE indices.

    [ind,info] = nrPUCCHIndices(carrier,pucch1)
    ind = 48x1 uint32 column vector

       2641
       2642
       2643
       2644
       2645
       2646
       2647
       2648
       2649
       2650
          ⋮


    info = struct with fields:
                    G: 48
                   Gd: 48
            NREPerPRB: 48
        DMRSSymbolSet: [3 5 7 9]

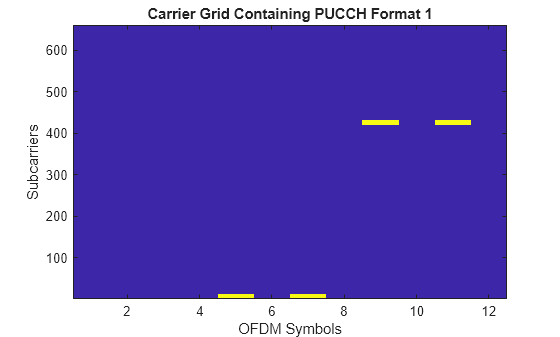

    Plot the generated REs for PUCCH format 1 in the carrier resource grid.

    resGrid = nrResourceGrid(carrier);
    resGrid(ind) = 1;
    imagesc(resGrid)
    axis xy
    xlabel('OFDM Symbols')
    ylabel('Subcarriers')
    title('Carrier Grid Containing PUCCH Format 1')

    Figure contains an axes. The axes with title Carrier Grid Containing PUCCH Format 1 contains an object of type image.

    Create a default carrier configuration object.

    carrier = nrCarrierConfig;

    Specify the number of RBs in the carrier resource grid as 24, the start of the carrier resource grid relative to CRB 0 as 20, and the slot number as 43.

    carrier.NSizeGrid = 24;
    carrier.NStartGrid = 20;
    carrier.NSlot = 43;

    Create a default PUCCH format 2 configuration object.

    pucch2 = nrPUCCH2Config;

    Specify the first symbol index in the PUCCH transmission slot as 5 and the number of allocated PUCCH symbols as 2. Set the PRBs allocated for the PUCCH to range from 0 to 15 and enable intraslot frequency hopping. Set the starting PRB index of the second hop to 7.

    pucch2.SymbolAllocation = [5 2];
    pucch2.PRBSet = 0:15;
    pucch2.FrequencyHopping = 'intraSlot';
    pucch2.SecondHopStartPRB = 7;

    Generate PUCCH format 2 RE indices.

    [ind,info] = nrPUCCHIndices(carrier,pucch2)
    ind = 256x1 uint32 column vector

       1441
       1443
       1444
       1446
       1447
       1449
       1450
       1452
       1453
       1455
          ⋮


    info = struct with fields:
                    G: 512
                   Gd: 256
            NREPerPRB: 16
        DMRSSymbolSet: [5 6]

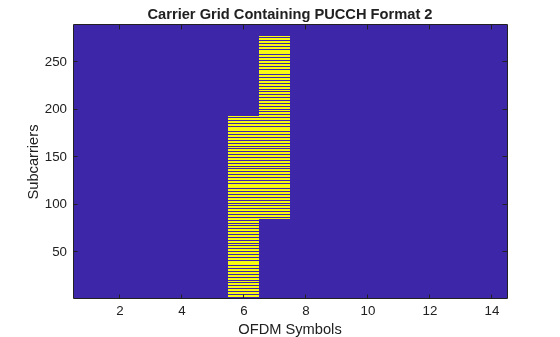

    Plot the generated REs for PUCCH format 2 in the carrier resource grid.

    resGrid = nrResourceGrid(carrier);
    resGrid(ind) = 1;
    imagesc(resGrid)
    axis xy
    xlabel('OFDM Symbols')
    ylabel('Subcarriers')
    title('Carrier Grid Containing PUCCH Format 2')

    Figure contains an axes. The axes with title Carrier Grid Containing PUCCH Format 2 contains an object of type image.

    Create a default carrier configuration object.

    carrier = nrCarrierConfig;

    Create a default PUCCH format 3 configuration object.

    pucch3 = nrPUCCH3Config;

    Specify the PRB allocation of the PUCCH to range from 0 to 11. Set the first symbol index in the PUCCH transmission slot to 2 and the number of allocated PUCCH symbols to 12. Enable the additional DM-RS configuration flag.

    pucch3.NSizeBWP = [];
    pucch3.NStartBWP = [];
    pucch3.PRBSet = 0:11;
    pucch3.SymbolAllocation = [2 12];
    pucch3.AdditionalDMRS = 1;

    Generate PUCCH format 3 RE indices, setting the index orientation with respect to the carrier grid.

    [ind,info] = nrPUCCHIndices(carrier,pucch3,'IndexOrientation','carrier')
    ind = 1152x1 uint32 column vector

       1249
       1250
       1251
       1252
       1253
       1254
       1255
       1256
       1257
       1258
          ⋮


    info = struct with fields:
                    G: 2304
                   Gd: 1152
            NREPerPRB: 96
        DMRSSymbolSet: [3 6 9 12]

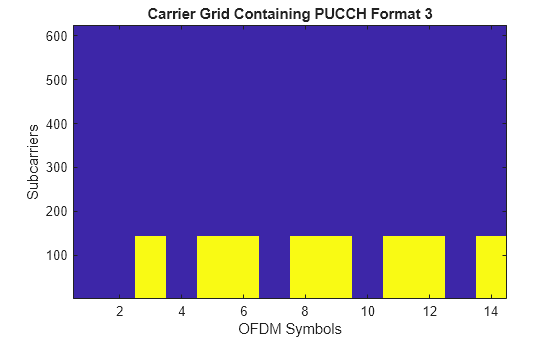

    Plot the generated REs for PUCCH format 3 in the carrier resource grid.

    resGrid = nrResourceGrid(carrier);
    resGrid(ind) = 1;
    imagesc(resGrid)
    axis xy
    xlabel('OFDM Symbols')
    ylabel('Subcarriers')
    title('Carrier Grid Containing PUCCH Format 3')

    Figure contains an axes. The axes with title Carrier Grid Containing PUCCH Format 3 contains an object of type image.

    Create a default carrier configuration object.

    carrier = nrCarrierConfig;

    Create a default PUCCH format 4 configuration object.

    pucch4 = nrPUCCH4Config;

    Specify the modulation scheme as pi/2-BPSK and the allocated PRB for the PUCCH as 50. Set the first symbol index in the PUCCH transmission slot to 2 and the number of allocated PUCCH symbols to 10. Enable intraslot frequency hopping and the additional DM-RS configuration flag. Set the starting PRB index of the second hop to 10.

    pucch4.Modulation = 'pi/2-BPSK';
    pucch4.PRBSet = 50;
    pucch4.SymbolAllocation = [2 10];
    pucch4.FrequencyHopping = 'intraSlot';
    pucch4.SecondHopStartPRB = 10;
    pucch4.AdditionalDMRS = 1;

    Generate the PUCCH format 4 RE indices.

    [ind,info] = nrPUCCHIndices(carrier,pucch4)
    ind = 72x1 uint32 column vector

       1849
       1850
       1851
       1852
       1853
       1854
       1855
       1856
       1857
       1858
          ⋮


    info = struct with fields:
                    G: 36
                   Gd: 36
            NREPerPRB: 72
        DMRSSymbolSet: [3 5 8 10]

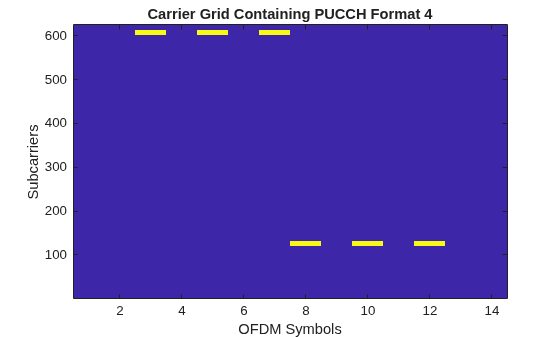

    Plot the generated REs for PUCCH format 4 in the carrier resource grid.

    resGrid = nrResourceGrid(carrier);
    resGrid(ind) = 1;
    imagesc(resGrid)
    axis xy
    xlabel('OFDM Symbols')
    ylabel('Subcarriers')
    title('Carrier Grid Containing PUCCH Format 4')

    Figure contains an axes. The axes with title Carrier Grid Containing PUCCH Format 4 contains an object of type image.

    Input Arguments

    collapse all

    Carrier configuration parameters for a specific OFDM numerology, specified as an nrCarrierConfig object. This function only uses these nrCarrierConfig object properties.

    PUCCH configuration parameters, specified as one of these options.

    Name-Value Pair Arguments

    Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

    Example: 'IndexStyle','subscript' specifies the RE indexing form of the output.

    RE indexing form, specified as one of these values:

    • 'index' — The indices are in linear index form.

    • 'subscript' — The indices are in [subcarrier, symbol, antenna] subscript row form.

    Data Types: char | string

    RE indexing base, specified as one of these values:

    • '1based' — The index counting starts from 1.

    • '0based' — The index counting starts from 0.

    Data Types: char | string

    RE indexing orientation, specified as one of these values:

    • 'carrier' — Indices are referenced with respect to the carrier grid.

    • 'bwp' — Indices are referenced with respect to the BWP.

    Data Types: char | string

    Output Arguments

    collapse all

    PUCCH RE indices, returned as one of these values:

    • Column vector — The function returns this type of value when you set the IndexStyle name-value argument to 'index'.

    • M-by-3 matrix — The function returns this type of value when you set the IndexStyle name-value argument to 'subscript'. The matrix rows correspond to the [subcarrier, symbol, antenna] subscripts based on the number of subcarriers, OFDM symbols, and number of antennas, respectively.

    Depending on the value of IndexBase, the function returns either 1-based or 0-based indices. Depending on the value of IndexOrientation, the function returns either carrier-oriented indices or BWP-oriented indices.

    Data Types: uint32

    PUCCH resource information, returned as a structure containing these fields. The output data type of each field is double.

    FieldDescription
    G

    Bit capacity of the PUCCH, returned as a value that is equal to the length of the UCI encoded codeword for formats 2, 3, and 4.

    Gd

    Symbol capacity of the PUCCH

    NREPerPRB

    Number of REs per PRB allocated to the PUCCH (including the spreading factor)

    DMRSSymbolSet

    Set of 0-based OFDM symbol locations in a slot containing the demodulation reference signal (DM-RS)

    References

    [1] 3GPP TS 38.211. “NR; Physical channels and modulation.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.
