Flight Instruments
R2026bDisplay measurements through standard cockpit instruments
Use cockpit instrument blocks to display flight status information from your model.
Blocks
 | Airspeed Indicator | Display measurements for aircraft airspeed |
 | Altimeter | Display measurements for aircraft altitude |
 | Artificial Horizon | Represent aircraft attitude relative to horizon |
 | Climb Rate Indicator | Display measurements for aircraft climb rate |
 | Exhaust Gas Temperature (EGT) Indicator | Display measurements for engine exhaust gas temperature (EGT) |
 | Heading Indicator | Display measurements for aircraft heading |
 | Revolutions Per Minute (RPM) Indicator | Display measurements for engine revolutions per minute (RPM) in percentage of RPM |
 | Turn Coordinator | Display measurements on turn coordinator and inclinometer |
Topics
- Flight Instrument Gauges
Use the blocks for flight instrument gauges to visualize navigation variables, such as altitude and heading.
- Model a Quadcopter Based on Parrot Minidrones
Model a quadcopter in Simulink® based on Parrot® minidrones.
- Display Measurements with Cockpit Instruments
View signal data using any flight instrument blocks.
- Programmatically Interact with Gauge Band Colors
Programmatically interact with flight instrument gauge band colors.
Featured Examples

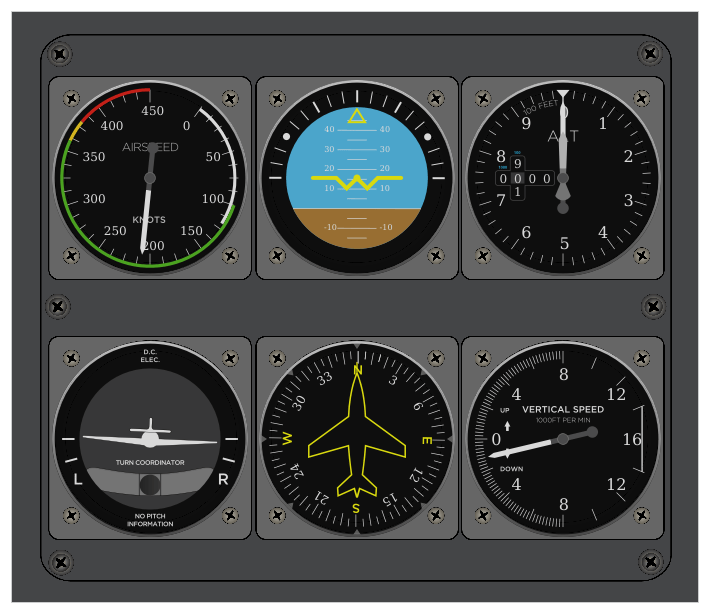

HL-20 with Flight Instrumentation Blocks
Simulate approach and landing flight phases of NASA HL-20 lifting body and controller using an auto-landing controller.
HL-20 with Flight Instrument Blocks and Visualization Using Unreal Engine
Model NASA HL-20 lifting body and controller modeled in Simulink and Aerospace Blockset™, using Unreal Engine® for visualization.
