Class: polarpattern

Show or hide peak marker table



showPeaksTable(p,vis) shows or hides a table of the peak values. By default, the peak values table is visible.

Input Arguments

expand all

Polar plot, specified as a scalar handle.

Show or hide peaks table, specified as 0 or 1.


expand all

Create a monopole antenna and calculate the directivity at 1 GHz.

m = monopole;
M = pattern(m,1e9,0,0:1:360);

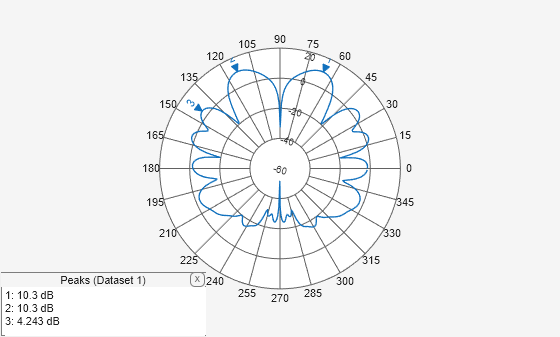

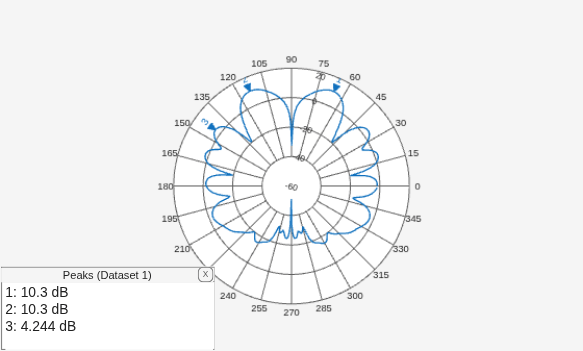

Plot the polar pattern and show three peaks of the antenna. When creating a polarpattern plot, if you specify the Peaks property, the peaks table is displayed by default.

P = polarpattern(M,'Peaks',3);

Figure Polar Measurement contains an object of type uicontainer.

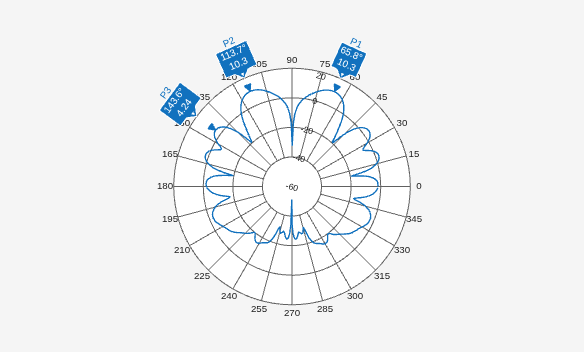

Hide the table. When the peaks table is hidden, the peak markers display the peak values.


Introduced in R2016a
