extrudeLinear

Linearly extrude 2-D shape along specified direction

Since R2023b

Syntax

extrudeLinear(shape,height)

extrudeLinear(___,Name=Value)

Description

extrudeLinear(shape,height) linearly extrudes the 2-D shape up to the specified height along the z-axis.

extrudeLinear(___,Name=Value) linearly extrudes the 2-D shape up to the specified height with additional options specified by one or more Name-Value Arguments.

Examples

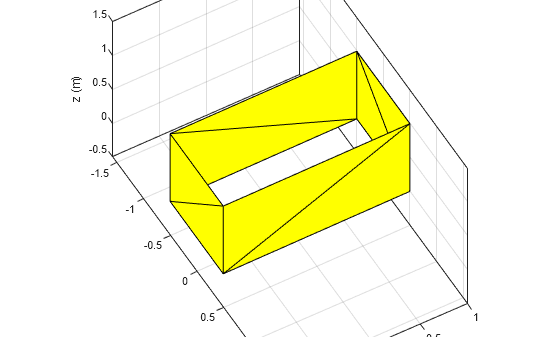

Linearly Extrude Shape

Extrude a rectangle linearly for a height of 1 m.

rect = shape.Rectangle;
extrudeLinear(rect,1);
view([60.35 50.92])

Input Arguments

shape — Shape to extrude

2-D shape object

Shape to extrude, specified as a 2-D shape object.

Example: shape.Rectangle

height — Extrusion height

positive scalar

Extrusion height, specified as a scalar in meters.

Example: 2

Data Types: double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: Twist=1

Twist — Twist angle

0 (default) | positive scalar in [0,360] range

Twist angle, specified as a scalar in the [0,360] degrees range. Specify this argument to twist the shape by specified angle during the extrusion up to the extrusion height.

Example: 15

Data Types: double

Direction — Direction to extrude shape

[0 0 1] (default) | three-element vector

Direction to extrude the shape, specified as a three-element vector of Cartesian coordinates in meters of a point in space. The extrusion direction is determined by the line joining the origin to this specified point in space.

Example: [0 1 1]

Data Types: double

Scale — Scaling factor of shape

1 (default) | positive scalar | two-element vector

Scaling factor of the shape, specified as either a positive scalar or a two-element vector. For a scalar value, the extrusion shape is scaled by the specified factor up to the extrusion height. For a vector value, the first element is the scaling factor along the x-axis, while the second element is the scaling factor along the y-axis for the extrusion shape.

Example: 3

Example: [3 5]

Data Types: double

NumSegments — Number of divisions along extrusion height

1 (default) | positive integer scalar

Number of divisions along the extrusion height, specified as a positive scalar.

Example: 5

Data Types: double

Caps — Option to put cap enclosure for extruded shape

false (default) | true | 0 | 1

Option to put cap enclosure for extruded shape, specified as false or 0 for no caps, and true or 1 for capping the extruded shape.

Example: true

Data Types: double | logical

Version History

Introduced in R2023b
