Design, Analyze, and Export 1-by-2 H-Notch Linear Array
This step of the tutorial shows how to design, analyze, and export a 1-by-2 H-notch linear array.
Design 1-by-2 H-Notch Linear Antenna Array

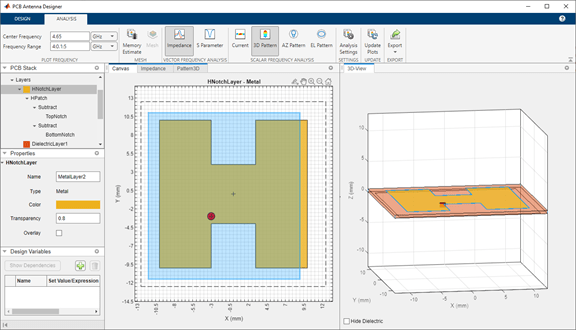

HNotchLayer in the PCB Stack pane and drag the axes to create a selection box. Drag the axes until the selection box encloses
Click Copy on the Design tab to copy the layers enclosed in the selection box and click Paste to create the

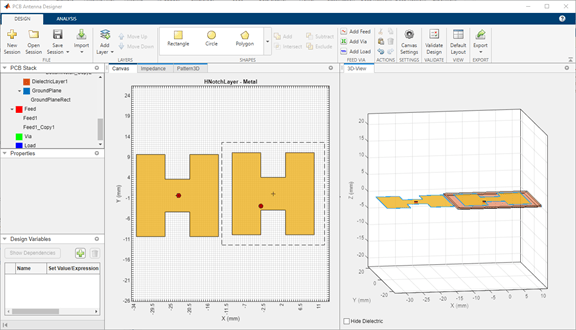

HPatch_Copy(1) layer and drag it to place it to adjacent to the
Validate Design for Errors

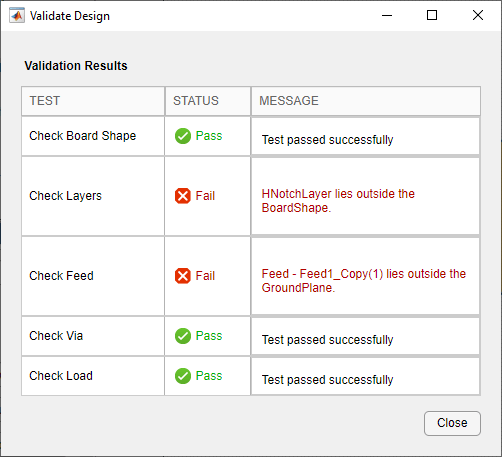

Click Validate Design on the toolbar to validate your board shape, layers, feed, via, and load. The Check Layers and Check Feed validation failed because
Feed1_Copy(1) lie outside

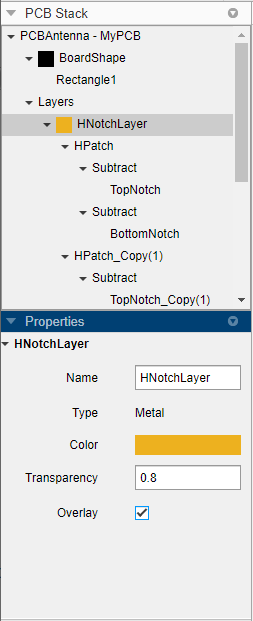

HNotchLayer and then select the Overlay check box in the Properties pane to create an image of
HNotchLayer in the canvas.

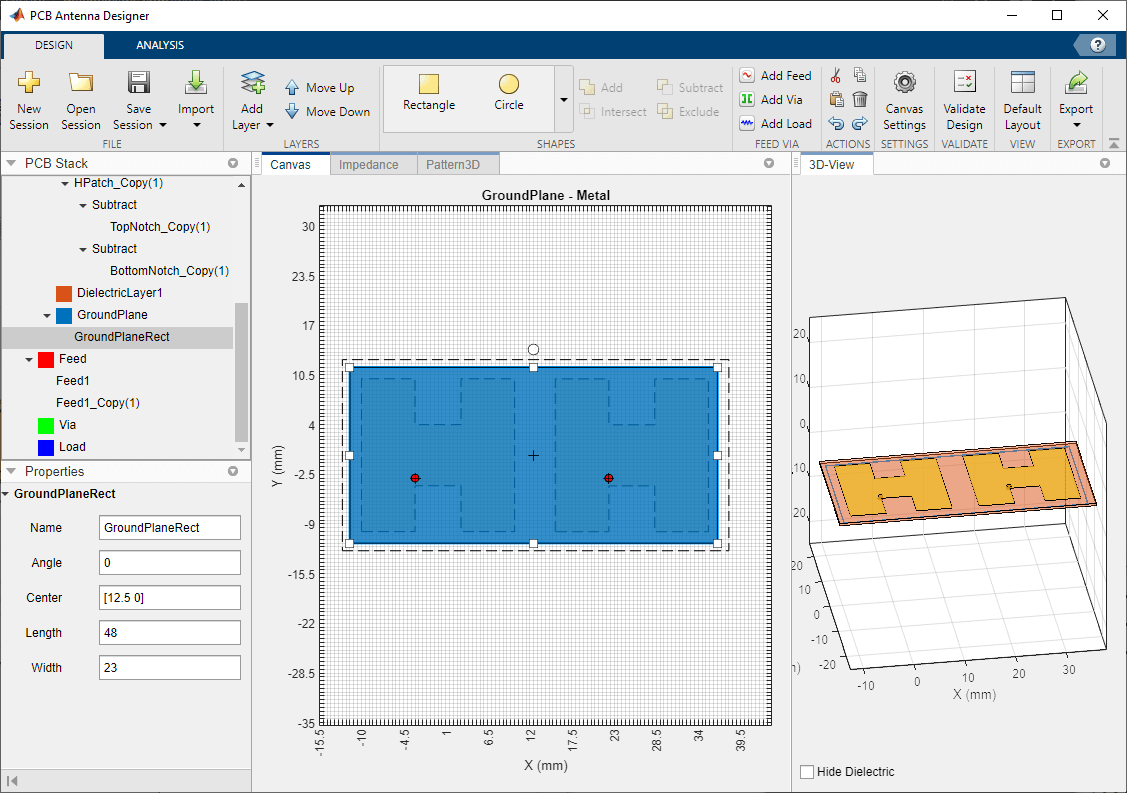

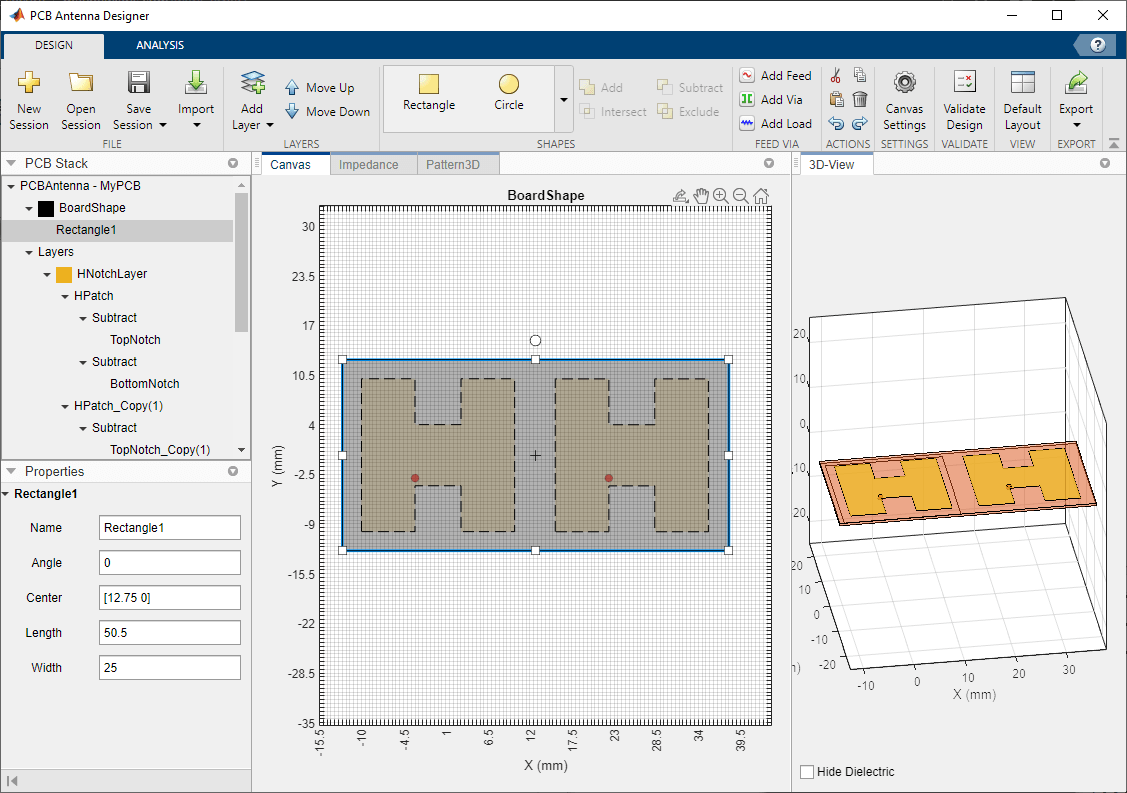

Rectangle1 under BoardShape on the canvas and use the marker on the right to change the shape of
BoardShape such that it encloses the
Repeat the procedure with the
BoardShape now encloses the
HNotchLayer. You can change the layer dimensions using the Properties pane.
Validate Design for Errors

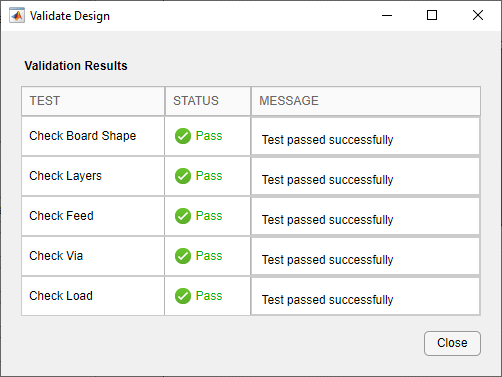

Click Validate Design to check for issues in the design. The design is validated with no errors.
Click Update Plots in the Analysis tab to update the analysis results. This updates all the analysis plots in the app for the design of a 1-by-2 H-notch linear array.

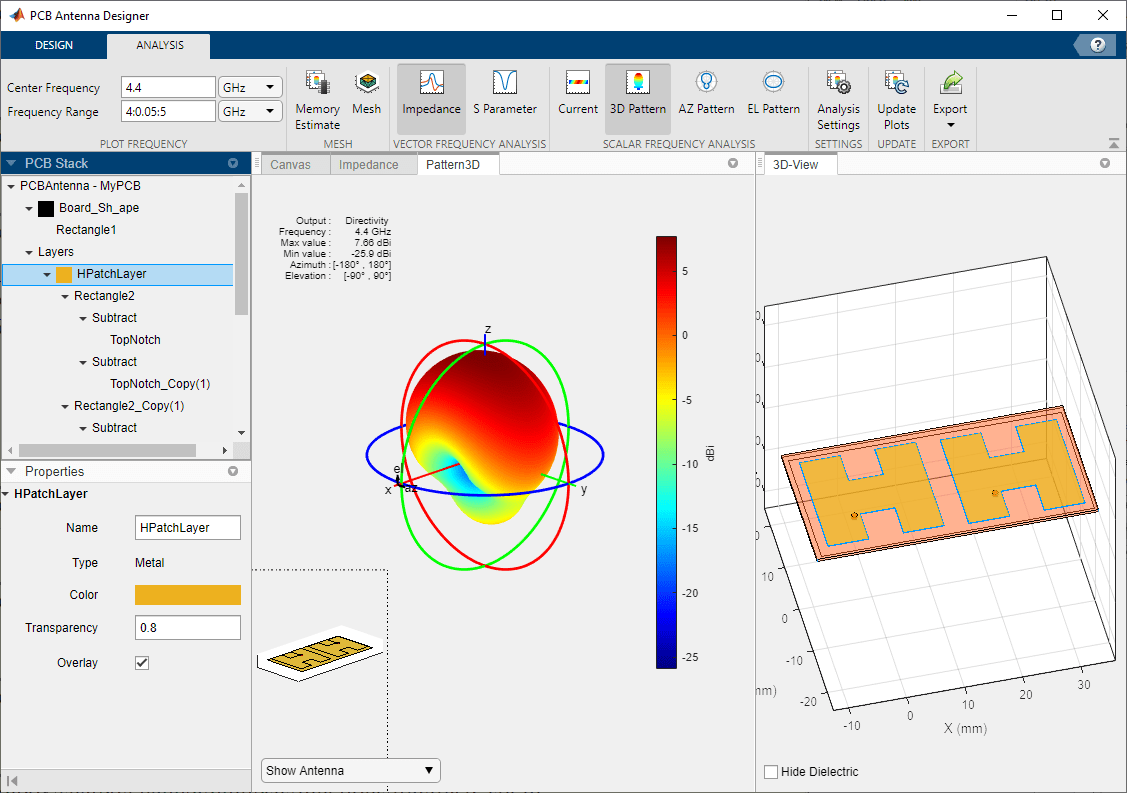

The pattern for the antenna is more directional with a higher gain compared to the H-notch patch unit element. The directivity of the 1-by-2 H-notch linear array is 7.66 dBi.
Export Your Design to Gerber Files

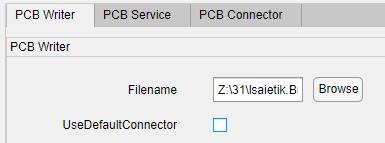

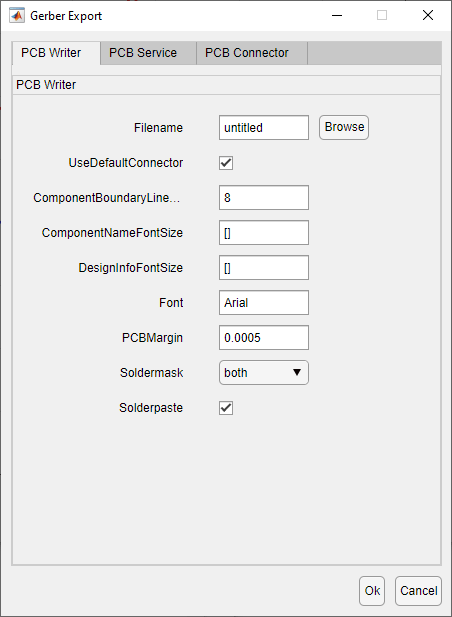

In the Analysis tab, click Export and then select Export as Gerber File. In the Gerber Export dialog box, select Browse in the PCB Writer tab to select the directory in which you want the Gerber files to be stored. Clear the UseDefaultConnector check box.

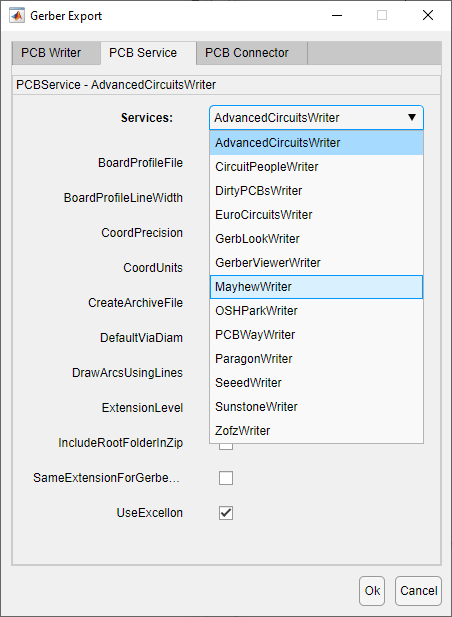

In the PCB Services tab, under Services, select
MayhewWriter. The PCB writer uses the selected service to create the Gerber files.
In the PCB Connector tab, clear the UseDefaultConnector check box.

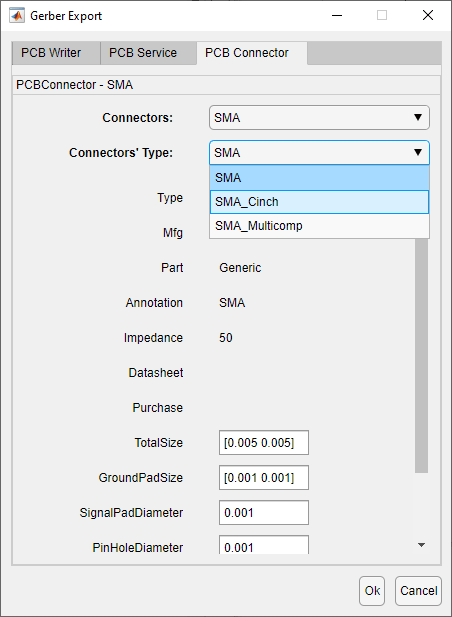

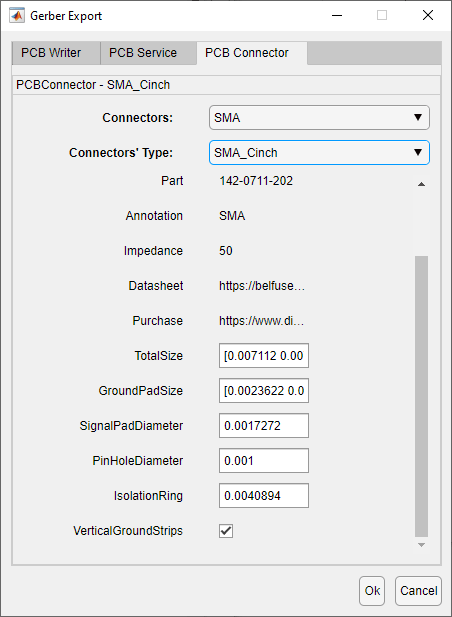

In the PCB Connector tab, set Connectors to
SMA and Connectors' Type to
The PinHoleDiameter is of the same value as the FeedDiameter. Click OK to generate the Gerber files.

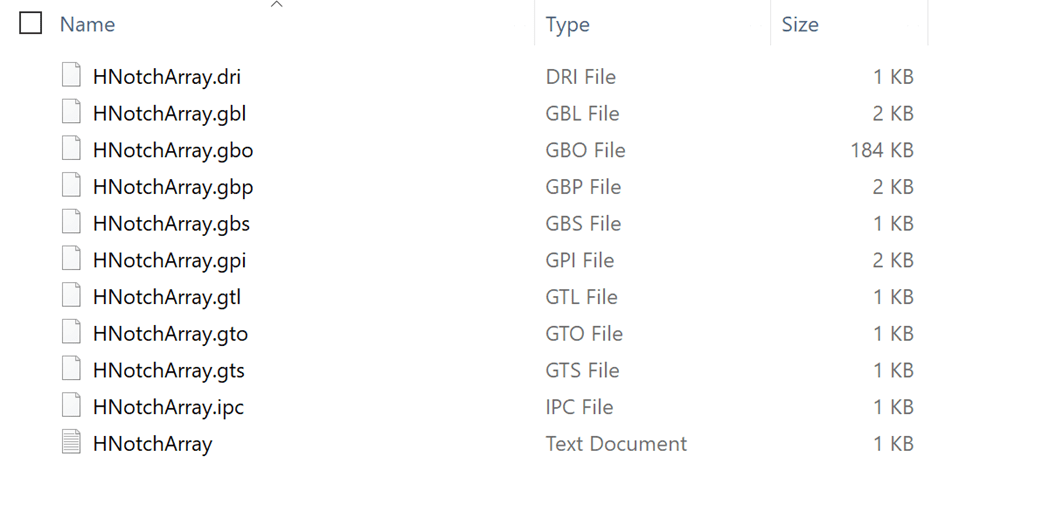

The generated Gerber files are stored in the directory you selected in the PCB Writer tab.

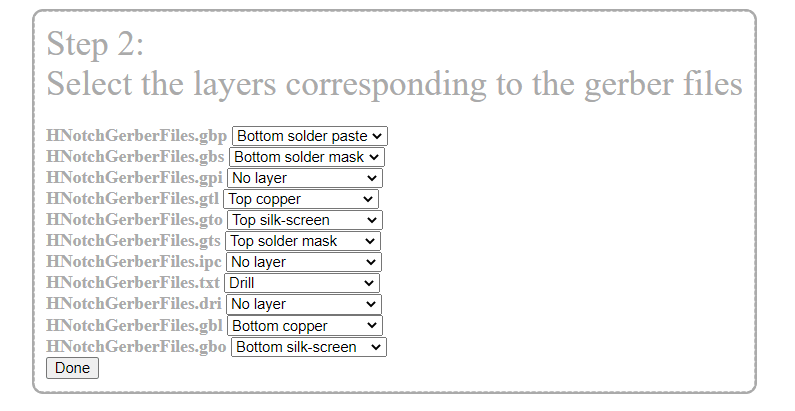

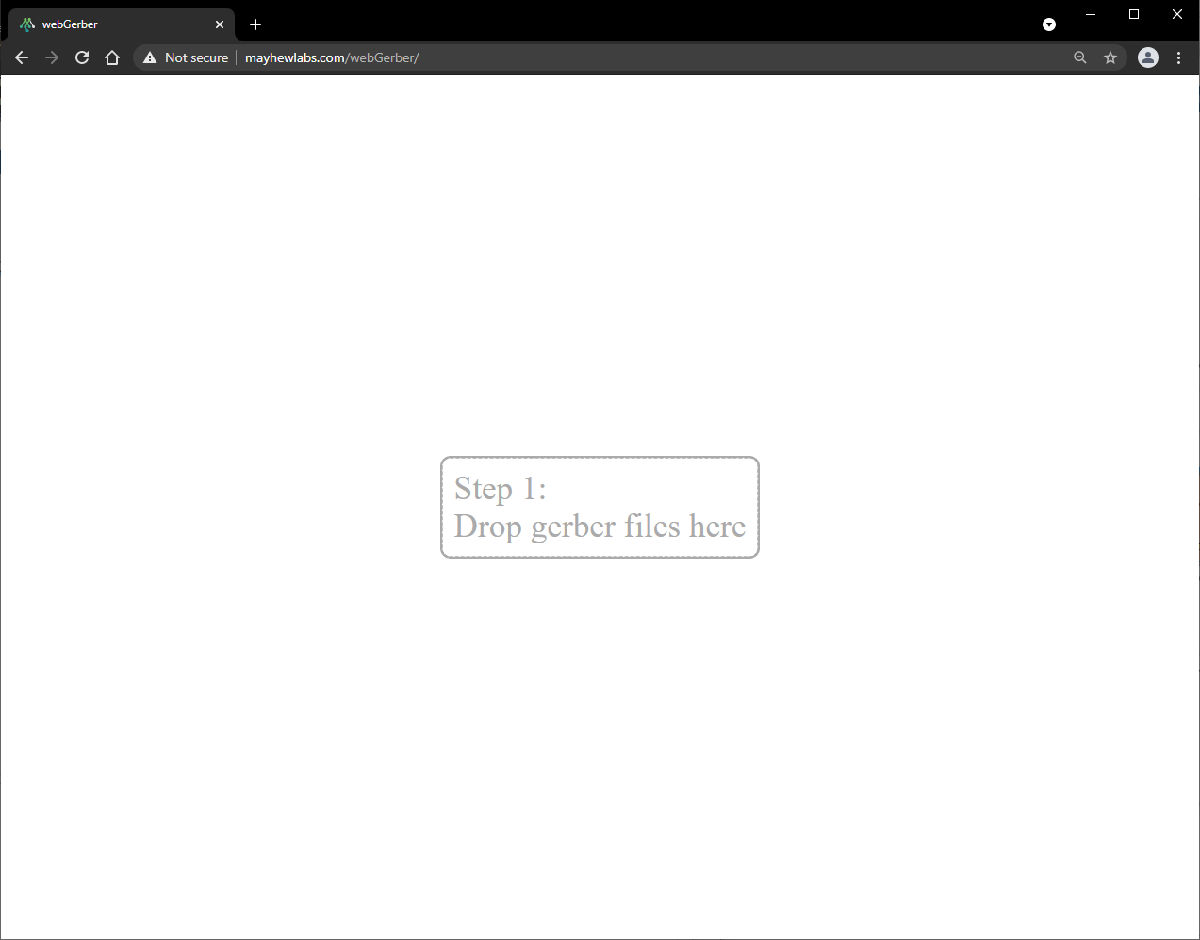

Open mayhewlabs.com/webGerber from your browser. Drag and drop the Gerber files from the directory and select Done.

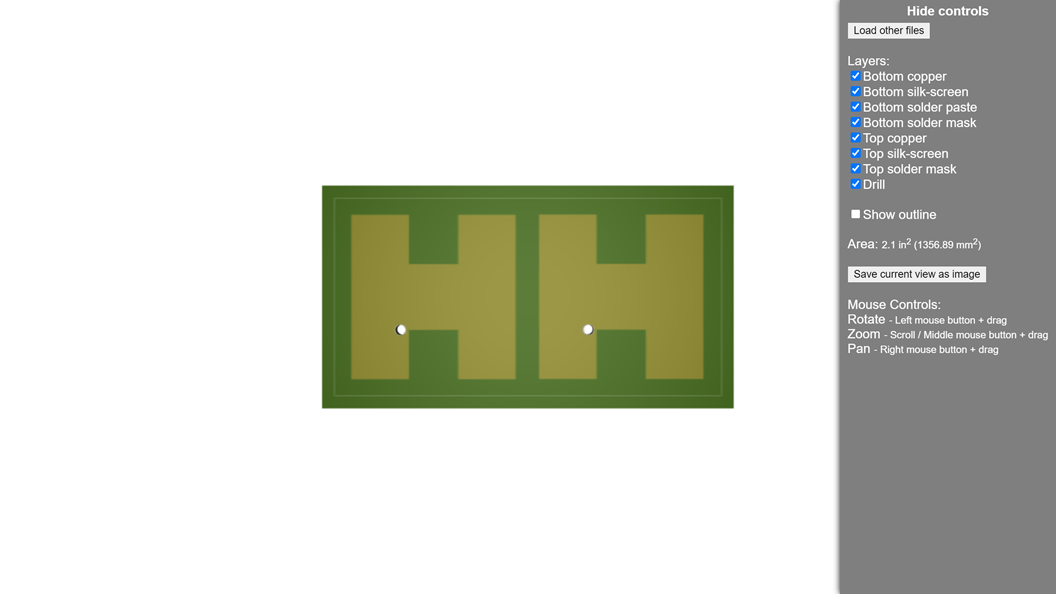

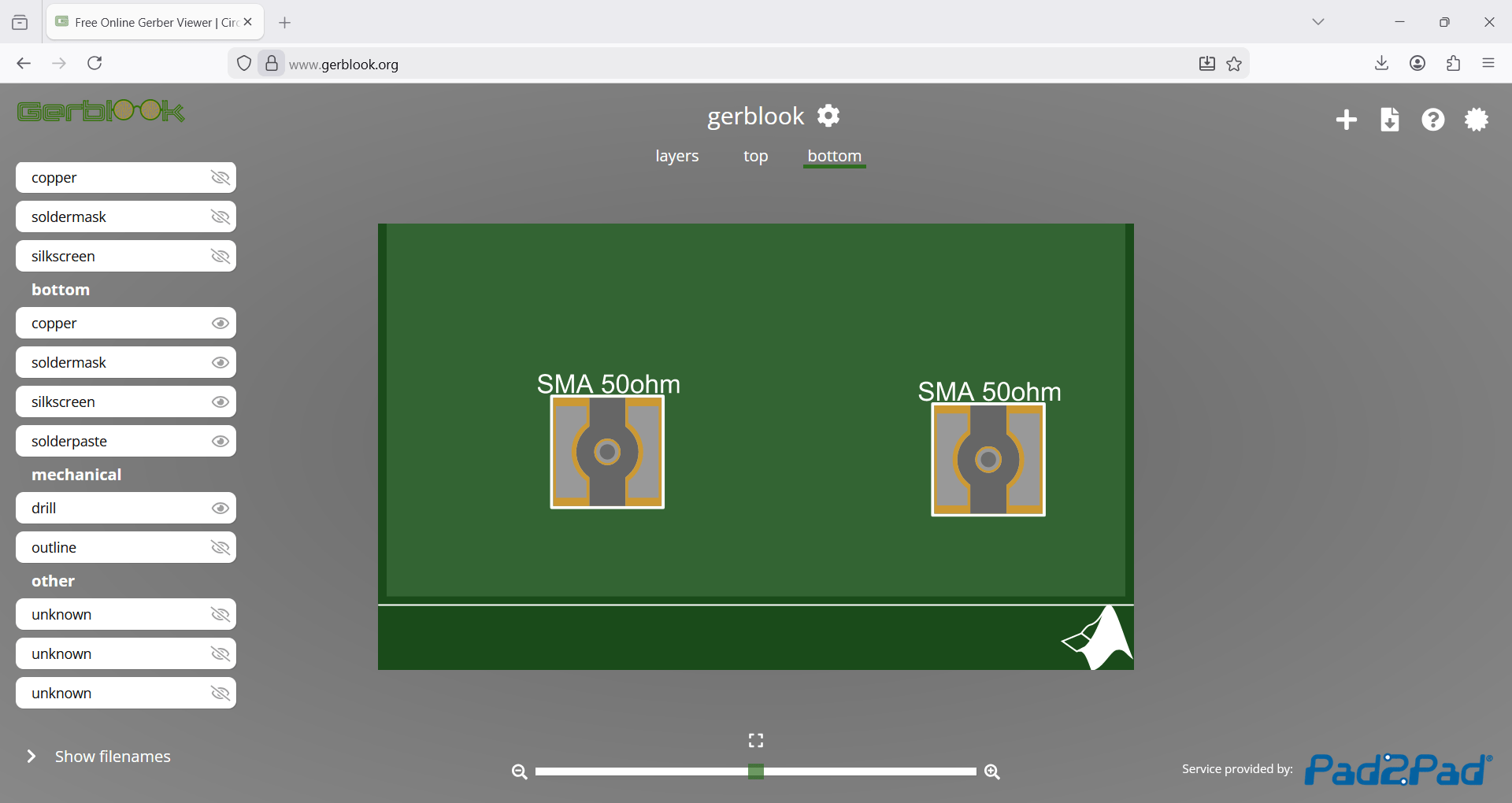

The Gerber files are displayed in the Gerber viewer. You can use the Gerber files to fabricate of your 1-by-2 H-notch linear array.
You can also export your design to the MATLAB® workspace or MATLAB script by selecting Export to MATLAB Workspace or Export to MATLAB Script under Export in the Design or Analysis tab.
