Desktop Real-Time Audio Acceleration with MATLAB Coder
This example shows how to accelerate a real-time audio application using C code generation with MATLAB® Coder™. You must have the MATLAB Coder™ software installed to run this example.
Replacing parts of your MATLAB code with an automatically generated MATLAB executable (MEX-function) can speed up simulation. Using MATLAB Coder, you can generate readable and portable C code and compile it into a MEX-function that replaces the equivalent section of your MATLAB algorithm.
This example showcases code generation using an audio notch filtering application.
A notch filter is used to eliminate a specific frequency from a signal. Typical filter design parameters for notch filters are the notch center frequency and the 3 dB bandwidth. The center frequency is the frequency at which the filter has a linear gain of zero. The 3 dB bandwidth measures the frequency width of the notch of the filter computed at the half-power or 3 dB attenuation point.
The helper function used in this example is
helperAudioToneRemoval. The function reads an audio signal corrupted by a 250 Hz sinusoidal tone from a file.
helperAudioToneRemoval uses a notch filter to remove the interfering tone and writes the filtered signal to a file.

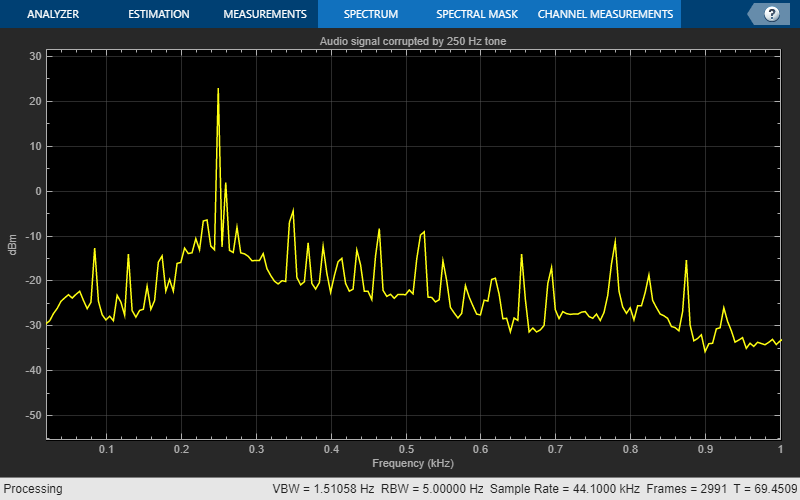

You can visualize the corrupted audio signal using a spectrum analyzer.
reader = dsp.AudioFileReader("guitar_plus_tone.ogg"); scope = spectrumAnalyzer(SampleRate=reader.SampleRate, ... RBWSource="property",RBW=5, ... PlotAsTwoSidedSpectrum=false, ... FrequencySpan="start-and-stop-frequencies", ... StartFrequency=20, ... StopFrequency=1000, ... Title="Audio signal corrupted by 250 Hz tone"); while ~isDone(reader) audio = reader(); scope(audio(:,1)); end
C Code Generation Speedup
Measure the time it takes to read the audio file, filter out the interfering tone, and write the filtered output using MATLAB code.
tic helperAudioToneRemoval t1 = toc; fprintf("MATLAB Simulation Time: %d\n",t1)
MATLAB Simulation Time: 2.732519e+00
Next, generate a MEX-function from
helperAudioToneRemoval using the MATLAB Coder function,
codegen (MATLAB Coder).
Code generation successful.
Measure the time it takes to execute the MEX-function and calculate the speedup gain with a compiled function.
tic helperAudioToneRemoval_mex t2 = toc; fprintf("Code Generation Simulation Time: %d\n",t2)
Code Generation Simulation Time: 9.064711e-01
fprintf("Speedup factor: %6.2f\n",t1/t2)
Speedup factor: 3.01
