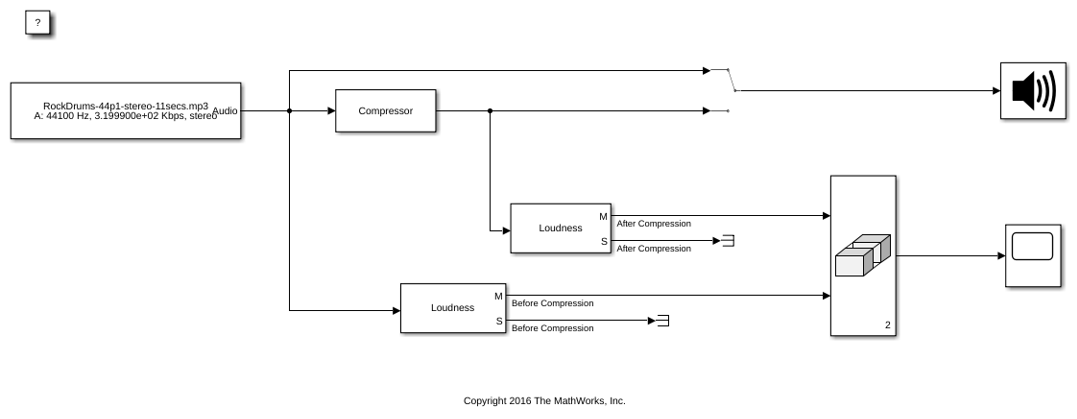

Measure momentary and short-term loudness before and after compression of a streaming audio signal in Simulink®.
1. Open the Time Scope and Compressor blocks.
2. Run the model. To switch between listening to the compressed signal and the original signal, double-click the switch.

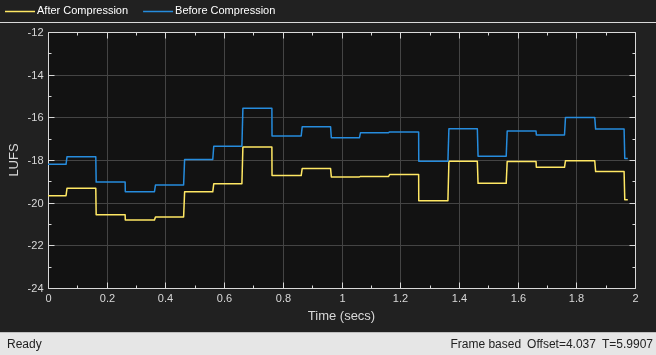

3. Observe the effect of compression on loudness by tuning the Compressor block parameters and viewing the momentary loudness on the Time Scope block.
4. Stop the model. For both Loudness blocks, replace momentary loudness with short-term loudness as input to the Matrix Concatenate block. Run the model again and observe the effect of compression on short-term loudness.
