SI Engine Dual-Independent Cam Phaser Air Mass Flow Model

To calculate intake air mass flow for an engine equipped with cam phasers, you can configure the spark-ignition (SI) engine with a dual-independent cam phaser intake air mass flow model. As illustrated, the spark-ignition (SI) engine intake air mass flow calculation consists of these steps:

  • Collecting physical measurements

  • Estimating the ideal trapped mass

  • Correcting the trapped mass

  • Calculating the intake air mass flow

The dual-independent cam phaser intake air mass flow model implements equations that use these variables.

Mtrapped

Estimated ideal trapped mass

TMcorr

Trapped mass correction multiplier

TMflow

Flow rate equivalent to corrected trapped mass at the current engine speed

m˙intkideal

Engine intake air mass flow at arbitrary cam phaser angles

m˙intkideal

Engine intake port mass flow at arbitrary cam phaser angles

m˙air

Engine intake air mass flow final correction at steady-state cam phaser angles

m˙intk

Engine intake port mass flow at steady-state cam phaser angles

yintk,air

Engine intake manifold air mass fraction

MAPIVC

Intake manifold pressure at IVC

MATIVC

Intake manifold temperature at IVC

MNom

Nominal engine cylinder intake air mass at standard temperature and pressure, piston at bottom dead center (BDC) maximum volume

IAT

Intake air temperature

N

Engine speed

Ncyl

Number of engine cylinders

VIVC

Cylinder volume at IVC

Vd

Displaced volume

Rair

Ideal gas constant

PAmb

Ambient pressure

Tstd

Standard temperature

Pstd

Standard pressure

ρnorm

Normalized density

φICP

Measured intake cam phaser angle

φECP

Exhaust cam phaser angle

Lideal

Engine load (normalized cylinder air mass) at arbitrary cam phaser angles, uncorrected for final steady-state cam phaser angles

L

Engine load (normalized cylinder air mass) at arbitrary cam phaser angles, corrected for final steady-state cam phaser angles

Cps

Crankshaft revolutions per power stroke

fVivc

Cylinder volume at IVC table

fTMcorr

Trapped mass correction table

fairideal

Intake air mass flow table

faircorr

Intake air mass flow correction table

Collect Physical Measurements

In the SI engine model, the dual-independent cam phaser intake air mass flow model requires these physical measurements:

  • Intake manifold temperature and pressure at intake valve closing (IVC) condition

  • Intake cam phase angle

  • Exhaust cam phase angle

  • Engine speed

  • Ambient pressure and temperature

  • Intake air mass flow, from one or more of the following

    • Tank air meter

    • Wide range air-fuel sensor and fuel-flow meter

    • Wide range air-fuel sensor and injector pulse-width

Estimate Ideal Trapped Mass

The dual-independent cam phaser intake air mass flow model uses the Ideal Gas Law to estimate the ideal trapped mass at intake manifold conditions. The calculation assumes the cylinder pressure and temperature at IVC equal the intake manifold pressure and temperature.

MtrappedMAPIVCVIVCRairMATIVC

For engines with variable intake cam phasing, the trapped volume at IVC varies.

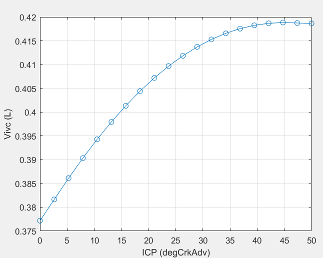

The cylinder volume at intake valve close table (IVC), fVivc is a function of the intake cam phaser angle

VIVC=fVivc(φICP)

where:

  • VIVC is cylinder volume at IVC, in L.

  • φICP is intake cam phaser angle, in crank advance degrees.

Correct Trapped Mass

The dual-independent cam phaser intake air mass flow model uses a correction factor to account for the difference between the ideal trapped mass in the cylinder and the actual trapped mass. The trapped mass correction factor is a lookup table that is a function of the normalized density and engine speed.

ρnorm=MAPIVCIATPAmbMATIVC

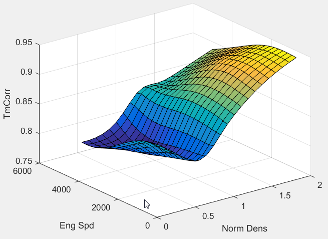

The trapped mass correction factor table, fTMcorr, is a function of the normalized density and engine speed

TMcorr=fTMcorr(ρnorm, N)

where:

  • TMcorr, is trapped mass correction multiplier, dimensionless.

  • ρnorm is normalized density, dimensionless.

  • N is engine speed, in rpm.

  • Normalized density accounts for the throttle position independent of a given altitude.

  • Engine speed accounts for the pulsation effects of the piston movement.

  • Ambient pressure is measured by a sensor on the electronic control unit (ECU) or estimated using an inverse throttle valve model.

  • The ECU estimates or measures intake air temperature (IAT) upstream of the throttle.

Trapped mass flow is expressed as a flow rate in grams per second (g/s). The trapped mass flow is the maximum gas mass flow through the engine when no residual gases remain in the cylinder at the end of the exhaust stroke.

TMflow=(1000gkg)NcylTMcorrMtrappedN(60smin)Cps

Calculate Air Mass Flow

To determine the engine intake air mass flow at arbitrary cam phase angles, the dual-independent cam phaser air mass flow model uses a lookup table.

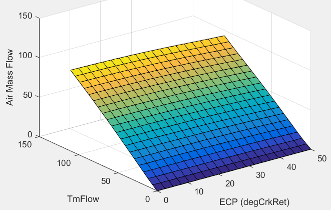

The phaser intake mass flow model lookup table is a function of exhaust cam phaser angles and trapped air mass flow

m˙intkideal=fintkideal(φECP,TMflow)

where:

  • m˙intkideal is engine intake port mass flow at arbitrary cam phaser angles, in g/s.

  • φECP is exhaust cam phaser angle, in degrees crank retard.

  • TMflow is flow rate equivalent to corrected trapped mass at the current engine speed, in g/s.

  • The exhaust cam phasing has a significant effect on the fraction of burned gas. During the exhaust stroke, exhaust cam-phasing affects the exhaust valve position at exhaust valve closing (EVC) relative to the piston position. A retarded (late) exhaust cam phase angle moves EVC past piston top dead center (TDC), causing the exhaust gas to flow back from the manifold runner into the cylinder. This pull-back triggers the reburn of crevice volume gasses, reducing nitric oxide and nitrogen dioxide emissions (NOx) via charge temperature reduction and hydrocarbon (HC) emissions. Exhaust temperature and back pressure affect exhaust gas back-flow and exhaust cam phaser timing. Exhaust gas temperature and pressure correlate to trapped mass flow. Since at least 80% of trapped mass flow is unburned air, air mass flow is highly correlated to trapped mass flow.

  • The unburned air mass flow determines the engine load and open-loop fuel control to achieve a target air-fuel ratio (AFR).

  • The lookup table allows arbitrary cam phaser position combinations that can occur during transient engine operations when the phasers are moving from one target position to another.

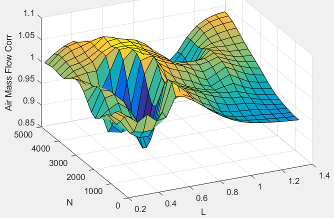

The intake air mass flow correction lookup table, faircorr, is a function of ideal load and engine speed

m˙air=m˙intkidealfaircorr(Lideal,N)

where:

  • Lideal is engine load (normalized cylinder air mass) at arbitrary cam phaser angles, uncorrected for final steady-state cam phaser angles, dimensionless.

  • N is engine speed, in rpm.

  • m˙air is engine intake air mass flow final correction at steady-state cam phaser angles, in g/s.

  • m˙intkideal is engine intake port mass flow at arbitrary cam phaser angles, in g/s.

  • To calculate the engine intake port mass flow, the engine model uses this equation.

    m˙intk=m˙airyintk,air

  • Ideal load is the normalized engine cylinder unburned intake air mass before the final correction. To calculate ideal load, the model divides the unburned intake air mass by the nominal cylinder intake air mass. The nominal cylinder intake air mass is the intake air mass (kg) in a cylinder at piston bottom dead center (BDC) with air at standard temperature and pressure:

     MNom=PstdVdNcylRairTstdLideal=(60smin)Cpsm˙intkidealyintk,air(1000gkg)NcylNMNom

  • The final engine load is expressed by

    L=(60smin)Cpsm˙air(1000gKg)NcylNMNom
