mavolcanoplot
Create significance versus gene expression ratio (fold change) scatter plot of microarray data
Syntax
mavolcanoplot(
DataX, DataY,
PValues
)
SigStructure
= mavolcanoplot(DataX, DataY, PValues
)
... mavolcanoplot(..., 'Labels', LabelsValue
,
...)
... mavolcanoplot(..., 'LogTrans', LogTransValue
,
...)
... mavolcanoplot(..., 'PCutoff', PCutoffValue
, ...)
... mavolcanoplot(..., 'Foldchange', FoldchangeValue
,
...)
... mavolcanoplot(..., 'PlotOnly', PlotOnlyValue
,
...)
Input Arguments
DataX , DataY  DataMatrix object, matrix, or vector of gene expression values from a single experimental condition. If a DataMatrix object or a matrix, each row is a gene, each column is a sample, and an average expression value is calculated for each gene. Note If the values in
PValues  Either of the following:

LabelsValue  Cell array of character vectors or string vector containing labels (typically gene
names or probe set IDs) for the data. After creating the plot, you
can click a data point to display the label associated with it. If
you do not provide a
LogTransValue  Property to control the conversion of data in
PCutoffValue  Lets you specify a cutoff pvalue to define data points that are statistically
significant. This value is displayed graphically as a horizontal
line on the plot. Default is Note You can also change the pvalue cutoff interactively after creating the plot.
FoldchangeValue  Lets you specify a ratio fold change to define data points
that are differentially expressed. Default is Note You can also change the fold change interactively after creating the plot.
PlotOnlyValue  Controls the display of the volcano plot without user
interface components. Choices are Note If you set the
Output Arguments
SigStructure  Structure containing information for genes that are considered to be both statistically significant (above the pvalue cutoff) and significantly differentially expressed (outside of the fold change values). The fields are listed below.
Description
mavolcanoplot(
creates a
scatter plot of gene expression data, plotting significance versus fold change of gene
expression ratios of two data sets, DataX, DataY,
PValues
)DataX
and
DataY
. It plots significance as the
–log_{10} (pvalue) from the input,
PValues
. DataX
and
DataY
can be vectors, matrices, or DataMatrix objects.
PValues
is a column vector or DataMatrix object.
returns a structure
containing information for genes that are considered to be both statistically
significant (above the pvalue cutoff) and significantly differentially
expressed (outside of the fold change values). The fields within SigStructure
= mavolcanoplot(DataX, DataY, PValues
)SigStructure
are
sorted by pvalue and include:
Name
PCutoff
FCThreshold
GeneLabels
PValues
FoldChanges
Note
The fields PValues
and FoldChanges
will
be either vectors or DataMatrix objects depending on the type of input PValues
.
... mavolcanoplot(..., '
defines optional properties that use property name/value
pairs in any order. These property name/value pairs are as follows:PropertyName
', PropertyValue
,
...)
... mavolcanoplot(..., 'Labels',
lets you provide a cell array of character vectors or string vector containing labels
(typically gene names or probe set IDs) for the data. After creating the plot, you can
click a data point to display the label associated with it. If you do not provide a
LabelsValue
,
...)LabelsValue
, data points are labeled with row numbers
from DataX
and DataY
.
... mavolcanoplot(..., 'LogTrans',
controls the conversion of data from LogTransValue
,
...)DataX
and DataY
to
log_{2} scale. When LogTransValue
is true
, mavolcanoplot
converts
data from natural to log_{2} scale. Default is false
,
which assumes the data is already log_{2} scale.
... mavolcanoplot(..., 'PCutoff',
lets you specify a pvalue cutoff
to define data points that are statistically significant. This value
displays graphically as a horizontal line on the plot. Default is PCutoffValue
, ...)0.05
,
which is equivalent to 1.3010 on the –log_{10} (pvalue)
scale.
Note
You can also change the pvalue cutoff interactively after creating the plot.
... mavolcanoplot(..., 'Foldchange',
lets you specify a ratio fold change to
define data points that are differentially expressed. Fold changes
display graphically as two vertical lines on the plot. Default is FoldchangeValue
,
...)2
,
which corresponds to a ratio of 1 and –1 on a log_{2} (ratio)
scale.
Note
You can also change the fold change interactively after creating the plot.
... mavolcanoplot(..., 'PlotOnly',
controls the display of the volcano plot
without user interface components. Choices are PlotOnlyValue
,
...)true
or false
(default).
Note
If you set the 'PlotOnly'
property to true
,
you can still display labels for data points by clicking a data point,
and you can still adjust vertical fold change lines and the horizontal
pvalue cutoff line by clickdragging the lines.

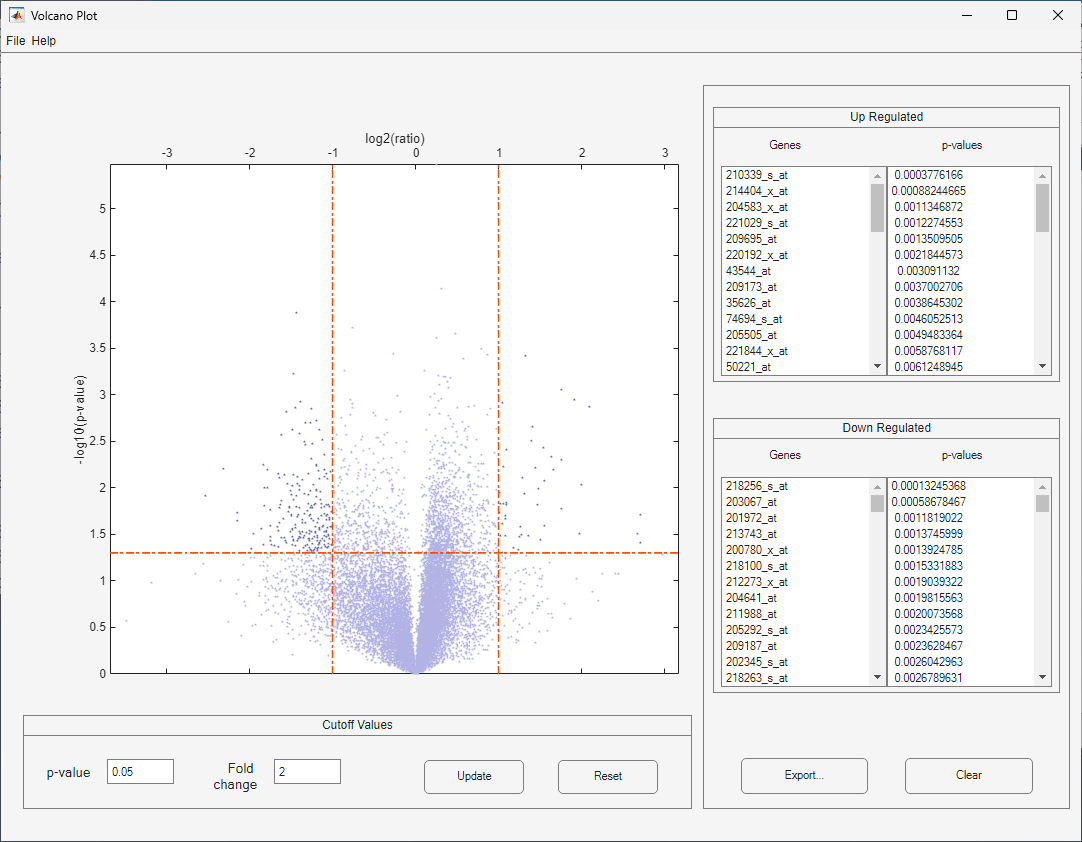

The volcano plot displays the following:
–log_{10} (pvalue) versus log_{2} (ratio) scatter plot of genes
Two vertical fold change lines at a fold change level of 2, which corresponds to a ratio of 1 and –1 on a log_{2} (ratio) scale. (Lines will be at different fold change levels, if you used the
'Foldchange'
property.)One horizontal line at the 0.05 pvalue level, which is equivalent to 1.3010 on the –log_{10} (pvalue) scale. (The line will be at a different pvalue level, if you used the
'PCutoff'
property.)
After you display the volcano scatter plot, you can interactively:
Adjust the vertical fold change lines by clickdragging one line or entering a value in the Fold Change text box.
Adjust the horizontal pvalue cutoff line by clickdragging or entering a value in the pvalue Cutoff text box.
Display labels for data points by clicking a data point.
Select a gene from the Up Regulated or Down Regulated list to highlight the corresponding data point in the plot. Press and hold Ctrl or Shift to select multiple genes.
Zoom the plot by selecting Tools > Zoom In or Tools > Zoom Out.
View lists of significantly upregulated and downregulated genes and their associated pvalues, and optionally, export the labels, pvalues, and fold changes to a structure in the MATLAB^{®} Workspace by clicking Export.
Examples
Load a MATfile, included with the Bioinformatics Toolbox™ software, which contains Affymetrix^{®} data variables, including
dependentData
andindependentData
, two matrices of gene expression values from two experimental conditions.load prostatecancerexpdata
Use the
mattest
function to calculate pvalues for the gene expression values in the two matrices.pvalues = mattest(dependentData, independentData);
Using the two matrices, the
pvalues
calculated bymattest
, and theprobesetIDs
column vector of labels provided, usemavolcanoplot

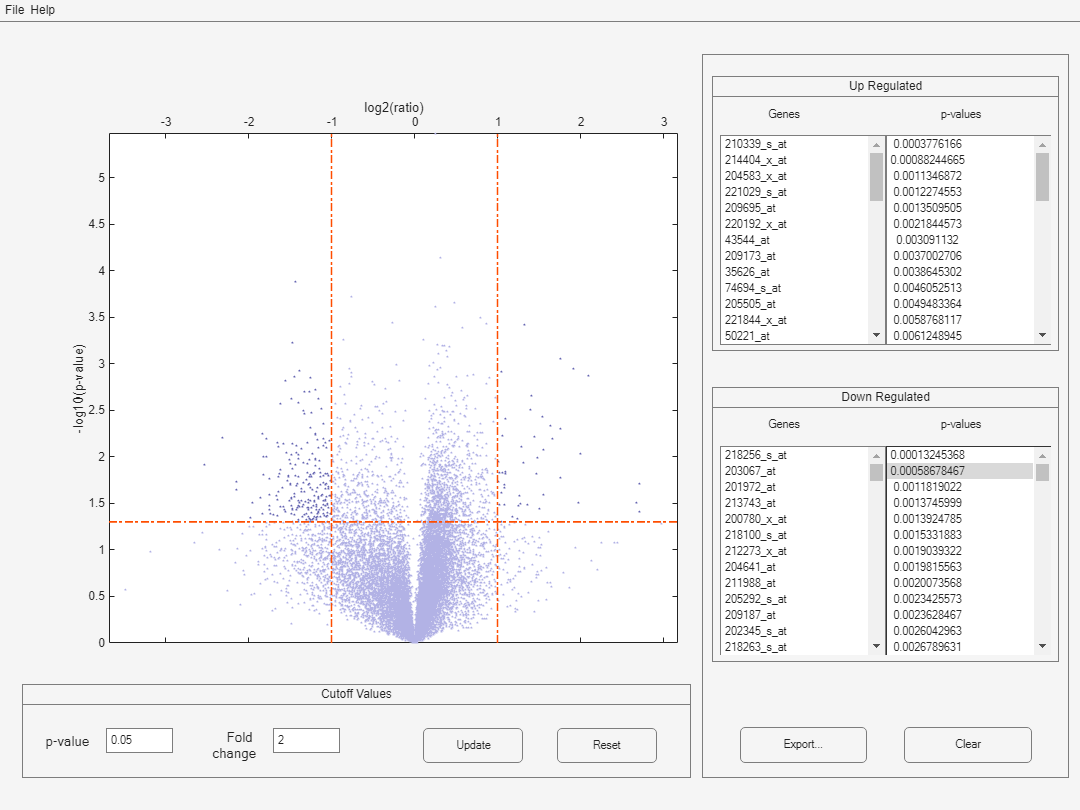

to create a significance versus gene expression ratio scatter plot of the microarray data from the two experimental conditions.mavolcanoplot(dependentData, independentData, pvalues,... 'Labels', probesetIDs)
View the volcano plot without the user interface components.

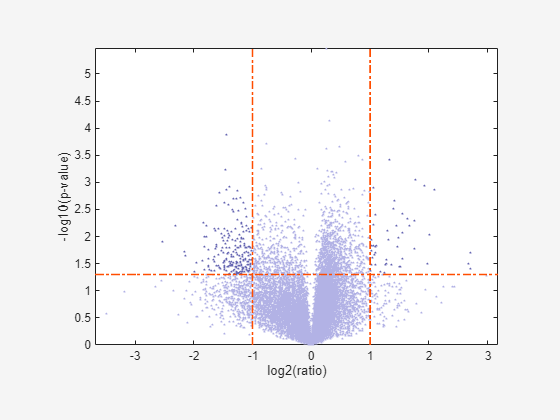

mavolcanoplot(dependentData, independentData, pvalues,... 'Labels', probesetIDs,'Plotonly', true)
The prostatecancerexpdata.mat
file used in
the previous example contains data from Best et al., 2005.
