# msresample

Resample signal with peaks

## Syntax

`[`

* Xout*,

*] = msresample(*

`Intensitiesout`

*,*

`X`

*,*

`Intensities`

*)*

`N`

msresample(..., 'Uniform',

*, ...)*

`UniformValue`

msresample(..., 'Range',

*, ...)*

`RangeValue`

msresample(..., 'RangeWarnOff',

*, ...)*

`RangeWarnOffValue`

msresample(..., 'Missing',

*, ...)*

`MissingValue`

msresample(..., 'Window',

*, ...)*

`WindowValue`

msresample(..., 'Cutoff',

*, ...)*

`CutoffValue`

msresample(..., 'ShowPlot',

*, ...)*

`ShowPlotValue`

## Arguments

`X` | Vector of separation-unit values for
a set of signals with peaks. The number of elements in the vector
equals the number of rows in the matrix .
The separation unit can quantify wavelength, frequency, distance,
time, or m/z depending on the instrument that generates the signal
data.`Intensities` |

`Intensities` | Matrix of intensity values for a set
of peaks that share the same separation-unit range. Each row corresponds
to a separation-unit value, and each column corresponds to either
a set of signals with peaks or a retention time. The number of rows
equals the number of elements in vector . `X` |

`N` | Positive integer specifying the total number of samples. |

## Description

**Tip**

Use the following syntaxes with data from any separation technique that produces signal data, such as spectroscopy, NMR, electrophoresis, chromatography, or mass spectrometry.

`[`

resamples
raw noisy signal data, * Xout*,

*] = msresample(*

`Intensitiesout`

*,*

`X`

*,*

`Intensities`

*)*

`N`

*. The output signal has*

`Intensities`

*samples with a spacing that increases linearly within the range*

`N`

`[min(``X`

)
max(`X`

)]

. *can be a linear or a quadratic function of its index. When you set input arguments such that down-sampling takes place,*

`X`

`msresample`

applies
a lowpass filter before resampling to minimize aliasing.For the antialias filter, `msresample`

uses
a linear-phase FIR filter with a least-squares error minimization.
The cutoff frequency is set by the largest down-sampling ratio when
comparing the same regions in the * X* and

*vectors.*

`Xout`

**Tip**

`msresample`

is particularly useful when you
have signals with different separation-unit vectors and you want to
match the scales.

`msresample(..., '`

calls * PropertyName*',

*, ...)*

`PropertyValue`

`msresample`

with optional properties
that use property name/property value pairs. You can specify one or
more properties in any order. Each *must be enclosed in single quotes and is case insensitive. These property name/property value pairs are as follows:*

`PropertyName`

```
msresample(..., 'Uniform',
```

, when * UniformValue*,
...)

`UniformValue`

is `true`

,
it forces the vector *to be uniformly spaced. The default value is*

`X`

`false`

.`msresample(..., 'Range', `

specifies a * RangeValue*,
...)

`1`

-by-`2`

vector
with the separation-unit range for the output signal, *.*

`Intensitiesout`

*must be within*

`RangeValue`

`[min(``X`

) max(`X`

)

].
Default value is the full range `[min(``X`

)
max(`X`

)]

. When *values exceed the values in*

`RangeValue`

*,*

`X`

`msresample`

extrapolates
the signal with zeros and returns a warning message.`msresample(..., 'RangeWarnOff', `

controls the return of a warning message when * RangeWarnOffValue*,
...)

*values exceed the values in*

`RangeValue`

*.*

`X`

*can be*

`RangeWarnOffValue`

`true`

or `false`

(default).`msresample(..., 'Missing', `

, when * MissingValue*,
...)

`MissingValue`

is `true`

,
analyzes the input vector, *, for dropped samples. The default value is*

`X`

`false`

. If the down-sample
factor is large, checking for dropped samples might not be worth the
extra computing time. Dropped samples can only be recovered if the
original separation-unit values follow a linear or a quadratic function
of the *vector index.*

`X`

`msresample(..., 'Window', `

specifies the window used when calculating parameters
for the lowpass filter. Enter * WindowValue*,
...)

`'Flattop'`

, `'Blackman'`

, `'Hamming`

',
or `'Hanning'`

. The default value is `'Flattop'`

.`msresample(..., 'Cutoff', `

specifies the cutoff frequency. Enter a scalar value
from * CutoffValue*,
...)

`0`

to `1`

(Nyquist frequency
or half the sampling frequency). By default, `msresample`

estimates
the cutoff value by inspecting the separation-unit vectors, *and*

`X`

*. However, the cutoff frequency might be underestimated if*

`XOut`

*has anomalies.*

`X`

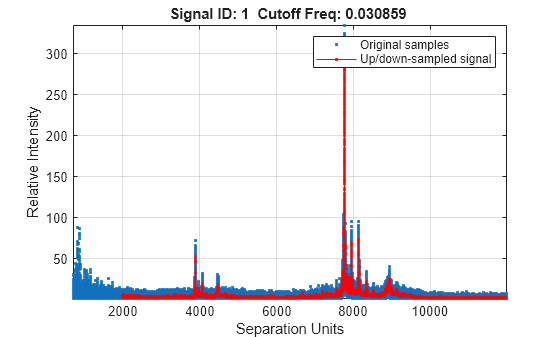

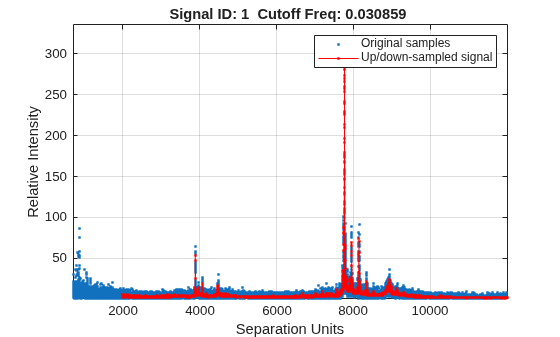

`msresample(..., 'ShowPlot', `

plots the original and the resampled signal. When * ShowPlotValue*,
...)

`msresample`

is
called without output arguments, the signals are plotted unless `ShowPlotValue`

is `false`

.
When `ShowPlotValue`

is `true`

,
only the first signal in *is plotted.*

`Intensities`

`ShowPlotValue`

can
also contain an index to one of the signals in *.*

`Intensities`

**Tip**

LC/MS data analysis requires extended amounts of memory from the operating system.

If you receive errors related to memory, try the following:

Increase the virtual memory (swap space) for your operating system as described in Resolve “Out of Memory” Errors.

If you receive errors related to Java

^{®}heap space, increase your Java heap space:If you have MATLAB

^{®}version 7.10 (R2010a) or later, see Java Heap Memory Preferences.If you have MATLAB version 7.9 (R2009b) or earlier, see https://www.mathworks.com/matlabcentral/answers/92813-how-do-i-increase-the-heap-space-for-the-java-vm-in-matlab.

## Examples

## Version History

**Introduced before R2006a**
