comm.HDLCRCGenerator

Generate CRC code bits and append to input data

Description

This HDL-optimized cyclic redundancy code (CRC) generator System object™ generates cyclic redundancy code (CRC) bits. Instead of frame processing, the HDLCRCGenerator System object processes streaming data. The object has frame synchronization control signals for both input and output data streams.

To generate cyclic redundancy code bits:

  1. Create the comm.HDLCRCGenerator object and set its properties.

  2. Call the object with arguments, as if it were a function.

To learn more about how System objects work, see What Are System Objects? (MATLAB).

Creation

Description

example

CRCGen = comm.HDLCRCGenerator creates an HDL-optimized CRC generator System object, CRCGen. This object generates CRC bits according to a specified generator polynomial and appends them to the input data.

CRCGen = comm.HDLCRCGenerator(Name,Value) sets properties using one or more name-value pairs. Enclose each property name in single quotes. For example,

CRCGen = comm.HDLCRCGenerator('Polynomial',[1 0 0 0 1 0 0 0 0], ...
'FinalXORValue',[1 1 0 0 0 0 0 0]);
specifies a CRC8 polynomial and an 8-bit value to XOR with the final checksum.

CRCGen = comm.HDLCRCGenerator(poly,Name,Value) sets the Polynomial property to poly, and the other specified property names to the specified values.

Properties

expand all

Unless otherwise indicated, properties are nontunable, which means you cannot change their values after calling the object. Objects lock when you call them, and the release function unlocks them.

If a property is tunable, you can change its value at any time.

For more information on changing property values, see System Design in MATLAB Using System Objects (MATLAB).

Generator polynomial, specified as a binary vector, with coefficients in descending order of powers. The vector length must be equal to the degree of the polynomial plus 1.

Initial conditions of the shift register, specified as a binary, double-precision or single-precision scalar or vector. If you specify this property as a vector, the vector length is the degree of the generator polynomial that you specify in the Polynomial property. If you specify this property as a scalar, the object expands the value to a vector of length equal to the degree of the generator polynomial.

Method of calculating checksum, specified as a logical scalar. When this property is true, the object uses the direct algorithm for CRC checksum calculations.

To learn about direct and non-direct algorithms, see Cyclic Redundancy Check Codes.

Input byte order, specified as a logical scalar. When this property is true, the object flips the input data on a bytewise basis before it enters the shift register.

Checksum byte order, specified as a logical scalar. When this property is true, the object flips the output CRC checksum around its center.

Checksum mask, specified as a binary, double- or single-precision data type scalar or vector. The object XORs the checksum with this value before appending the checksum to the input data. If you specify this property as a vector, the vector length is the degree of the generator polynomial that you specify in the Polynomial property. If you specify this property as a scalar, the object expands the value to a vector of length equal to the degree of the generator polynomial.

Usage

Description

[Y,startOut,endOut,validOut] = CRCn(X,startIn,endIn, validIn) generates CRC checksums for input message X based on control signals and appends the checksums to X.

Input Arguments

expand all

Input message, specified as a binary vector or a scalar integer representing several bits. For example, vector input [0,0,0,1,0,0,1,1] is equivalent to uint8 input 19.

If the input is a vector, the data type can be double or logical. If the input is a scalar, the data type can be unsigned integer or unsigned fixed-point with 0 fractional bits (fi([],0,N,0)).

X can be part or all of the message to be encoded.

The length of X must be less than or equal to the CRC length, and the CRC length must be divisible by the length of X.

The CRC length is the order of the polynomial that you specify in the Polynomial property.

Data Types: double | uint8 | uint16 | uint32 | logical | unsigned fi

Start of the input message, specified as a logical scalar.

End of the input message, specified as a logical scalar.

Validity of input data, specified as a logical scalar. When validIn is 1 (true), the object computes the CRC checksum for input X.

Output Arguments

expand all

Output message, consisting of X with appended checksum, returned as a scalar integer or binary column vector with the same width and data type as input X.

Start of the input message, returned as a logical scalar.

End of the input message, returned as a logical scalar.

Validity of input data, returned as a logical scalar. When validOut is 1 (true), the output data Y is valid.

Object Functions

To use an object function, specify the System object as the first input argument. For example, to release system resources of a System object named obj, use this syntax:

release(obj)

expand all

stepRun System object algorithm
releaseRelease resources and allow changes to System object property values and input characteristics
resetReset internal states of System object

Examples

expand all

Encode and decode a signal using the HDL-optimized CRC generator and detector System objects. This example shows how to include each object in a function for HDL code generation.

Create a 32-bit message to be encoded, in two 16-bit columns.

msg = randi([0 1],16,2);

Run for 12 steps to accommodate the latency of both objects. Assign control signals for all steps. The first two samples are the valid data, and the remainder are processing latency.

numSteps = 12;
startIn = logical([1 0 0 0 0 0 0 0 0 0 0 0]);
endIn   = logical([0 1 0 0 0 0 0 0 0 0 0 0]);
validIn = logical([1 1 0 0 0 0 0 0 0 0 0 0]);

Pass random input to the HDLCRCGenerator System object™ while it is processing the input message. The random data is not encoded because the input valid signal is 0 for steps 3 to 10.

randIn = randi([0, 1],16,numSteps-2);
dataIn = [msg randIn];

Write a function that creates and calls each System object™. You can generate HDL from these functions. The generator and detector objects both have a CRC length of 16 and use the default polynomial.

Note: This object syntax runs only in R2016b or later. If you are using an earlier release, replace each call of an object with the equivalent step syntax. For example, replace myObject(x) with step(myObject,x).

function [dataOut,startOut,endOut,validOut] = HDLCRC16Gen(dataIn,startIn,endIn,validIn)
%HDLCRC16Gen
% Generates CRC checksum using the comm.HDLCRCGenerator System object(TM)
% dataIn is a binary column vector.
% startIn, endIn, and validIn are logical scalar values.
% You can generate HDL code from this function.

  persistent crcg16;
  if isempty(crcg16)
    crcg16 = comm.HDLCRCGenerator()
  end
  [dataOut,startOut,endOut,validOut] = crcg16(dataIn,startIn,endIn,validIn);
end


function [dataOut,startOut,endOut,validOut,err] = HDLCRC16Det(dataIn,startIn,endIn,validIn)
%HDLCRC16Det
% Checks CRC checksum using the comm.HDLCRCDetector System object(TM)
% dataIn is a binary column vector.
% startIn, endIn, and validIn are logical scalar values.
% You can generate HDL code from this function.

  persistent crcd16;
  if isempty(crcd16)
    crcd16 = comm.HDLCRCDetector()
  end
  [dataOut,startOut,endOut,validOut,err] = crcd16(dataIn,startIn,endIn,validIn);
end


Call the CRC generator function. The encoded message is the original message plus a 16 bit checksum.

 for i =  1:numSteps
 [dataOutGen(:,i),startOutGen(i),endOutGen(i),validOutGen(i)] = ...
     HDLCRC16Gen(logical(dataIn(:,i)),startIn(i),endIn(i),validIn(i));
 end
crcg16 =

  comm.HDLCRCGenerator with properties:

            Polynomial: [1 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 1]
          InitialState: 0
          DirectMethod: false
          ReflectInput: false
    ReflectCRCChecksum: false
         FinalXORValue: 0

Add noise by flipping a bit in the message.

dataOutNoise = dataOutGen;
dataOutNoise(2,4) = ~dataOutNoise(2,4);

Call the CRC detector function. The output of the detector is the input message with the checksum removed. If the input checksum was not correct, the err flag is set with the last word of the output.

for i = 1:numSteps
[dataOut(:,i),startOut(i),endOut(i),validOut(i),err(i)] = ...
    HDLCRC16Det(logical(dataOutNoise(:,i)),startOutGen(i),endOutGen(i),validOutGen(i));
end
crcd16 =

  comm.HDLCRCDetector with properties:

            Polynomial: [1 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 1]
          InitialState: 0
          DirectMethod: false
          ReflectInput: false
    ReflectCRCChecksum: false
         FinalXORValue: 0

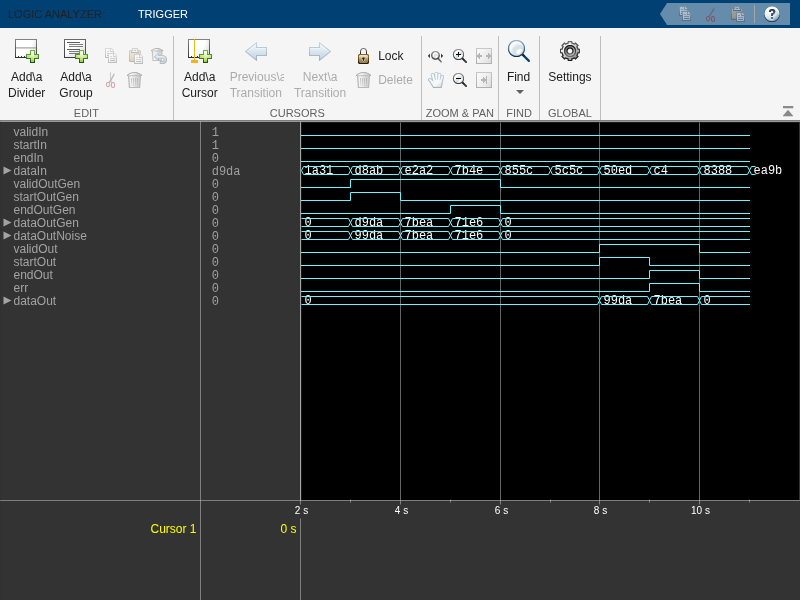

Use the Logic Analyzer to view the input and output signals.

channels = {'validIn','startIn','endIn',...
    {'dataIn','Radix','Hexadecimal'},...
    'validOutGen','startOutGen','endOutGen',...
    {'dataOutGen','Radix','Hexadecimal'},...
    {'dataOutNoise','Radix','Hexadecimal'},...
    'validOut','startOut','endOut','err',...
    {'dataOut','Radix','Hexadecimal'}};
la = dsp.LogicAnalyzer('Name','CRC Encode and Decode','NumInputPorts',length(channels),...
                      'BackgroundColor','Black','DisplayChannelHeight',8);

 for ii = 1:length(channels)
    if iscell(channels{ii})
        % Display data signals as hexadecimal integers
        c = channels{ii};
        modifyDisplayChannel(la,ii,'Name',c{1},c{2},c{3})
        % Convert binary column vector to integer
        dat2 = uint16(bi2de(eval(c{1})'));
        chanData{ii} = squeeze(dat2);
    else
        modifyDisplayChannel(la,ii,'Name',channels{ii})
        chanData{ii} = squeeze(eval(channels{ii})');
    end
 end
la(chanData{:})

Algorithms

expand all

Extended Capabilities

Introduced in R2012a
