Root locus design is a common control system design technique in which you edit the compensator gain, poles, and zeros in the root locus diagram.

As the open-loop gain, *k*, of a control system varies over a
continuous range of values, the root locus diagram shows the trajectories of the
closed-loop poles of the feedback system. For example, in the following tracking
system:

*P*(*s*) is the plant,
*H*(*s*) is the sensor dynamics, and
*k* is an adjustable scalar gain The closed-loop poles are the
roots of

$$q\left(s\right)=1+kP\left(s\right)H\left(s\right)$$

The root locus technique consists of plotting the closed-loop pole trajectories in the
complex plane as *k* varies. You can use this plot to identify the gain
value associated with a desired set of closed-loop poles.

This example shows how to design a compensator for an electrohydraulic servomechanism using root locus graphical tuning techniques.

**Plant Model**

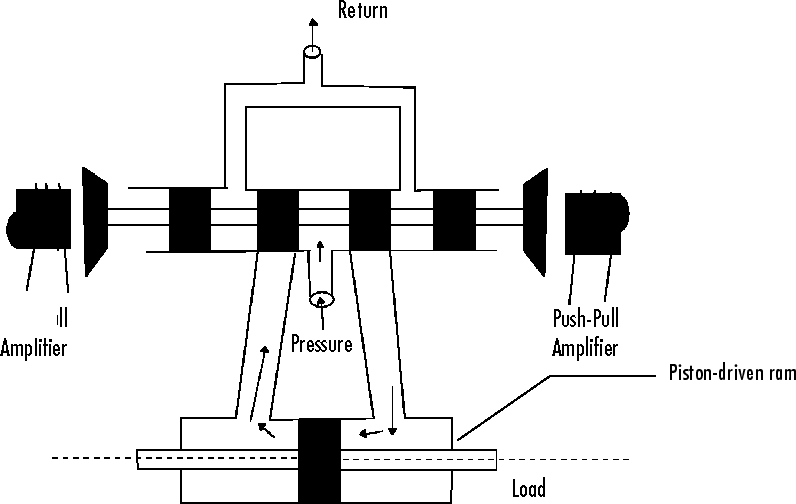

A simple version of an electrohydraulic servomechanism model consists of

A push-pull amplifier (a pair of electromagnets)

A sliding spool in a vessel of high-pressure hydraulic fluid

Valve openings in the vessel to allow for fluid to flow

A central chamber with a piston-driven ram to deliver force to a load

A symmetrical fluid return vessel

The force on the spool is proportional to the current in the electromagnet coil. As the spool moves, the valve opens, allowing the high-pressure hydraulic fluid to flow through the chamber. The moving fluid forces the piston to move in the opposite direction of the spool. For more information on this model, including the derivation of a linearized model, see [1].

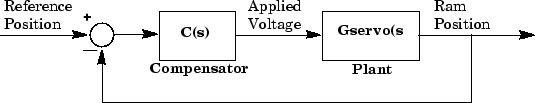

You can use the input voltage to the electromagnet to control the ram
position. When measurements of the ram position are available, you can use
feedback for the ram position control, as shown in the following, where
*Gservo* represents the servomechanism:

**Design Requirements**

For this example, tune the compensator,
*C*(*s*) to meet the following
closed-loop step response requirements:

The 2% settling time is less than 0.05 seconds.

The maximum overshoot is less than 5%.

**Open Control System Designer**

At the MATLAB^{®} command line, load a linearized model of the servomechanism,
and open **Control System Designer** in the root locus editor
configuration.

load ltiexamples Gservo controlSystemDesigner('rlocus',Gservo);

The app opens and imports `Gservo`

as the plant model for
the default control architecture, **Configuration
1**.

In **Control System Designer**, a **Root Locus
Editor** plot and input-output **Step
Response** open.

To view the open-loop frequency response and closed-loop step response
simultaneously, on the **Views** tab, click
**Left/Right**.

The app displays **Bode Editor** and **Step
Response** plots side-by-side.

In the closed-loop step response plot, the rise time is around two seconds, which does not satisfy the design requirements.

To make the root locus diagram easier to read, zoom in. In the
**Root Locus Editor**, right-click the plot area and
select **Properties**.

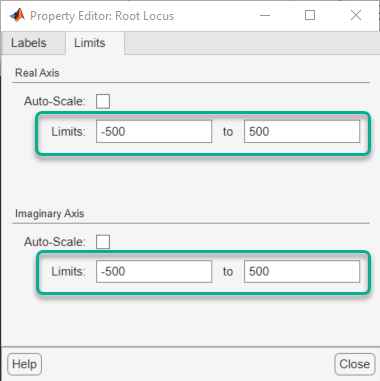

In the Property Editor dialog box, on the **Limits** tab,
specify **Real Axis** and **Imaginary
Axis** limits from `-500`

to
`500`

.

Click **Close**.

**Increase Compensator Gain**

To create a faster response, increase the compensator gain. In the
**Root Locus Editor**, right-click the plot area and
select **Edit Compensator**.

In the Compensator Editor dialog box, specify a gain of
`20`

.

In the **Root Locus Editor** plot, the closed-loop pole
locations move to reflect the new gain value. Also, the **Step
Response** plot updates.

The closed-loop response does not satisfy the settling time requirement and exhibits unwanted ringing.

Increasing the gain makes the system underdamped and further increases lead to instability. Therefore, to meet the design requirements, you must specify additional compensator dynamics. For more information on adding and editing compensator dynamics, see Edit Compensator Dynamics.

**Add Poles to Compensator**

To add a complex pole pair to the compensator, in the **Root Locus
Editor**, right-click the plot area and select **Add Pole/Zero** > **Complex Pole**. Click the plot area where you want to add one of the complex
poles.

The app adds the complex pole pair to the root locus plot as red
`X`

’s, and updates the step response plot.

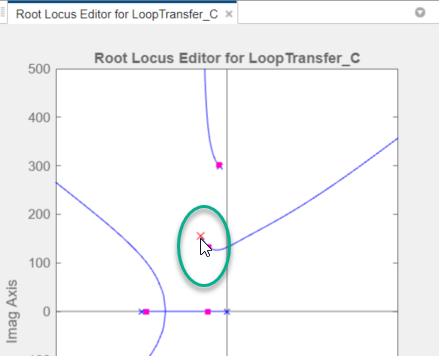

In the **Root Locus Editor**, drag the new poles to
locations near –140 ± 260*i*. As you drag one pole, the other pole updates
automatically.

As you drag a pole or zero, the app displays the new value in the status bar, on the right side.

**Add Zeros to Compensator**

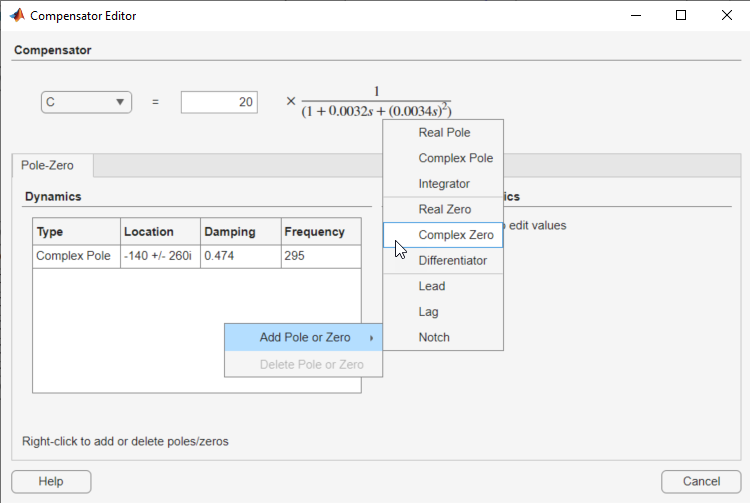

To add a complex zero pair to your compensator, in the Compensator Editor
dialog box, right-click the **Dynamics** table, and select **Add Pole/Zero** > **Complex Zero**

The app adds a pair of complex zeros at –1 ± *i* to your compensator

In the **Dynamics** table, click the **Complex
Zero** row. Then in the **Edit Selected
Dynamics** section, specify a **Real Part** of
`-170`

and an **Imaginary Part** of
`430`

.

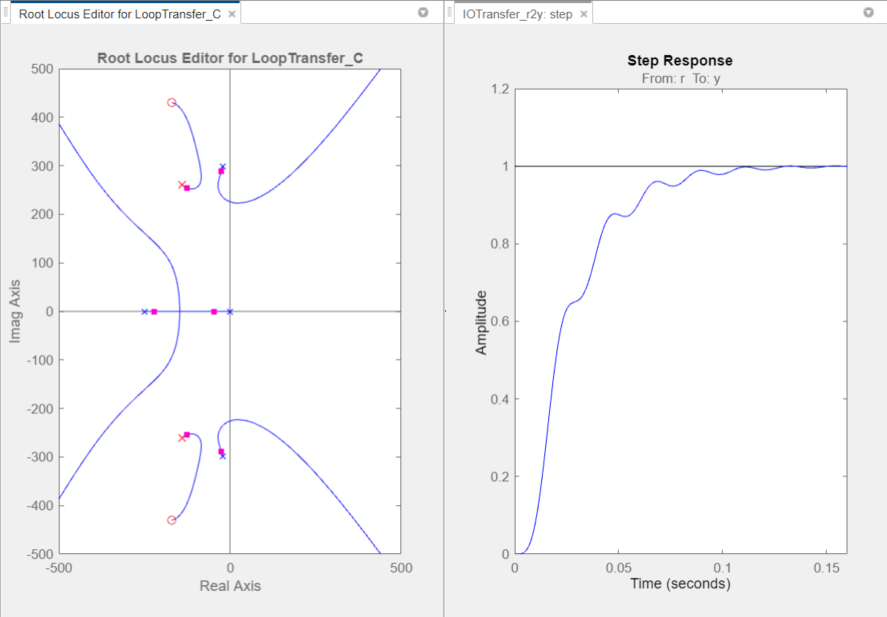

The compensator and response plots automatically update to reflect the new zero locations.

In the **Step Response** plot, the settling time is
around 0.1 seconds, which does not satisfy the design requirements.

**Adjust Pole and Zero Locations**

The compensator design process can involve some trial and error. Adjust the compensator gain, pole locations, and zero locations until you meet the design criteria.

One possible compensator design that satisfies the design requirements is:

Compensator gain of

`10`

Complex poles at –110 ± 140

*i*Complex zeros at –70 ± 270

*i*

In the Compensator Editor dialog box, configure your compensator using
these values. In the **Step Response** plot, the settling
time is around 0.05 seconds.

To verify the exact settling time, right-click the **Step
Response** plot area and select **Characteristics** > **Settling Time**. A settling time indicator appears on the response
plot.

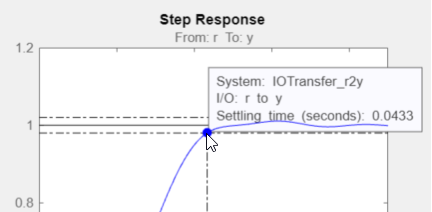

To view the settling time, move the cursor over the settling time indicator.

The settling time is about 0.043 seconds, which satisfies the design requirements.

[1] Clark, R. N. *Control System
Dynamics*, Cambridge University Press, 1996.

Control System Designer | `rlocusplot`
