Plot `cfit`

or `sfit`

object

`plot(sfit)`

plot(sfit, [x, y], z)

plot(sfit, [x, y], z, 'Exclude', outliers)

H = plot(sfit, ..., 'Style', Style)

H = plot(sfit, ..., 'Level', Level)

H = plot(sfit, ..., 'XLim', XLIM)

H
= plot(sfit, ..., 'YLim', YLIM)

H = plot(sfit, ...)

H = plot(sfit, ..., 'Parent', HAXES )

plot(cfit)

plot(cfit,x,y)

plot(cfit,x,y,DataLineSpec)

plot(cfit,FitLineSpec,x,y,DataLineSpec)

plot(cfit,x,y,outliers)

plot(cfit,x,y,outliers,OutlierLineSpec)

plot(...,ptype,...)

plot(...,ptype,level)

h = plot(...)

For **surfaces**:

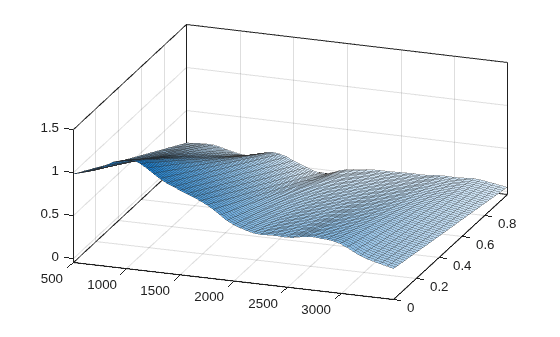

`plot(sfit)`

plots the`sfit`

object over the range of the current axes, if any, or otherwise over the range stored in the fit.`plot(sfit, [x, y], z)`

plots z versus x and y and plots`sfit`

over the range of x and y.`plot(sfit, [x, y], z, 'Exclude', outliers)`

plots the excluded data in a different color.`outliers`

can be an expression describing a logical vector, e.g.,`x > 10`

, a vector of integers indexing the points you want to exclude, e.g.,`[1 10 25]`

, or a logical array where`true`

represents an outlier. You can create the array with`excludedata`

.`H = plot(sfit, ..., 'Style', Style)`

selects which way to plot the surface fit object`sfit`

.`Style`

may be any of the following character vectors`'Surface'`

Plot the fit object as a surface (default)`'PredFunc'`

Surface with prediction bounds for function`'PredObs'`

Surface with prediction bounds for new observation`'Residuals'`

Plot the residuals (fit is the plane Z=0)`'Contour'`

Make a contour plot of the surface

`H = plot(sfit, ..., 'Level', Level)`

sets the confidence level to be used in the plot.`Level`

is a positive value less than 1, and has a default of 0.95 (for 95% confidence). This option only applies to the`'PredFunc'`

and`'PredObs'`

plot styles.`H = plot(sfit, ..., 'XLim', XLIM)`

and`H = plot(sfit, ..., 'YLim', YLIM)`

sets the limits of the axes used for the plot. By default the axes limits are taken from the data,`XY`

. If no data is given, then the limits are taken from the surface fit object,`sfit`

.`H = plot(sfit, ...)`

returns a vector of handles of the plotted objects.`H = plot(sfit, ..., 'Parent', HAXES )`

plots the fit object`sfit`

in the axes with handle HAXES rather than the current axes. The range is taken from these axes rather than from the fit or the data.

For **curves**:

`plot(cfit)`

plots the`cfit`

object over the domain of the current axes, if any. If there are no current axes, and`fun`

is an output from the`fit`

function, the plot is over the domain of the fitted data.`plot(cfit,x,y)`

plots`cfit`

together with the predictor data`x`

and the response data`y`

.`plot(cfit,x,y,DataLineSpec)`

plots the predictor and response data using the color, marker symbol, and line style specified by the`DataLineSpec`

formatting character vector.`DataLineSpec`

character vectors take the same values as`LineSpec`

character vectors used by the MATLAB^{®}`plot`

function.`plot(cfit,FitLineSpec,x,y,DataLineSpec)`

plots`fun`

using the color, marker symbol, and line style specified by the`FitLineSpec`

formatting character vector, and plots`x`

and`y`

using the color, marker symbol, and line style specified by the`DataLineSpec`

formatting character vector.`FitLineSpec`

and`DataLineSpec`

character vectors take the same values as`LineSpec`

character vectors used by the MATLAB`plot`

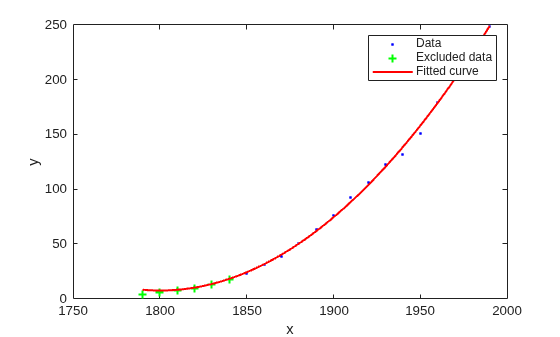

function.`plot(cfit,x,y,outliers)`

plots data indicated by`outliers`

in a different color.`outliers`

can be an expression describing a logical vector, e.g.,`x > 10`

, a vector of integers indexing the points you want to exclude, e.g.,`[1 10 25]`

, or a logical array where`true`

represents an outlier. You can create the array with`excludedata`

.`plot(cfit,x,y,outliers,OutlierLineSpec)`

plots`outliers`

using the color, marker symbol, and line style specified by the`OutlierLineSpec`

.`OutlierLineSpec`

character vectors take the same values as`LineSpec`

character vectors used by the MATLAB`plot`

function.`plot(...,ptype,...)`

uses the plot type specified by`ptype`

. Supported plot types are:`'fit'`

— Data and fit (default)`'predfunc'`

— Data and fit with prediction bounds for the fit`'predobs'`

— Data and fit with prediction bounds for new observations`'residuals'`

— Residuals`'stresiduals'`

— Standardized residuals (residuals divided by their standard deviation).`'deriv1'`

— First derivative of the fit`'deriv2'`

— Second derivative of the fit`'integral'`

— Integral of the fit

`plot(...,ptype,level)`

plots prediction intervals with a confidence level specified by`level`

.`level`

must be between`0`

and`1`

. The default value of`level`

is`0.95`

.

For both curves and surfaces:

Plot types can be single or multiple, with multiple plot types specified as a cell array of character vectors. With a single plot type,

`plot`

draws to the current axes and can be used with commands like`hold`

and`subplot`

. With multiple plot types,`plot`

creates subplots for each plot type.`h = plot(...)`

returns a vector of handles to the plotted objects.

Create a baseline sinusoidal signal:

xdata = (0:0.1:2*pi)'; y0 = sin(xdata);

Add noise to the signal with non-constant variance:

% Response-dependent Gaussian noise gnoise = y0.*randn(size(y0)); % Salt-and-pepper noise spnoise = zeros(size(y0)); p = randperm(length(y0)); sppoints = p(1:round(length(p)/5)); spnoise(sppoints) = 5*sign(y0(sppoints)); ydata = y0 + gnoise + spnoise;

Fit the noisy data with a baseline sinusoidal model:

f = fittype('a*sin(b*x)'); fit1 = fit(xdata,ydata,f,'StartPoint',[1 1]);

Identify “outliers” as points at a distance greater than 1.5 standard deviations from the baseline model, and refit the data with the outliers excluded:

fdata = feval(fit1,xdata); I = abs(fdata - ydata) > 1.5*std(ydata); outliers = excludedata(xdata,ydata,'indices',I); fit2 = fit(xdata,ydata,f,'StartPoint',[1 1],... 'Exclude',outliers);

Compare the effect of excluding the outliers with the effect of giving them lower bisquare weight in a robust fit:

fit3 = fit(xdata,ydata,f,'StartPoint',[1 1],'Robust','on');

Plot the data, the outliers, and the results of the fits:

plot(fit1,'r-',xdata,ydata,'k.',outliers,'m*') hold on plot(fit2,'c--') plot(fit3,'b:') xlim([0 2*pi])

Plot the residuals for the two fits considering outliers:

figure plot(fit2,xdata,ydata,'co','residuals') hold on plot(fit3,xdata,ydata,'bx','residuals')

Load data and fit a Gaussian, excluding some data with an expression, then plot the fit, data and the excluded points.

[x, y] = titanium; f1 = fit(x',y','gauss2', 'Exclude', x<800); plot(f1,x,y,x<800)

For more examples excluding data and plotting fits, see `fit`

.
