## Interpolation Methods

*Interpolation* is a process for estimating values that lie
between known data points.

Interpolation involves the construction of a function *f * that
matches given *data values*,
*y _{i}*, at given

*data sites*,

*x*, in the sense that

_{i}*f*(

*x*) =

_{i}*y*, all

_{i}*i*.

The interpolant, *f*, is usually constructed as the unique function
of the form

$$f(x)={\displaystyle \sum _{j}{f}_{j}(x){a}_{j}}$$

that matches the given data, with the functions
*f _{j}* chosen “appropriately”.

In spline interpolation, one chooses the *f _{j}*
to be the

*n*consecutive B-splines

*B*(

_{j}*x*) =

*B*(

*x*|

*t*,...,

_{j}*t*

_{j+k}),

*j*= 1:

*n*, of order

*k*for some knot sequence

*t*

_{1}≤

*t*

_{2}≤ ... ≤

*t*

_{n + k}.

### About Interpolation Methods

Method | Description |
---|---|

Linear | Linear interpolation. This method fits a different linear polynomial between each pair of data points for curves, or between sets of three points for surfaces. |

Nearest neighbor | Nearest neighbor interpolation. This method sets the value of an interpolated point to the value of the nearest data point. Therefore, this method does not generate any new data points. |

Cubic spline | Cubic spline interpolation. This method fits a different cubic polynomial between each pair of data points for curves, or between sets of three points for surfaces. |

Shape-preserving | Piecewise cubic Hermite interpolation (PCHIP). This method preserves monotonicity and the shape of the data. For curves only. |

Biharmonic (v4) | MATLAB For surfaces only. |

Thin-plate spline | Thin-plate spline interpolation. This method fits smooth surfaces that also extrapolate well. For surfaces only. |

For surfaces, the Interpolant fit type uses the MATLAB
`scatteredInterpolant`

function for
linear and nearest methods, and the MATLAB
`griddata`

function for cubic and
biharmonic methods. The thin-plate spline method uses the `tpaps`

function.

The type of interpolant to use depends on the characteristics of the data being fit, the required smoothness of the curve, speed considerations, post-fit analysis requirements, and so on. The linear and nearest neighbor methods are fast, but the resulting curves are not very smooth. The cubic spline and shape-preserving and v4 methods are slower, but the resulting curves are very smooth.

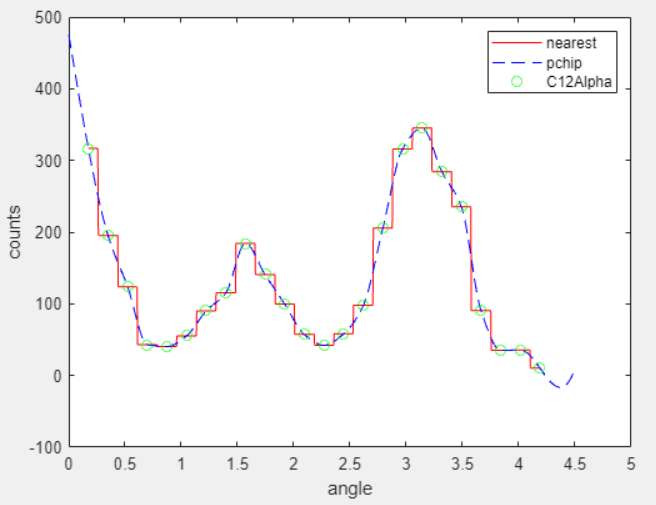

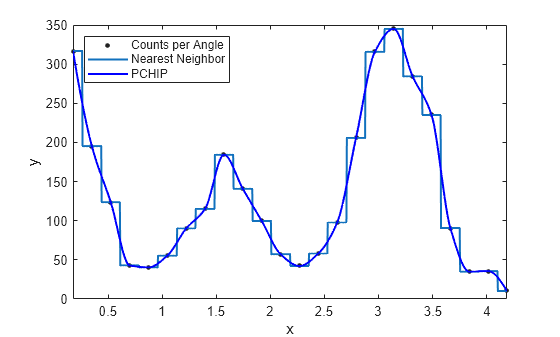

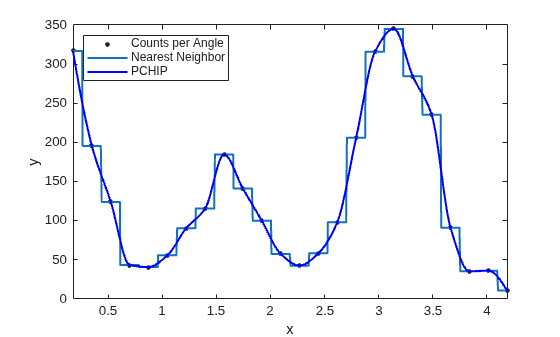

For example, the nuclear reaction data from the
`carbon12alpha.mat`

file is shown here with a nearest neighbor
interpolant fit and a shape-preserving (PCHIP) interpolant fit. Clearly, the nearest
neighbor interpolant does not follow the data as well as the shape-preserving
interpolant. The difference between these two fits can be important if you are
interpolating. However, if you want to integrate the data to get a sense of the
total strength of the reaction, then both fits provide nearly identical answers for
reasonable integration bin widths.

**Note**

Goodness-of-fit statistics, prediction bounds, and weights are not defined for interpolants. Additionally, the fit residuals are always 0 (within computer precision) because interpolants pass through the data points.

Interpolants are defined as *piecewise polynomials* because the
fitted curve is constructed from many “pieces” (except for
`Biharmonic`

for surfaces which is a radial basis
function interpolant). For cubic spline and PCHIP interpolation, each piece is
described by four coefficients, which the toolbox calculates using a cubic
(third-degree) polynomial.

Refer to the

`spline`

function for more information about cubic spline interpolation.Refer to the

`pchip`

function for more information about shape-preserving interpolation, and for a comparison of the two methods.Refer to the

`scatteredInterpolant`

,`griddata`

, and`tpaps`

functions for more information about surface interpolation.

It is possible to fit a single “global” polynomial interpolant to data, with a degree one less than the number of data points. However, such a fit can have wildly erratic behavior between data points. In contrast, the piecewise polynomials described here always produce a well-behaved fit, so they are more flexible than parametric polynomials and can be effectively used for a wider range of data sets.
