# rscvn

Piecewise biarc Hermite interpolation

## Syntax

`c = rscvn(p,u) `

c = rscvn(p)

## Description

`c = rscvn(p,u) `

returns a planar piecewise
biarc curve (in quadratic rBform) that passes, in order, through the given points
`p(:,j)`

and is constructed in the following way (see Construction of a Biarc). Between any two distinct
points` p(:,j)`

and `p(:,j+1)`

, the curve
usually consists of two circular arcs (including straight-line segments) which join with
tangent continuity, with the first arc starting at `p(:,j)`

and
normal there to `u(:,j)`

, and the second arc ending at
`p(:,j+1)`

and normal there to `u(:,j+1)`

, and
with the two arcs written as one whenever that is possible. Thus the curve is
tangent-continuous everywhere except, perhaps, at repeated points, where the curve
may have a corner, or when the angle, formed by the two segments ending at
`p(:,j)`

, is unusually small, in which case the curve may have
a cusp at that point.

`p`

must be a real matrix, with two rows, and at least two
columns, and any column must be different from at least one of its neighboring
columns.

`u`

must be a real matrix with two rows, with the same number of
columns as `p`

(for two exceptions, see below), and can have no
zero column.

`c = rscvn(p) `

chooses the normals in the
following way. For `j=2:end-1`

, `u(:,j)`

is the
average of the (normalized, right-turning) normals to the vectors
`p(:,j)-p(:,j-1)`

and `p(:,j+1)-p(:,j)`

. If
`p(:,1)==p(:,end)`

, then both end normals are chosen as the
average of the normals to `p(:,2)-p(:,1)`

and
`p(:,end)-p(:,end-1)`

thus preventing a corner in the resulting
closed curve. Otherwise, the end normals are so chosen that there is only one arc
over the first and last segment (not-a-knot end condition).

`rscvn(p,u)`

, with `u`

having exactly two
columns, also chooses the interior normals as for the case when `u`

is absent but uses the two columns of `u`

as the end-point
normals.

## Examples

**Example 1.** The following code generates a
description of a circle, using just four pieces. Except for a different scaling of
the knot sequence, it is the same description as is supplied by
`rsmak('circle',1,[1;1])`

.

p = [1 0 -1 0 1; 0 1 0 -1 0]; c = rscvn([p(1,:)+1;p(2,:)+1],p);

The same circle, but using just two pieces, is provided by

c2 = rscvn([0,2,0; 1,1,1]);

**Example 2.** The following code plots two letters.
Note that the second letter is the result of interpolation to just four points. Note
also the use of translation in the plotting of the second letter.

p = [-1 .8 -1 1 -1 -1 -1; 3 1.75 .5 -1.25 -3 -3 3]; i = eye(2); u = i(:,[2 1 2 1 2 1 1]); B = rscvn(p,u); S = rscvn([1 -1 1 -1; 2.5 2.5 -2.5 -2.5]); fnplt(B), hold on, fnplt(fncmb(S,[3;0])), hold off axis equal, axis off

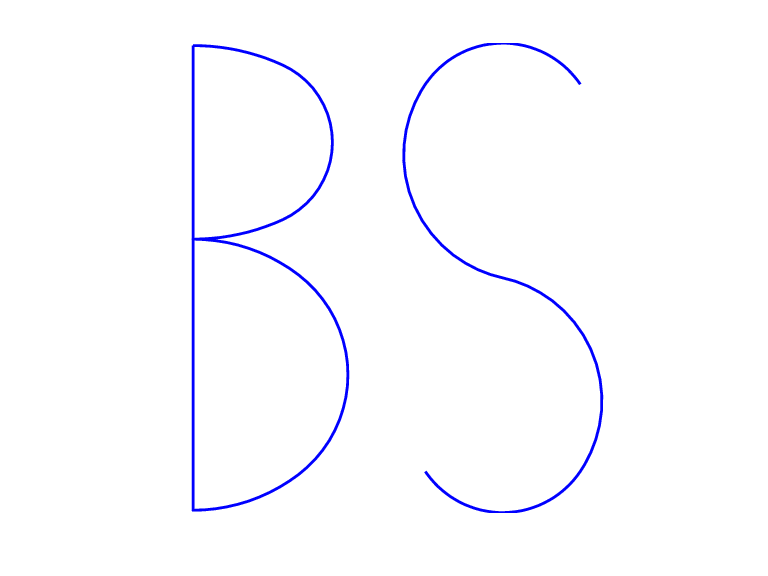

**Two Letters Composed of Circular Arcs**

**Example 3.** The following code generates the Construction of a Biarc, of use in the discussion below of the
biarc construction used here. Note the use of `fntlr`

to find the
tangent to the biarc at the beginning, at the point where the two arcs join, and at
the end.

p = [0 1;0 0]; u = [.5 -.1;-.25 .5]; plot(p(1,:),p(2,:),'k'), hold on biarc = rscvn(p,u); breaks = fnbrk(biarc,'b'); fnplt(biarc,breaks(1:2),'b',3), fnplt(biarc,breaks(2:3),'r',3) vd = fntlr(biarc,2,breaks); quiver(vd(1,:),vd(2,:),vd(4,:),-vd(3,:)), hold off

**Construction of a Biarc**

## Algorithms

Given two distinct points, `p1`

and `p2`

, in
the plane and, correspondingly, two nonzero vectors, `u1`

and
`u2`

, there is a one-parameter family of biarcs (i.e., a curve
consisting of two arcs with common tangent at their join) starting at
`p1`

and normal there to `u1`

and ending at
`p2`

and normal there to `u2`

. One way to
parametrize this family of biarcs is by the normal direction, `v`

,
at the point `q`

at which the two arcs join. With a nonzero
`v`

chosen, there is then exactly one choice of
`q`

, hence the entire biarc is then determined. In the construction used in
`rscvn`

, `v`

is chosen as the reflection,
across the perpendicular to the segment from `p1`

to
`p2`

, of the average of the vectors `u1`

and
`u2`

, -- after both vectors have been so normalized that their
length is 1 and that they both point to the right of the segment from
`p1`

to `p2`

. This choice for
`v`

seems natural in the two standard cases: (i)
`u2`

is the reflection of `u1`

across the
perpendicular to the segment from `p1`

to `p2`

;
(ii) `u1`

and `u2`

are parallel. This choice of
`v`

is validated by Biarcs as a Function of the Left Normal which shows the resulting biarcs when
`p1`

, `p2`

, and ```
u2 =
[.809;.588]
```

are kept fixed and only the normal at `p1`

is allowed to vary.

**Biarcs as a Function of the Left Normal**

But it is impossible to have the interpolating biarc depend continuously at all
four data, `p1`

, `p2`

, `u1`

,
`u2`

. There has to be a discontinuity as the normal directions,
`u1`

and `u2`

, pass through the direction from
`p1`

to `p2`

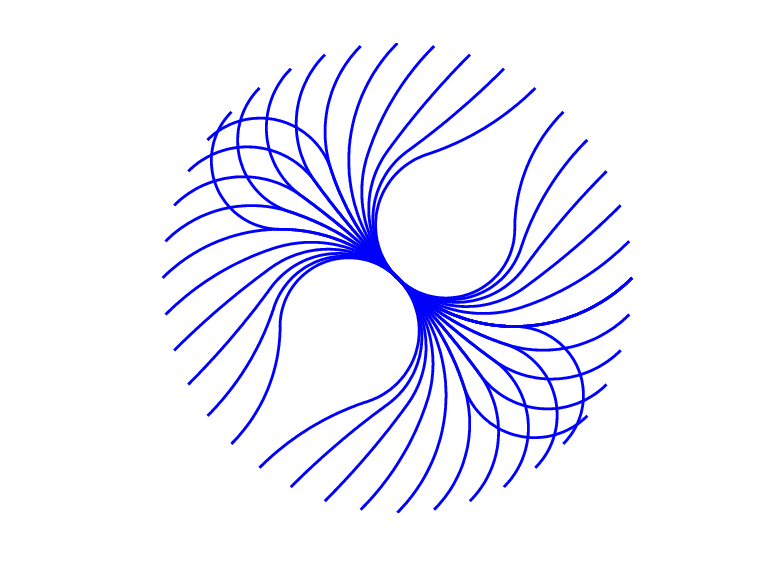

. This is illustrated in Biarcs as a Function of One Endpoint which shows the biarcs when one point,
`p1 = [0;0]`

, and the two normals, ```
u1 =
[1;1]
```

and `u2 = [1;-1]`

, are held fixed and only the
other point, `p2`

, moves, on a circle around
`p1`

.

**Biarcs as a Function of One Endpoint**
