Radar Detection Generator
Create detection objects from radar measurements
Radar Detection Generator is not recommended unless you require C/C++ code generation. Use Driving Radar Data Generator instead. For more information, see Version History.
Libraries:
Automated Driving Toolbox /
Driving Scenario and Sensor Modeling
Description
The Radar Detection Generator block generates detections from radar measurements taken by a radar sensor mounted on an ego vehicle. Detections are derived from simulated actor poses and are generated at intervals equal to the sensor update interval. By default, detections are referenced to the coordinate system of the ego vehicle. The generator can simulate real detections with added random noise and also generate false alarm detections. A statistical model generates the measurement noise, true detections, and false positives. The random numbers generated by the statistical model are controlled by random number generator settings on the Measurements tab. You can use the Radar Detection Generator to create input to a MultiObject Tracker block. When building scenarios and sensor models using the Driving Scenario Designer app, the radar sensors exported to Simulink^{®} are output as Radar Detection Generator blocks.
Ports
Input
Actors — Scenario actor poses
Simulink bus containing MATLAB^{®} structure
Scenario actor poses in ego vehicle coordinates, specified as a Simulink bus containing a MATLAB structure.
The structure must contain these fields.
Field  Description  Type

NumActors  Number of actors  Nonnegative integer
Time  Current simulation time  Realvalued scalar
Actors  Actor poses  NumActors length array of actor pose structures
Each actor pose structure in Actors
must contain
these fields.
Field  Description

ActorID  Scenariodefined actor identifier, specified as a positive integer.
In R2024b:
 Frontaxle position of the vehicle, specified as a threeelement row vector in the form [x y z]. Units are in meters. Note If the driving scenario does not contain a
frontaxle trajectory for at least one vehicle,
then the

Position  Position of actor, specified as a realvalued vector of the form [x y z]. Units are in meters.
Velocity  Velocity (v) of actor in the x y, and zdirections, specified as a realvalued vector of the form [v_{x} v_{y} v_{z}]. Units are in meters per second.
Roll  Roll angle of actor, specified as a realvalued scalar. Units are in degrees.
Pitch  Pitch angle of actor, specified as a realvalued scalar. Units are in degrees.
Yaw  Yaw angle of actor, specified as a realvalued scalar. Units are in degrees.
AngularVelocity  Angular velocity (ω) of actor in the x, y, and zdirections, specified as a realvalued vector of the form [ω_{x} ω_{y} ω_{z}]. Units are in degrees per second.
Output
Detections — Detections
Simulink bus containing MATLAB structure
Object detections, returned as a Simulink bus containing a MATLAB structure. For more details about buses, see Create Nonvirtual Buses (Simulink).
You can pass object detections from these sensors and other sensors to a tracker, such as a MultiObject Tracker block, and generate tracks.
Field  Description  Type

NumDetections  Number of detections  integer
IsValidTime  False when updates are requested at times that are between block invocation intervals  Boolean
Detections  Object detections  Array of object detection structures of length set by
the Maximum number of reported
detections parameter. Only
NumDetections of these are actual
detections.
Each object detection structure contains these properties.
Property  Definition

Time  Measurement time
Measurement  Object measurements
MeasurementNoise  Measurement noise covariance matrix
SensorIndex  Unique ID of the sensor
ObjectClassID  Object classification
MeasurementParameters  Parameters used by initialization functions of nonlinear Kalman tracking filters
ObjectAttributes  Additional information passed to tracker
For Cartesian coordinates,
Measurement
andMeasurementNoise
are reported in the coordinate system specified by the Coordinate system used to report detections parameter.For spherical coordinates,
Measurement
andMeasurementNoise
are reported in the spherical coordinate system based on the sensor Cartesian coordinate system.
Measurement and Measurement Noise
Coordinate System Used to Report Detections  Measurement and Measurement Noise Coordinates

'Ego Cartesian'
Coordinate dependence on Enable range rate measurements

'Sensor Cartesian'
'Sensor spherical'
Coordinate dependence on Enable elevation angle measurements and Enable range rate measurements

MeasurementParameters
Parameter  Definition

Frame  Enumerated type indicating the frame used to
report measurements. When Frame
is set to 'rectangular' ,
detections are reported in Cartesian coordinates.
When Frame is set
'spherical' , detections are
reported in spherical coordinates.
OriginPosition  3D vector offset of the sensor origin from the
ego vehicle origin. The vector is derived from the
SensorLocation and
Height properties specified
in the radarDetectionGenerator .
Orientation  Orientation of the radar sensor coordinate system
with respect to the ego vehicle coordinate system.
The orientation is derived from the
Yaw ,
Pitch , and
Roll properties of the
radarDetectionGenerator .
HasVelocity  Indicates whether measurements contain velocity or range rate components.
HasElevation  Indicates whether measurements contain elevation components.
The ObjectAttributes
property of each detection
is a structure with these fields.
Field  Definition

TargetIndex  Identifier of the actor,
ActorID , that generated the
detection. For false alarms, this value is
negative.
SNR  Signaltonoise ratio of the detection. Units are in dB.
Parameters
Parameters
Sensor IdentificationUnique identifier of sensor — Unique sensor identifier
1 (default)  positive integer
Unique sensor identifier, specified as a positive integer. The sensor identifier distinguishes detections that come from different sensors in a multisensor system. If a model contains multiple sensor blocks with the same sensor identifier, the Bird'sEye Scope displays an error.
Example: 5
Required interval between sensor updates (s) — Required time interval
0.1
(default)  positive real scalar
Required time interval between sensor updates, specified as a positive real scalar. The value of this parameter must be an integer multiple of the Actors input port data interval. Updates requested from the sensor between update intervals contain no detections. Units are in seconds.
Sensor's (x,y) position (m) — Location of the radar sensor center
[3.4 0]
(default)  realvalued 1by2 vector
Location of the radar sensor center, specified as a realvalued 1by2 vector. The Sensor's (x,y) position (m) and Sensor's height (m) parameters define the coordinates of the radar sensor with respect to the ego vehicle coordinate system. The default value corresponds to a radar mounted at the center of the front grill of a sedan. Units are in meters.
Sensor's height (m) — Radar sensor height above the ground plane
0.2
(default)  positive real scalar
Radar sensor height above the ground plane, specified as a positive real scalar. The height is defined with respect to the vehicle ground plane. The Sensor's (x,y) position (m) and Sensor's height (m) parameters define the coordinates of the radar sensor with respect to the ego vehicle coordinate system. The default value corresponds to a radar mounted at the center of the front grill of a sedan. Units are in meters.
Example: 0.25
Yaw angle of sensor mounted on ego vehicle (deg) — Yaw angle of sensor
0
(default)  real scalar
Yaw angle of radar sensor, specified as a real scalar. Yaw angle is the angle between the center line of the ego vehicle and the downrange axis of the radar sensor. A positive yaw angle corresponds to a clockwise rotation when looking in the positive direction of the zaxis of the ego vehicle coordinate system. Units are in degrees.
Example: 4.0
Pitch angle of sensor mounted on ego vehicle (deg) — Pitch angle of sensor
0
(default)  real scalar
Pitch angle of sensor, specified as a real scalar. The pitch angle is the angle between the downrange axis of the radar sensor and the xy plane of the ego vehicle coordinate system. A positive pitch angle corresponds to a clockwise rotation when looking in the positive direction of the yaxis of the ego vehicle coordinate system. Units are in degrees.
Example: 3.0
Roll angle of sensor mounted on ego vehicle (deg) — Roll angle of sensor
0
(default)  real scalar
Roll angle of the radar sensor, specified as a real scalar. The roll angle is the angle of rotation of the downrange axis of the radar around the xaxis of the ego vehicle coordinate system. A positive roll angle corresponds to a clockwise rotation when looking in the positive direction of the xaxis of the coordinate system. Units are in degrees.
Source of output bus name — Source of output bus name
Auto
(default)  Property
Source of output bus name, specified as Auto
or
Property
. If you choose Auto
,
the block will automatically create a bus name. If you choose
Property
, specify the bus name using the
Specify an output bus name parameter.
Example: Property
Specify an output bus name — Name of output bus
no default
Name of output bus.
Dependencies
To enable this parameter, set the Source of output bus
name parameter to Property
.
Maximum number of reported detections — Maximum number of reported detections
50
(default)  positive integer
Maximum number of detections reported by the sensor, specified as a positive integer. Detections are reported in order of increasing distance from the sensor until the maximum number is reached.
Example: 100
Coordinate system used to report detections — Coordinate system of reported detections
Ego Cartesian
(default)  Sensor Cartesian
 Sensor Spherical
Coordinate system of reported detections, specified as one of these values:
Ego Cartesian
— Detections are reported in the ego vehicle Cartesian coordinate system.Sensor Cartesian
— Detections are reported in the sensor Cartesian coordinate system.Sensor spherical
— Detections are reported in a spherical coordinate system. This coordinate system is centered at the radar and aligned with the orientation of the radar on the ego vehicle.
Simulate using — Type of simulation to run
Interpreted execution
(default)  Code generation
Interpreted execution
— Simulate the model using the MATLAB interpreter. This option shortens startup time. InInterpreted execution
mode, you can debug the source code of the block.Code generation
— Simulate the model using generated C/C++ code. The first time you run a simulation, Simulink generates C/C++ code for the block. The C code is reused for subsequent simulations as long as the model does not change. This option requires additional startup time.
Measurements
Accuracy SettingsAzimuthal resolution of radar (deg) — Azimuth resolution of radar
4.0
(default)  positive real scalar
Azimuth resolution of the radar, specified as a positive real scalar. The azimuth resolution defines the minimum separation in azimuth angle at which the radar can distinguish two targets. The azimuth resolution is typically the 3dBdownpoint in azimuth angle beamwidth of the radar. Units are in degrees.
Example: 6.5
Elevation resolution of radar (deg) — Elevation resolution of radar
10.0
(default)  positive real scalar
Elevation resolution of the radar, specified as a positive real scalar. The elevation resolution defines the minimum separation in elevation angle at which the radar can distinguish two targets. The elevation resolution is typically the 3dBdownpoint in elevation angle beamwidth of the radar. Units are in degrees.
Example: 3.5
Dependencies
To enable this parameter, select the Enable elevation angle measurements check box.
Range resolution of radar (m) — Range resolution of radar
2.5
(default)  positive real scalar
Range resolution of the radar, specified as a positive real scalar. The range resolution defines the minimum separation in range at which the radar can distinguish between two targets. Units are in meters.
Example: 5.0
Range rate resolution of radar (m/s) — Range rate resolution of the radar
0.5
(default)  positive real scalar
Range rate resolution of the radar, specified as a positive real scalar. The range rate resolution defines the minimum separation in range rate at which the radar can distinguish between two targets. Units are in meters per second.
Example: 0.75
Dependencies
To enable this parameter, select the Enable range rate measurements check box.
Fractional azimuthal bias component of radar — Azimuth bias fraction
0.1
(default)  nonnegative real scalar
Azimuth bias fraction of the radar, specified as a nonnegative real scalar. The azimuth bias is expressed as a fraction of the azimuth resolution specified in the Azimuthal resolution of radar (deg) parameter. Units are dimensionless.
Example: 0.3
Fractional elevation bias component of radar — Elevation bias fraction
0.1
(default)  nonnegative real scalar
Elevation bias fraction of the radar, specified as a nonnegative real scalar. The elevation bias is expressed as a fraction of the elevation resolution specified in the Elevation resolution of radar (deg) parameter. Units are dimensionless.
Example: 0.2
Dependencies
To enable this parameter, select the Enable elevation angle measurements check box.
Fractional range bias component of radar — Range bias fraction
0.05
(default)  nonnegative real scalar
Range bias fraction of the radar, specified as a nonnegative real scalar. Range bias is expressed as a fraction of the range resolution specified in the Range resolution of radar (m) parameter. Units are dimensionless.
Example: 0.15
Fractional range rate bias component of radar — Range rate bias fraction of the radar
0.05
(default)  nonnegative real scalar
Range rate bias fraction of the radar, specified as a nonnegative real scalar. Range rate bias is expressed as a fraction of the range rate resolution specified in Range rate resolution of radar (m) parameter. Units are dimensionless.
Example: 0.2
Dependencies
To enable this parameter, select the Enable range rate measurements check box.
Total angular field of view for radar (deg) — Field of view of radar sensor
[20 5]
(default)  realvalued 1by2 vector of positive values
Field of view of radar sensor, specified as a realvalued 1by2
vector of positive values, [azfov elfov]
. The field
of view defines the angular extent spanned by the sensor. Each component
must lie in the interval (0,180]. Targets outside of the field of view
of the radar are not detected. Units are in degrees.
Example: [14 7]
Maximum detection range (m) — Maximum detection range
150
(default)  positive real scalar
Maximum detection range, specified as a positive real scalar. The radar cannot detect a target beyond this range. Units are in meters.
Example: 250
Minimum and maximum range rates that can be reported — Minimum and maximum detection range rates
[100 100]
(default)  realvalued 1by2 vector
Minimum and maximum detection range rates, specified as a realvalued 1by2 vector. The radar cannot detect a target outside of this range rate interval. Units are in meters per second.
Example: [200 200]
Dependencies
To enable this parameter, select the Enable range rate measurements check box.
Detection probability — Probability of detecting a target
0.9
(default)  positive real scalar less than or equal to 1
Probability of detecting a target, specified as a positive real scalar less than or equal to one. This quantity defines the probability of detecting target that has a radar crosssection specified by the Radar cross section at which detection probability is achieved (dBsm) parameter at the reference detection range specified by the Range where detection probability is achieved (m) parameter.
Example: 0.95
Rate at which false alarms are reported — False alarm rate
1e6
(default)  positive real scalar
False alarm rate within a radar resolution cell, specified as a positive real scalar in the range [10^{–7}, 10^{–3}]. Units are dimensionless.
Example: 1e5
Range where detection probability is achieved (m): — Reference range for given probability of detection
100
(default)  positive real scalar
Reference range for a given probability of detection, specified as a positive real scalar. The reference range is the range when a target having a radar crosssection specified by Radar cross section at which detection probability is achieved (dBsm) is detected with a probability of specified by Detection probability. Units are in meters.
Example: 150
Radar cross section at which detection probability is achieved (dBsm) — Reference radar crosssection for given probability of
detection
0.0
(default)  nonnegative real scalar
Reference radar crosssection (RCS) for given probability of detection, specified as a nonnegative real scalar. The reference RCS is the value at which a target is detected with probability specified by Detection probability. Units are in dBsm.
Example: 2.0
Enable elevation angle measurements — Enable radar to measure elevation
off
(default)  on
Select this check box to model a radar that can measure target elevation angles.
Enable range rate measurements — Enable radar to measure range rate
on
(default)  off
 on
Select this check box to model a radar that can measure target range rate.
Add noise to measurements — Enable adding noise to radar sensor measurements
on
(default)  off
Select this check box to add noise to radar sensor measurements.
Otherwise, the measurements are noisefree. The
MeasurementNoise
property of each detection is
always computed and is not affected by the value you specify for the
Add noise to measurements parameter. By leaving
this check box off
, you can pass the sensor's ground
truth measurements into a MultiObject Tracker block.
Enable false detections — Enable creating false alarm radar detections
on
(default)  off
Select this check box to enable reporting false alarm radar measurements. Otherwise, only actual detections are reported.
Enable occlusion — Enable lineofsight occlusion
on
(default)  off
Select this parameter to enable lineofsight occlusion, where the radar generates detections only from objects with a direct line of sight.
Select method to specify initial seed — Method to specify random number generator seed
Repeatable
(default)  Specify seed
 Not repeatable
Method to set the random number generator seed, specified as one of the options in the table.
Option  Description

Repeatable  The block generates a random initial seed
for the first simulation and reuses this seed for
all subsequent simulations. Select this parameter
to generate repeatable results from the
statistical sensor model. To change this initial
seed, at the MATLAB command prompt, enter:

Specify seed  Specify your own random initial seed for reproducible results by using the Specify seed parameter.
Not repeatable  The block generates a new random initial seed after each simulation run. Select this parameter to generate nonrepeatable results from the statistical sensor model.
Initial seed — Random number generator seed
0
(default)  nonnegative integer less than 2^{32}
Random number generator seed, specified as a nonnegative integer less than 2^{32}.
Example: 2001
Dependencies
To enable this parameter, set the Random Number
Generator Settings
parameter to Specify
seed
.
Actor Profiles
Select method to specify actor profiles — Method to specify actor profiles
From Scenario Reader block
(default)  Parameters
 MATLAB expression
Method to specify actor profiles, which are the physical and radar characteristics of all actors in the driving scenario, specified as one of these options:
From Scenario Reader block
— The block obtains the actor profiles from the scenario specified by the Scenario Reader block.Parameters
— The block obtains the actor profiles from the parameters that become enabled on the Actor Profiles tab.From workspace
— The block obtains the actor profiles from the MATLAB expression specified by the MATLAB expression for actor profiles parameter.
MATLAB expression for actor profiles — MATLAB expression for actor profiles
struct('ClassID',0,'Length',4.7,'Width',1.8,'Height',1.4,'OriginOffset',[1.35,0,0])
(default)  MATLAB structure  MATLAB structure array  valid MATLAB expression
MATLAB expression for actor profiles, specified as a MATLAB structure, a MATLAB structure array, or a valid MATLAB expression that produces such a structure or structure array.
If your Scenario Reader block reads data from a drivingScenario
object, to obtain the actor profiles directly from this
object, set this expression to call the actorProfiles
function on the object. For example:
actorProfiles(scenario)
.
Example: struct('ClassID',5,'Length',5.0,'Width',2,'Height',2,'OriginOffset',[1.55,0,0])
Dependencies
To enable this parameter, set the Select method to specify actor profiles parameter to MATLAB expression
.
Unique identifier for actors — Scenariodefined actor identifier
[]
(default)  positive integer  lengthL vector of unique positive
integers
Scenariodefined actor identifier, specified as a positive integer or
lengthL vector of unique positive integers.
L must equal the number of actors input into the
Actor input port. The vector elements must
match ActorID
values of the actors. You can specify
Unique identifier for actors as
[]
. In this case, the same actor profile
parameters apply to all actors.
Example: [1,2]
Dependencies
To enable this parameter, set the Select method to
specify actor profiles parameter to
Parameters
.
Userdefined integer to classify actors — Userdefined classification identifier
0
(default)  integer  lengthL vector of integers
Userdefined classification identifier, specified as an integer or
lengthL vector of integers. When
Unique identifier for actors is a vector, this
parameter is a vector of the same length with elements in onetoone
correspondence to the actors in Unique identifier for
actors. When Unique identifier for
actors is empty, []
, you must specify
this parameter as a single integer whose value applies to all
actors.
Example: 2
Dependencies
To enable this parameter, set the Select method to
specify actor profiles parameter to
Parameters
.
Length of actors cuboids (m) — Length of cuboid
4.7
(default)  positive real scalar  lengthL vector of positive values
Length of cuboid, specified as a positive real scalar or
lengthL vector of positive values. When
Unique identifier for actors is a vector, this
parameter is a vector of the same length with elements in onetoone
correspondence to the actors in Unique identifier for
actors. When Unique identifier for
actors is empty, []
, you must specify
this parameter as a positive real scalar whose value applies to all
actors. Units are in meters.
Example: 6.3
Dependencies
To enable this parameter, set the Select method to
specify actor profiles parameter to
Parameters
.
Width of actors cuboids (m) — Width of cuboid
4.7
(default)  positive real scalar  lengthL vector of positive values
Width of cuboid, specified as a positive real scalar or
lengthL vector of positive values. When
Unique identifier for actors is a vector, this
parameter is a vector of the same length with elements in onetoone
correspondence to the actors in Unique identifier for
actors. When Unique identifier for
actors is empty, []
, you must specify
this parameter as a positive real scalar whose value applies to all
actors. Units are in meters.
Example: 4.7
Dependencies
To enable this parameter, set the Select method to
specify actor profiles parameter to
Parameters
.
Height of actors cuboids (m) — Height of cuboid
4.7
(default)  positive real scalar  lengthL vector of positive values
Height of cuboid, specified as a positive real scalar or
lengthL vector of positive values. When
Unique identifier for actors is a vector, this
parameter is a vector of the same length with elements in onetoone
correspondence to the actors in Unique identifier for
actors. When Unique identifier for
actors is empty, []
, you must specify
this parameter as a positive real scalar whose value applies to all
actors. Units are in meters.
Example: 2.0
Dependencies
To enable this parameter, set the Select method to
specify actor profiles parameter to
Parameters
.
Rotational center of actors from bottom center (m) — Rotational center of the actor
{ [ 1.35, 0, 0 ] } (default)  lengthL cell array of realvalued 1by3
vectors
Rotational center of the actor, specified as a
lengthL cell array of realvalued 1by3
vectors. Each vector represents the offset of the rotational center of
the actor from the bottomcenter of the actor. For vehicles, the offset
corresponds to the point on the ground beneath the center of the rear
axle. When Unique identifier for actors is a
vector, this parameter is a cell array of vectors with cells in
onetoone correspondence to the actors in Unique identifier
for actors. When Unique identifier for
actors is empty, []
, you must specify
this parameter as a cell array of one element containing the offset
vector whose values apply to all actors. Units are in meters.
Example: [ 1.35, .2, .3 ]
Dependencies
To enable this parameter, set the Select method to
specify actor profiles parameter to
Parameters
.
Radar cross section pattern (dBsm) — Radar crosssection
{[10,10;10,10]}
(default)  realvalued QbyP
matrix  lengthL cell array of realvalued
QbyP matrices
Radar crosssection (RCS) of actor, specified as a realvalued
QbyP matrix or
lengthL cell array of realvalued
QbyP matrices.
Q is the number of elevation angles specified by
the corresponding cell in the Elevation angles defining
RCSPattern (deg) parameter. P is the
number of azimuth angles specified by the corresponding cell in
Azimuth angles defining RCSPattern (deg)
property. When Unique identifier for actors is a
vector, this parameter is a cell array of matrices with cells in
onetoone correspondence to the actors in Unique identifier
for actors. Q and P
can vary in the cell array. When Unique identifier for
actors is empty, []
, you must specify
this parameter as a cell array with one element containing a matrix
whose values apply to all actors. Units are in dBsm.
Example: [10 14 10; 9 13 9]
Dependencies
To enable this parameter, set the Select method to
specify actor profiles parameter to
Parameters
.
Azimuth angles defining RCSPattern (deg) — Azimuth angles of radar crosssection pattern
{[180 180]}
(default)  lengthL cell array of realvalued
Plength vectors
Azimuth angles of radar crosssection pattern, specified as a
lengthL cell array of realvalued
Plength vectors. Each vector represents the
azimuth angles of the Pcolumns of the radar cross
section specified in Radar cross section pattern
(dBsm). When Unique identifier for
actors is a vector, this parameter is a cell array of
vectors with cells in onetoone correspondence to the actors in
Unique identifier for actors.
P can vary in the cell array. When
Unique identifier for actors is empty,
[]
, you must specify this parameter as a cell
array with one element containing a vector whose values apply to all
actors. Units are in degrees. Azimuth angles lie in the range 180° to
180° and must be in strictly increasing order.
When the radar cross sections specified in the cells of Radar cross section pattern (dBsm) all have the same dimensions, you need only specify a cell array with one element containing the azimuth angle vector.
Example: [90:90]
Dependencies
To enable this parameter, set the Select method to
specify actor profiles parameter to
Parameters
.
Elevation angles defining RCSPattern (deg) — Elevation angles of radar crosssection pattern
{[90 90]}
(default)  lengthL cell array of realvalued
Qlength vectors
Elevation angles of radar crosssection pattern, specified as a
lengthL cell array of realvalued
Qlength vectors. Each vector represent the
elevation angles of the Qcolumns of the radar cross
section specified in Radar cross section pattern
(dBsm). When Unique identifier for
actors is a vector, this parameter is a cell array of
vectors with cells in onetoone correspondence to the actors in
Unique identifier for actors.
Q can vary in the cell array. When
Unique identifier for actors is empty,
[]
, you must specify this parameter as a cell
array with one element containing a vector whose values apply to all
actors. Units are in degrees. Elevation angles lie in the range 90° to
90° and must be in strictly increasing order.
When the radar cross sections that are specified in the cells of Radar cross section pattern (dBsm) all have the same dimensions, you need only specify a cell array with one element containing an elevation angle vector.
Example: [25:25]
Dependencies
To enable this parameter, set the Select method to
specify actor profiles parameter to
Parameters
.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Version History
Introduced in R2017bR2021a: radarDetectionGenerator
System object and Radar Detection Generator block are not recommended
The radarDetectionGenerator
System object™ and Radar Detection Generator block are not recommended
unless you require C/C++ code generation. Instead, use the drivingRadarDataGenerator
System object and Driving
Radar Data Generator, respectively. These new radar sensors provide
additional properties for modeling radar sensors, including the ability to generate
tracks and clustered detections.
There are no current plans to remove the radarDetectionGenerator
System object or Radar Detection Generator block. MATLAB code and Simulink models that use these features will continue to run. You can still import radarDetectionGenerator
objects into the Driving Scenario Designer app. However, the app updates the parameters of the imported sensor to reflect the parameters of a drivingRadarDataGenerator
object. In addition, when you export a scenario containing a radarDetectionGenerator
sensor to MATLAB code or to a Simulink model, the app exports the sensor as a drivingRadarDataGenerator
object or Driving Radar Data Generator block, respectively.
In MATLAB code, replace all instances of radarDetectionGenerator
with drivingRadarDataGenerator
. In addition, update all radarDetectionGenerator
properties with their equivalent drivingRadarDataGenerator
properties, as shown in the table. The properties not listed in the table are either specific only to drivingRadarDataGenerator
or identical in both objects.
radarDetectionGenerator Properties  Equivalent drivingRadarDataGenerator Properties







 RangeLimits






This table shows sample code for creating a drivingRadarDataGenerator
object instead of a radarDetectionGenerator
object.
Discouraged Usage  Recommended Replacement

radar = radarDetectionGenerator( ... 'SensorLocation',[1 0], ... 'Height',0.2, ... 'Yaw',180, ... 'Pitch',0, ... 'Roll',0, ... 'MaxRange',50);  radar = drivingRadarDataGenerator( ... 'MountingLocation',[1 0 0.2], ... 'MountingAngles',[180 0 0], ... 'RangeLimits',[0 50]);
To generate detections from target poses at each simulation time step, replace the dets = radarDetectionGenerator(targets,time)
syntax with dets = drivingRadarDataGenerator(targets,time)
.
In Simulink models, replace all Radar Detection Generator blocks with Driving Radar Data Generator blocks. In the Driving Radar Data Generator blocks, update the parameter values in the same way you would update the drivingRadarDataGenerator
property values described in the Update Code section.
If your model contains a separate block that clusters detections, you can remove it because the Driving Radar Data Generator block clusters detections by default.

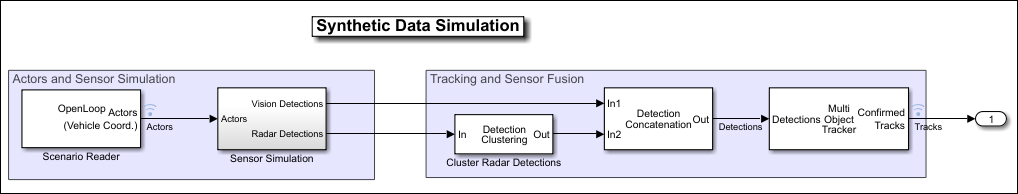

For example, in this model, the Sensor Simulation subsystem outputs concatenated detections from Radar Detection Generator blocks into a separate block that clusters the detections.

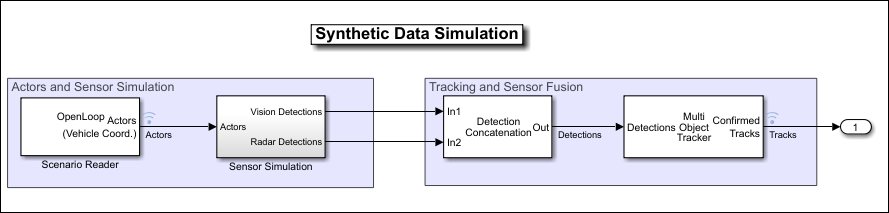

In this model, the Sensor Simulation subsystem outputs concatenated, clustered detections from Driving Radar Data Generator blocks directly into the next part of the model pipeline.
See Also
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
 América Latina (Español)
 Canada (English)
 United States (English)
Europe
 Belgium (English)
 Denmark (English)
 Deutschland (Deutsch)
 España (Español)
 Finland (English)
 France (Français)
 Ireland (English)
 Italia (Italiano)
 Luxembourg (English)
 Netherlands (English)
 Norway (English)
 Österreich (Deutsch)
 Portugal (English)
 Sweden (English)
 Switzerland
 United Kingdom (English)
