Trajectory

Create trajectory using timestamps and waypoints

Since R2024b

Description

Add-On Required: This feature requires the Scenario Builder for Automated Driving Toolbox add-on.

The Trajectory object creates a trajectory using timestamps and waypoints.

Creation

Syntax

trajectory = scenariobuilder.Trajectory(timestamps,x,y,z)

trajectory = scenariobuilder.Trajectory(timestamps,waypoints)

trajectory = scenariobuilder.Trajectory(___,Name=Value)

Description

trajectory = scenariobuilder.Trajectory(timestamps,x,y,z) creates a trajectory object, trajectory, using the specified timestamps timestamps and the corresponding xyz-coordinates of waypoints. x, y, and z specify the first, second, and third columns of the Position property, respectively.

trajectory = scenariobuilder.Trajectory(timestamps,waypoints) creates a trajectory object, trajectory, using the specified timestamps timestamps and the corresponding waypoints waypoints. The waypoints argument specifies the Position property.

trajectory = scenariobuilder.Trajectory(___,Name=Value) sets writable properties using one or more name-value arguments, in addition to any combination of input arguments from the previous syntaxes. For example, Attributes=attributes specifies the optional trajectory attributes attributes.

Input Arguments

timestamps — Timestamps of waypoint data

N-element numeric column vector | N-element datetime array | N-element duration array

Timestamps of the waypoint data, specified as an N-element numeric column vector, an N-element datetime array, or an N-element duration array. N is the number of timestamps. Each element in the timestamps argument specifies the time at which the corresponding waypoint data was collected. If you specify an N-element numeric column vector, units must be in seconds.

When you initialize the object with timestamp and waypoint data, the object arranges the data by the input timestamps in increasing order.

This argument sets the Timestamps property.

x — x-coordinates of waypoints

N-element numeric column vector

x-coordinates of waypoints in the world coordinate system in ENU (East-North-Up) frame of reference, specified as an N-element numeric column vector. N is the number of timestamps. Units are in meters.

This argument sets the first column of Position property.

Data Types: single | double

y — y-coordinates of waypoints

N-element numeric column vector

y-coordinates of waypoints in the world coordinate system in ENU frame of reference, specified as an N-element numeric column vector. N is the number of timestamps. Units are in meters.

This argument sets the second column of Position property.

Data Types: single | double

z — z-coordinates of waypoints

N-element numeric column vector

z-coordinates of waypoints in the world coordinate system in ENU frame of reference, specified as an N-element numeric column vector. N is the number of timestamps. Units are in meters.

This argument sets the third column of Position property.

Data Types: single | double

waypoints — Trajectory waypoints

real-valued N-by-3 matrix

Trajectory waypoints, specified as a real-valued N-by-3 matrix. N is the number of waypoints. Each row represents the x-, y-, and z-coordinates of a waypoint.

Waypoints are in the world coordinate system in ENU frame of reference. Units are in meters.

This argument sets the Position property.

Data Types: single | double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: scenariobuilder.Trajectory(Name="Trajectory1") specifies the name of the trajectory object as "Trajectory1".

Name — Name of trajectory object

'' (default) | string scalar | character vector

Name of the trajectory object, specified as a string scalar or character vector.

This argument sets the Name property.

Data Types: char | string

Orientation — Orientation angles at each waypoint

real-valued N-by-3 matrix

Orientation angles at each waypoint, specified as a real-valued N-by-3 matrix. N is the number of waypoints. Each row specifies the Euler rotation angles relative to the z-, y-, and x-axes of the corresponding waypoint in the form [yaw pitch roll].

Orientations are in the local coordinate system. Units are in radians.

This argument sets the Orientation property.

Note

If you do not specify the Orientation name-value argument, by default, the Trajectory object computes the value of the Orientation property by using the value of the Position property.

Data Types: double

LocalOrigin — Anchor of trajectory

[0 0 0] (default) | three-element row vector

Anchor of trajectory, specified as a three-element row vector.

For a trajectory created from GPS data, the LocalOrigin value defines the anchor for the local coordinate system, specified as a three-element row vector of the form [latitude longitude altitude]. Units of latitude and longitude are in degrees, and units of altitude are in meters.

For a trajectory created from sensor data other than GPS data, the LocalOrigin value defines the origin of the local Cartesian coordinate system, specified as a three-element row vector of the form [x y z]. Units are in meters.

This argument sets the LocalOrigin property.

Data Types: single | double

TimeOrigin — Reference time of trajectory

0 (default) | nonnegative scalar

Reference time of the trajectory, specified as a nonnegative scalar. The data type of the TimeOrigin value and the data type of the Timestamps property must be the same. If you specify a nonnegative scalar, units must be in seconds.

The trajectory object subtracts the TimeOrigin value from all timestamps and updates the Timestamps property with the subtracted timestamps.

This argument sets the TimeOrigin property.

Data Types: single | double

Attributes — Optional trajectory attributes

[] (default) | N-by-1 array

Optional trajectory attributes, specified as an N-by-1 array. N is the number of timestamps. Each element in the array contains additional trajectory attributes recorded at the corresponding timestamp.

This argument sets the Attributes property.

Properties

Name — Name of trajectory object

'' (default) | string scalar | character vector

Name of the trajectory object, specified as a string scalar or character vector.

Data Types: char | string

NumSamples — Number of waypoints

Read-only: 0 (default) | nonnegative integer

This property is read-only.

Number of waypoints in the trajectory data, represented as a nonnegative integer.

Data Types: uint8 | uint16 | uint32 | uint64

Duration — Time duration

Read-only: 0 (default) | nonnegative scalar

This property is read-only.

Time duration for which the trajectory data was acquired, represented as a nonnegative scalar. Units are in seconds.

Data Types: double

SampleRate — Mean sample rate of trajectory waypoints

Read-only: 0 (default) | nonnegative scalar

This property is read-only.

Mean sample rate of the trajectory waypoints, represented as a nonnegative scalar. This value defines the number of waypoints recorded per second. Units are in hertz.

Data Types: double

SampleTime — Mean sample time of trajectory waypoints

Read-only: 0 (default) | nonnegative scalar

This property is read-only.

Mean sample time of the trajectory waypoints, represented as a nonnegative scalar. This value defines the mean time interval between two consecutive waypoint samples. Units are in seconds.

Data Types: double

Timestamps — Timestamps of waypoint data

[] (default) | N-element numeric column vector | N-element datetime array | N-element duration array

This property is read-only after object creation. To set this property, use the timestamps argument when calling the scenarioBuilder.Trajectory function.

Timestamps of the waypoint data, represented as an N-element numeric column vector, an N-element datetime array, or an N-element duration array. N is the number of timestamps. Each element in the Timestamps property specifies the time at which the waypoint data was collected. If you specify an N-element numeric column vector, units must be in seconds.

When you initialize the object with timestamps and waypoint data, the object arranges the data in increasing order of the input timestamps.

Position — Position of each waypoint

[] (default) | real-valued N-by-3 matrix

This property is read-only after object creation. To set this property, use the waypoints argument, or x, y, and z arguments when calling the scenarioBuilder.Trajectory function.

Position of each waypoint, represented as a real-valued N-by-3 matrix. N is the number of waypoints. Each row represents the x-, y-, and z-coordinates of a waypoint.

Position of waypoints are in the world coordinate system in ENU frame of reference. Units are in meters.

Data Types: single | double

Orientation — Orientation angles at each waypoint

[] (default) | real-valued N-by-3 matrix

Orientation angles at each waypoint, specified as a real-valued N-by-3 matrix. N is the number of waypoints. Each row specifies the Euler rotation angles relative to the z-, y-, and x-axes of the corresponding waypoint in the form [yaw pitch roll].

Orientations are in the local coordinate system. Units are in radians.

Note

If you do not specify the Orientation name-value argument, by default, the Trajectory object computes the value of the Orientation property by using the value of the Position property.

Data Types: double

Velocity — Velocity at each waypoint

Read-only: [] (default) | real-valued N-by-3 matrix

This property is read-only.

Velocity at each waypoint, represented as a real-valued N-by-3 matrix. N is the number of waypoints. Each row represents the velocity in the x-, y-, and z-directions at the corresponding waypoint. Units are in meters per second.

Data Types: double

Course — Course angle at each waypoint

Read-only: [] (default) | real-valued N-element column vector

This property is read-only.

Course angle at each waypoint, represented as a real-valued N-element column vector. N is the number of waypoints. Each row represents the course angle at a waypoint. Units are in degrees.

Data Types: double

GroundSpeed — Ground speed at each waypoint

Read-only: [] (default) | real-valued N-element column vector

This property is read-only.

Ground speed at each waypoint, represented as a real-valued N-element column vector. N is the number of waypoints. Each row represents the ground speed at a waypoint. Units are in meters per second.

Data Types: double

Acceleration — Acceleration at each waypoint

Read-only: [] (default) | real-valued N-by-3 matrix

This property is read-only.

Acceleration at each waypoint, represented as a real-valued N-by-3 matrix. N is the number of waypoints. Each row represents the acceleration relative to the x-, y-, and z-axes of the corresponding waypoint.

Accelerations are in the local coordinate system. Units are in meters per second squared.

Data Types: double

AngularVelocity — Angular velocity at each waypoint

Read-only: [] (default) | real-valued N-by-3 matrix

This property is read-only.

Angular velocity at each waypoint, represented as a real-valued N-by-3 matrix. N is the number of waypoints. Each row represents the angular velocities relative to the x-, y-, and z-axes of the corresponding waypoint.

Angular velocities are in the local coordinate system. Units are in radian per second squared.

Data Types: double

LocalOrigin — Anchor of trajectory

[0 0 0] (default) | three-element row vector

Anchor of trajectory, specified as a three-element row vector.

For a trajectory created from GPS data, the LocalOrigin value defines the anchor for the local coordinate system, specified as a three-element row vector of the form [latitude longitude altitude]. Units of latitude and longitude are in degrees, and units of altitude are in meters.

For a trajectory created from sensor data other than GPS data, the LocalOrigin value defines the origin of the local Cartesian coordinate system, specified as a three-element row vector of the form [x y z]. Units are in meters.

Data Types: single | double

TimeOrigin — Reference time of trajectory

timestamps(1) (default) | nonnegative scalar

Reference time of the trajectory, specified as a nonnegative scalar. The data type of the TimeOrigin value and the data type of the Timestamps property must be the same. If you specify a nonnegative scalar, units must be in seconds.

The trajectory object subtracts the TimeOrigin value from all timestamps and updates the Timestamps property with the subtracted timestamps. By default, the value of the TimeOrigin property is the first value of the input timestamps you specify timestamps(1).

When you use the normalizeTimestamps object function for a Trajectory object, the object function updates the TimeOrigin property of the Trajectory object with the subtracted timestamp value used for normalization.

Data Types: single | double

Attributes — Optional trajectory attributes

[] (default) | N-by-1 array

Optional trajectory attributes, specified as an N-by-1 array. N is the number of timestamps. Each element in the array contains additional trajectory attributes recorded at the corresponding timestamp.

Object Functions

add	Add waypoints to trajectory object
remove	Remove data from sensor data object
read	Read data from sensor data object
copy	Create copy of sensor data object
crop	Crop data from sensor data object
synchronize	Synchronize sensor data with reference sensor information
plot	Plot trajectory data
writeCSV	Write trajectory data into CSV file
distance	Compute total traveled distance of trajectory data
normalizeTimestamps	Normalize timestamps of sensor data object
smooth	Smooth trajectory data
exportToDrivingScenario	Export trajectory to driving scenario
exportToRoadRunner	Export trajectory to RoadRunner
adjustHeight	Adjust height of waypoints in trajectory object to match road height
convertTimestamps	Convert timestamp format of sensor data object

Examples

Create Trajectory Using Timestamps and Waypoints

Load recorded GPS trajectory data into the workspace.

load("recordedGPSData.mat","X","Y","Z","timestamps")

Create a trajectory object by using the loaded timestamps and xyz-coordinates.

traj1 = scenariobuilder.Trajectory(timestamps,X,Y,Z)

traj1 =
  Trajectory with properties:

               Name: ''

         NumSamples: 392
           Duration: 19.5498
         SampleRate: 20.0513
         SampleTime: 0.0500
         Timestamps: [392×1 double]

           Position: [392×3 double]
        Orientation: [392×3 double]
           Velocity: [392×3 double]
             Course: [392×1 double]
        GroundSpeed: [392×1 double]
       Acceleration: [392×3 double]
    AngularVelocity: [392×3 double]

        LocalOrigin: [0 0 0]
         TimeOrigin: 0

         Attributes: []

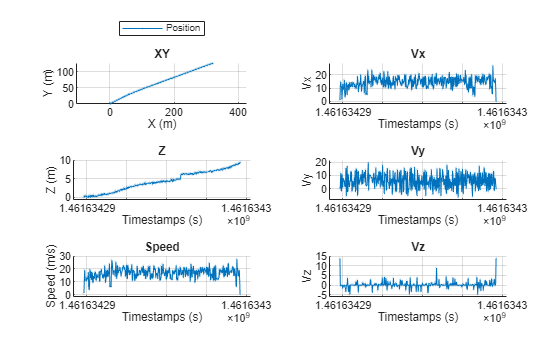

Plot the trajectory object.

plot(traj1,ShowZ=true,ShowSpeed=true,ShowVelocity=true,LineWidth=0.1,MarkerSize=1)

Combine the xyz-coordinates into a waypoint matrix, and create another trajectory by using the timestamps and waypoints.

waypoints = [X Y Z];
traj2 = scenariobuilder.Trajectory(timestamps,waypoints)

traj2 =
  Trajectory with properties:

               Name: ''

         NumSamples: 392
           Duration: 19.5498
         SampleRate: 20.0513
         SampleTime: 0.0500
         Timestamps: [392×1 double]

           Position: [392×3 double]
        Orientation: [392×3 double]
           Velocity: [392×3 double]
             Course: [392×1 double]
        GroundSpeed: [392×1 double]
       Acceleration: [392×3 double]
    AngularVelocity: [392×3 double]

        LocalOrigin: [0 0 0]
         TimeOrigin: 0

         Attributes: []

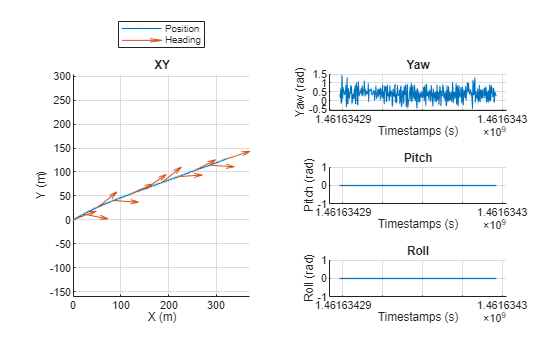

Plot the trajectory object.

plot(traj2,ShowHeading=true,ShowOrientation=true,LineWidth=0.1,MarkerSize=1)

Version History

Introduced in R2024b

R2025b_plus: New convertTimestamps object function

You can use the new convertTimestamps object function to convert the timestamps of a sensor data object to a different format.

R2025a: New adjustHeight object function

You can use the new adjustHeight object function to adjust the height of the waypoints in the trajectory object to match the road height.

R2025a: New default value of TimeOrigin property

The default value of the TimeOrigin property is now set to the first value of the input timestamps you specify timestamps(1). Previously, the default value was set to 0.
