Extract Triangular Matrix
Extract lower or upper triangle from input matrices
Math Functions / Matrices and Linear Algebra / Matrix Operations
The Extract Triangular Matrix block creates a triangular matrix output from the upper or lower triangular elements of an M-by-N input matrix. The block treats length-M unoriented vector inputs as an M-by-1 matrix.

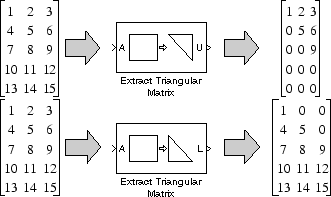

The Extract parameter selects between the two components of the input:
Upper— Copies the elements on and above the main diagonal of the input matrix to an output matrix of the same size. The first row of the output matrix is therefore identical to the first row of the input matrix. The elements below the main diagonal of the output matrix are zero.
Lower— Copies the elements on and below the main diagonal of the input matrix to an output matrix of the same size. The first column of the output matrix is therefore identical to the first column of the input matrix. The elements above the main diagonal of the output matrix are zero.
The component of the matrix to copy to the output: upper triangle or lower triangle.
- Simulate using
Code generation(default) — Simulate model using generated C code. The first time you run a simulation, Simulink® generates C code for the block. The C code is reused for subsequent simulations, as long as the model does not change. This option requires additional startup time but provides faster simulation speed than
Interpreted execution— Simulate model using the MATLAB® interpreter. This option shortens startup time but has slower simulation speed than
Supported Data Types
|Port||Supported Data Types|
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Generated code relies on the
memset function (
string.h) under certain
Design and simulate fixed-point systems using Fixed-Point Designer™.
Introduced before R2006a
