Factor arbitrary matrix into unitary and upper triangular components
Math Functions / Matrices and Linear Algebra / Matrix Factorizations
dspfactors
The QR Factorization block uses a sequence of Householder transformations to triangularize the input matrix A. The block factors a column permutation of the MbyN input matrix A as
A_{e} = QR
The columnpivoted matrix A_{e} contains the columns of A permuted as indicated by the contents of lengthN permutation vector E.
A_{e} = A(:,E) % Equivalent MATLAB code
The block selects a column permutation vector E, which ensures that the diagonal elements of matrix R are arranged in order of decreasing magnitude.
$$\left{r}_{i+1,j+1}\right<\left{r}_{i,j}\right\text{}i=j$$
The size of matrices Q and R depends on the setting of the Output size parameter:
When you select Economy
for the output size, Q is an
Mbymin(M,N) unitary matrix, and
R is a
min(M,N)byN uppertriangular
matrix.
[Q R E] = qr(A,0) % Equivalent MATLAB code
When you select Full
for the output size, Q is an
MbyM unitary matrix, and R is a
MbyN uppertriangular matrix.
[Q R E] = qr(A) % Equivalent MATLAB code
The block treats lengthM unoriented vector input as an Mby1 matrix.
QR factorization is an important tool for solving linear systems of equations because of good error propagation properties and the invertibility of unitary matrices:
Q^{ –1} =
Q'
where Q'
is the complex conjugate transpose of
Q.
Unlike LU and Cholesky factorizations, the matrix A does not need to be square for QR factorization. However, QR factorization requires twice as many operations as LU Factorization (Gaussian elimination).
The Output size parameter of the QR factorization block has two
settings: Economy
and Full
. When the
MbyN input matrix A has dimensions
such that M > N, the dimensions of output matrices
Q and R differ depending on the setting of the
Output size parameter. If, however, the size of the input matrix
A is such that M ≤ N, output matrices
Q and R have the same dimensions, regardless of whether
the Output size is set to Economy
or
Full
.
The input to the QR Factorization block in the following model is a
5
by2
matrix A. When you change the
setting of the Output size parameter from Economy
to Full
, the dimensions of the output given by the QR Factorization
block also change.

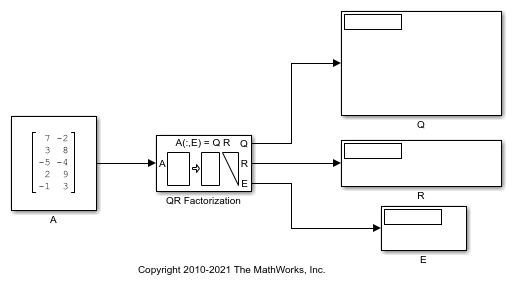

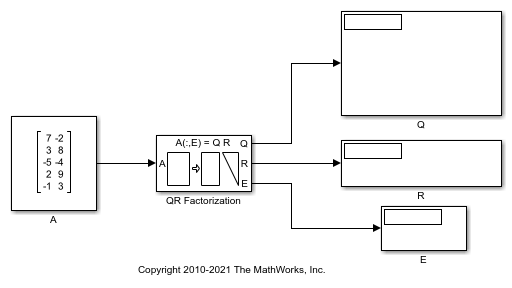

Open the model by typing ex_qrfactorization_ref
at the MATLAB^{®} command line.
Doubleclick the QR Factorization block, set the Output size
parameter to Economy
, and run the model.
The QR Factorization block outputs a 5
by2
matrix
Q and a 2
by2
matrix
R.

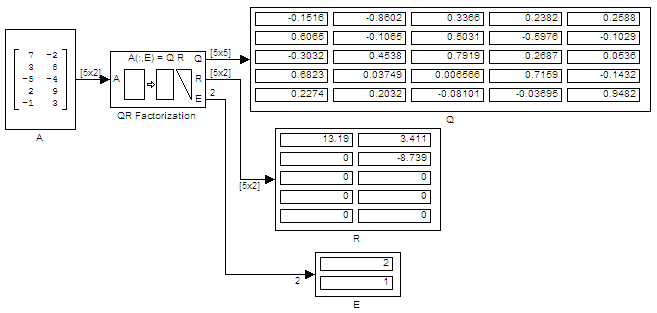

Change the Output size parameter of the QR Factorization block to
Full
and rerun the model.
The QR Factorization block outputs a 5
by5
matrix
Q and a 5
by2
matrix
R.
Specify the size of output matrices Q and R:
Economy
— When this output size is selected, the block
outputs an Mbymin(M,N) unitary
matrix Q and a
min(M,N)byN uppertriangular
matrix R.
Full
— When this output size is selected, the block outputs
an MbyM unitary matrix Q and a
MbyN uppertriangular matrix
R.
Golub, G. H., and C. F. Van Loan. Matrix Computations. 3rd ed. Baltimore, MD: Johns Hopkins University Press, 1996.
Port  Supported Data Types

Input

Output
