Variance
Variance of input or sequence of inputs
Libraries:
DSP System Toolbox /
Statistics
Description
The Variance block computes the unbiased variance of each row or column of the input, or along vectors of a specified dimension of the input. It can also compute the variance of the entire input. You can specify the dimension using the Find the variance value over parameter. The Variance block can also track the variance in a sequence of inputs over a period of time. To track the variance in a sequence of inputs, select the Running variance parameter.
Note
The Running mode in the Variance block will be removed in a future release. To compute the running variance in Simulink^{®}, use the Moving Variance block instead.
Ports
Input
In — Data input
vector  matrix  ND array
The block accepts realvalued or complexvalued multichannel and multidimensional inputs.
This port is unnamed until you select the Running
variance parameter and set the Reset
port parameter to any option other than
None
.
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 fixed point
Complex Number Support: Yes
Rst — Reset port
scalar
Specify the event that causes the block to reset the running variance. The sample time of the Rst input must be a positive integer multiple of the input sample time.
Dependencies
To enable this port, select the Running
variance parameter and set the Reset
port parameter to any option other than
None
.
Data Types: single
 double
 int8
 int16
 int32
 uint8
 uint16
 uint32
 Boolean
Output

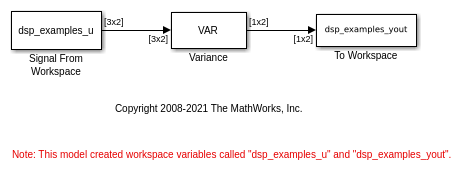

Port_1 — Variance along the specified dimension
scalar  vector  matrix  ND array
When you do not select the Running variance
parameter, the block computes the variance in each row or column of the
input, or along vectors of a specified dimension of the input. It can
also compute the variance of the entire input at each individual sample
time. Each element in the output array y
is the
variance of the corresponding column, row, or entire input. The output
array y
depends on the setting of the Find
the variance value over parameter.
Consider a threedimensional input signal of size MbyNbyP. When you set Find the variance value over to:
Entire input
— The output at each sample time is a scalar that contains the variance of the MbyNbyP input matrix.Each row
— The output at each sample time consists of an Mby1byP array, where each element contains the variance of each vector over the second dimension of the input. For an MbyN matrix input, the output at each sample time is an Mby1 column vector.Each column
— The output at each sample time consists of a 1byNbyP array, where each element contains the variance of each vector over the first dimension of the input. For an MbyN matrix input, the output at each sample time is a 1byN row vector.In this mode, the block treats lengthM unoriented vector inputs as Mby1 column vectors.
Specified dimension
— The output at each sample time depends on the value of the Dimension parameter. If you set the Dimension to1
, the output is the same as when you selectEach column
. If you set the Dimension to2
, the output is the same as when you selectEach row
. If you set the Dimension to3
, the output at each sample time is an MbyN matrix containing the variance of each vector over the third dimension of the input.
When you select Running variance, the block tracks the variance of each channel in a time sequence of inputs. In this mode, you must also specify a value for the Input processing parameter. When you set Input processing to:
Elements as channels (sample based)
— The block treats each element of the input as a separate channel. For a threedimensional input signal of size MbyNbyP, the block outputs an MbyNbyP array. Each element y_{ijk} of the output contains the variance of the element u_{ijk} for all inputs since the last reset.When a reset event occurs, the running variance y_{ijk} in the current frame is reset to the element u_{ijk}.
Columns as channels (frame based)
— The block treats each column of the input as a separate channel. This option does not support input signals with more than two dimensions. For a twodimensional input signal of size MbyN, the block outputs an MbyN matrix. Each element y_{ij} of the output contains the variance of the elements in the jth column of all inputs since the last reset, up to and including the element u_{ij} of the current input.When a reset event occurs, the running variance for each channel becomes the variance of all the samples in the current input frame, up to and including the current input sample.
The data type of the output matches the data type of the input.
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 fixed point
Parameters
Main Tab
Running variance — Option to select running variance
off (default)  on
When you select the Running variance parameter, the block tracks the variance value of each channel in a time sequence of inputs.
Find the variance value over — Dimension over which variance is computed
Each column
(default)  Entire input
 Each row
 Specified dimension
Each column
— The block outputs the variance over each column.Each row
— The block outputs the variance over each row.Entire input
— The block outputs the variance over the entire input.Specified dimension
— The block outputs the variance over the dimension specified in the Dimension parameter.
Dependencies
To enable this parameter, clear the Running variance parameter.
Dimension — Custom dimension
1
(default)  scalar
Specify the dimension (onebased value) of the input signal over which the variance is computed. The value of this parameter must be greater than 0 and less than or equal to the number of dimensions in the input signal.
Dependencies
To enable this parameter, set Find the variance value
over to Specified
dimension
.
Input processing — Method to process the input in running mode
Columns as channels (frame
based)
(default)  Elements as channels (sample
based)
Columns as channels (frame based)
— The block treats each column of the input as a separate channel. This option does not support input signals with more than two dimensions. For a twodimensional input signal of size MbyN, the block outputs an MbyN matrix. Each element y_{ij} of the output contains the variance of the elements in the jth column of all inputs since the last reset, up to and including the element u_{ij} of the current input.When a reset event occurs, the running variance for each channel becomes the variance of all the samples in the current input frame, up to and including the current input sample.
Elements as channels (sample based)
— The block treats each element of the input as a separate channel. For a threedimensional input signal of size MbyNbyP, the block outputs an MbyNbyP array. Each element y_{ijk} of the output contains the variance of the element u_{ijk} for all inputs since the last reset.When a reset event occurs, the running variance y_{ijk} in the current frame is reset to the element u_{ijk}.
VariableSize Inputs
When your inputs are of variable size, and you select the Running variance parameter, then:
If you set the Input processing parameter to
Elements as channels (sample based)
, the state is reset.If you set the Input processing parameter to
Columns as channels (frame based)
, then:When the input size difference is in the number of channels (number of columns), the state is reset.
When the input size difference is in the length of channels (number of rows), the state is not reset, and the running operation is carried out as usual.
Dependencies
To enable this parameter, select the Running variance parameter.
Reset port — Reset event
None
(default)  Rising edge
 Falling edge
 Either edge
 Nonzero sample
The block resets the running variance whenever a reset event is detected at the optional Rst port. The reset sample time must be a positive integer multiple of the input sample time.
When a reset event occurs while the Input
processing parameter is set to Elements as
channels (sample based)
, the running variance for each
channel is initialized to the value in the corresponding channel of the
current input. Similarly, when the Input processing
parameter is set to Columns as channels (frame
based)
, the running variance for each channel becomes
the variance of all the samples in the current input frame, up to and
including the current input sample.
Use this parameter to specify the reset event.
None
— Disables the Rst port.Rising edge
— Triggers a reset operation when the Rst input does one of the following:Rises from a negative value to either a positive value or zero.
Rises from zero to a positive value, where the rise is not a continuation of a rise from a negative value to zero.
Falling edge
— Triggers a reset operation when the Rst input does one of the following:Falls from a positive value to a negative value or zero.
Falls from zero to a negative value, where the fall is not a continuation of a fall from a positive value to zero.
Either edge
— Triggers a reset operation when the Rst input is aRising edge
orFalling edge
.Nonzero sample
— Triggers a reset operation at each sample time, when the Rst input is not zero.
Note
When running simulations in the Simulink multitasking mode, reset signals have a onesample latency. Therefore, when the block detects a reset event, there is a onesample delay at the reset port rate before the block applies the reset. For more information on latency and the Simulink tasking modes, see Excess Algorithmic Delay (Tasking Latency) and TimeBased Scheduling and Code Generation (Simulink Coder).
Dependencies
To enable this parameter, select the Running variance parameter.
Data Types Tab
Note
To use these parameters, the data input must be fixed point. For all other inputs, the parameters on the Data Types tab are ignored.
Rounding mode — Method of rounding operation
Floor
(default)  Ceiling
 Convergent
 Nearest
 Round
 Simplest
 Zero
Specify the rounding mode for fixedpoint operations. For more details, see rounding mode.
Saturate on integer overflow — Method of overflow action
off (default)  on
When you select this parameter, the block saturates the result of its
fixedpoint operation. When you clear this parameter, the block wraps
the result of its fixedpoint operation. For details on
saturate
and wrap
, see overflow
mode for fixedpoint operations.
Inputsquared product output — Data type of the inputsquared term
Same as input
(default)  Binary point scaling
The squares of the input elements are stored in the Inputsquared product output data type. If the input is complex, the squares of the real and imaginary parts of the input are stored in this data type. For more details, see Fixed Point.
You can set this parameter to:
Inherit: Same as input
— The data type is same as the input data type.Binary point scaling
— The Inputsquared product output data type uses binary point scaling. If you select this option, the block displays the fields to specify the Word length and Fraction length. The Signedness is inherited from the input.
Inputsumsquared product — Data type of the inputsumsquared term
Same as inputsquared
product
(default)  Binary point scaling
The squares of the sum of the input elements are stored in the Inputsumsquared product data type. If the input is complex, the squares of the sum of the real parts and the squares of the sum of the imaginary parts are stored in this data type. For more details, see Fixed Point.
You can set this parameter to:
Same as inputsquared product
— The data type is the same as the input squaredproduct data type.Binary point scaling
— The Inputsumsquared product data type uses binary point scaling. If you select this option, the block displays the fields to specify the Word length and Fraction length. The Signedness is inherited from the input.
Accumulator — Accumulator data type
Same as inputsquared
product
(default)  Same as input
 Binary point scaling
Accumulator specifies the data type of the output of an accumulation operation in the Variance block. See Fixed Point for illustrations depicting the use of the accumulator data type in this block.
You can set this parameter to:
Same as inputsquared product
— The accumulator data type is the same as the inputsquared product data type.Same as input
— The accumulator data type is the same as the input data type.Binary point scaling
— The Accumulator data type uses binary point scaling. If you select this option, the block displays the fields to specify the Word length and Fraction length. The Signedness is inherited from the input.
Output — Output data type
Same as inputsquared
product
(default)  Same as accumulator
 Same as input
 Binary point scaling
Output specifies the data type of the output of the Variance block. See Fixed Point for information about the use of the output data type in this block. You can set it to:
Same as inputsquared product
— The output data type is the same as the inputsquared product data type.Same as accumulator
— The output data type is the same as the accumulator data type.Same as input
— The output data type is the same as the input data type.Binary point scaling
— The Output data type uses binary point scaling. If you select this option, the block displays the fields to specify the Word length and Fraction length. The Signedness is inherited from the input.
Lock data type settings against changes by the fixedpoint tools — Prevent fixedpoint tools from overriding data types
off (default)  on
Select this parameter to prevent the fixedpoint tools from overriding the data types you specify on the block.
Block Characteristics
Data Types

Direct Feedthrough

Multidimensional Signals

VariableSize Signals

ZeroCrossing Detection

More About
Variance
The variance of a discretetime signal is the square of the standard deviation of the signal. Variance gives a measure of deviation of the signal from its mean value.
For purely real or imaginary input, u, of size MbyN, the variance is given by:
$$y={\sigma}^{2}=\frac{{\displaystyle \sum _{i=1}^{M}{\displaystyle \sum _{j=1}^{N}{\left{u}_{ij}\right}^{2}\frac{{\left{\displaystyle \sum _{i=1}^{M}{\displaystyle \sum _{j=1}^{N}{u}_{ij}}}\right}^{2}}{M*N}}}}{M*N1}.$$
where,
u_{ij} is the input data element at indices i, j.
M is the length of the jth column.
N is the number of columns.
For complex inputs, the variance is given by the following equation:
$${\sigma}^{2}={\sigma}_{\mathrm{Re}}{}^{2}+{\sigma}_{\mathrm{Im}}{}^{2}$$
where,
σ_{Re}^{2} is the variance of the real part of the complex input.
σ_{Im}^{2} is the variance of the imaginary part of the complex input.
Algorithms
Variance
When you clear the Running variance parameter in the block
and specify a dimension, the block produces results identical to the MATLAB^{®}
var
function when it is called as y =
var(u,0,D)
, where,
u
is the data input.D
is the dimension.y
is the variance along the specified dimension.
When this block calculates the variance along the entire input, the result is
identical to calling the var
function as y =
var(u(:))
.
For a complex input signal, the variance is the sum of the variances of the real and imaginary parts.
$${\sigma}^{2}={\sigma}_{\mathrm{Re}}{}^{2}+{\sigma}_{\mathrm{Im}}{}^{2}$$
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
FixedPoint Conversion
Design and simulate fixedpoint systems using FixedPoint Designer™.
For purely real or imaginary input u of size MbyN, the variance is given by:
$$y={\sigma}^{2}=\frac{{\displaystyle \sum _{i=1}^{M}{\displaystyle \sum _{j=1}^{N}{\left{u}_{ij}\right}^{2}\frac{{\left{\displaystyle \sum _{i=1}^{M}{\displaystyle \sum _{j=1}^{N}{u}_{ij}}}\right}^{2}}{M*N}}}}{M*N1}.$$

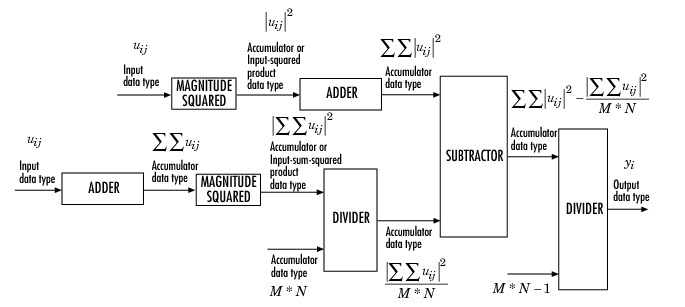

The following diagram shows the data types used within the Variance block when the input is fixedpoint.
For complex inputs, the variance is given by the following equation:
$${\sigma}^{2}={\sigma}_{\mathrm{Re}}{}^{2}+{\sigma}_{\mathrm{Im}}{}^{2}$$
Version History
Introduced before R2006a
