Why Does Reading Data from the dsp.AsyncBuffer Object Give a Dimension Mismatch Error in MATLAB Function Block?
If you are reading data from an asynchronous buffer inside a MATLAB Function (Simulink) block, the block throws a dimension mismatch error if the output of the
read function is not specified to be a variable-size signal.
Here is the

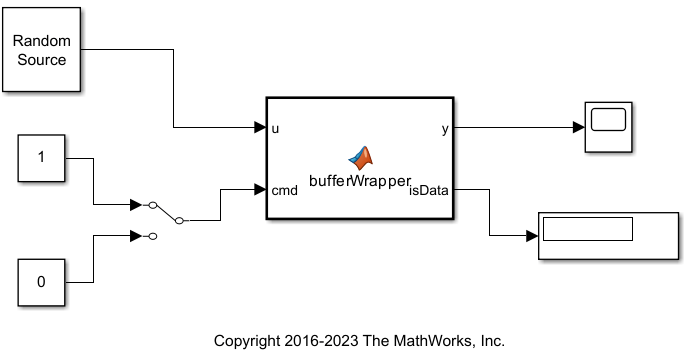

bufferWrapper function that contains the algorithm inside the MATLAB Function block. When input on the
cmd port is 1, the
dsp.AsyncBuffer object writes the data input
u to the buffer. When input on the
cmd port is 0, the object reads data from the buffer.
function [y,isData] = bufferWrapper(u,cmd) persistent asyncBuff if isempty(asyncBuff) asyncBuff = dsp.AsyncBuffer; setup(asyncBuff,u); end if cmd % write write(asyncBuff,u); y = zeros(3,1); isData = false; else % read y = read(asyncBuff,3); isData = true; end
You must initialize the buffer by calling either
setup before the first call to
During the write operation, the first output
zeros(3,1) and the second output
isData is 0. During the read operation,
y is the data in the buffer and
isData is 1.

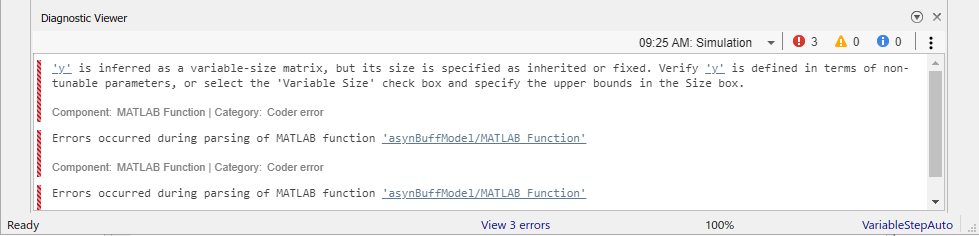

Run the model and the following error occurs.
The output of
read(asyncBuff,3) is variable sized. The output is variable sized because the size of the signal output by the
read function depends on the input arguments to
read. To resolve this error, set
y as a variable-size signal and specify the upper bound.

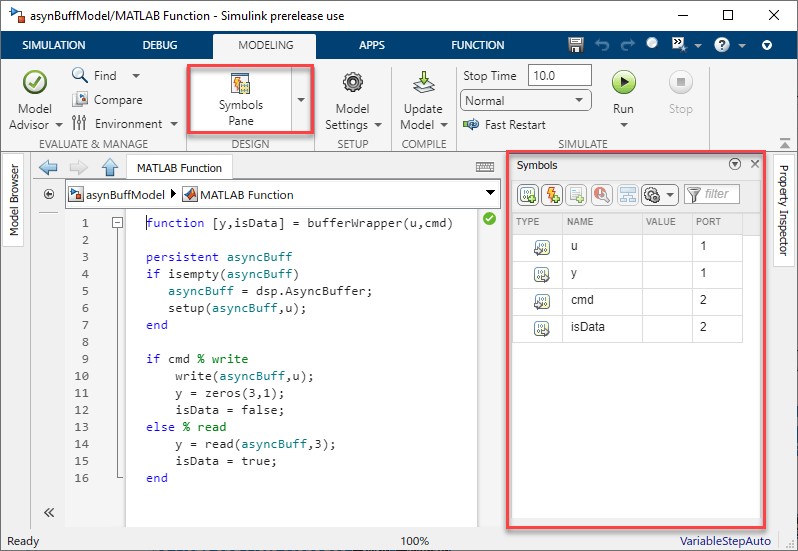

In the MATLAB Function block Editor, click Modeling tab. In the Design section, click Symbols Pane. The Symbols pane opens on the right.

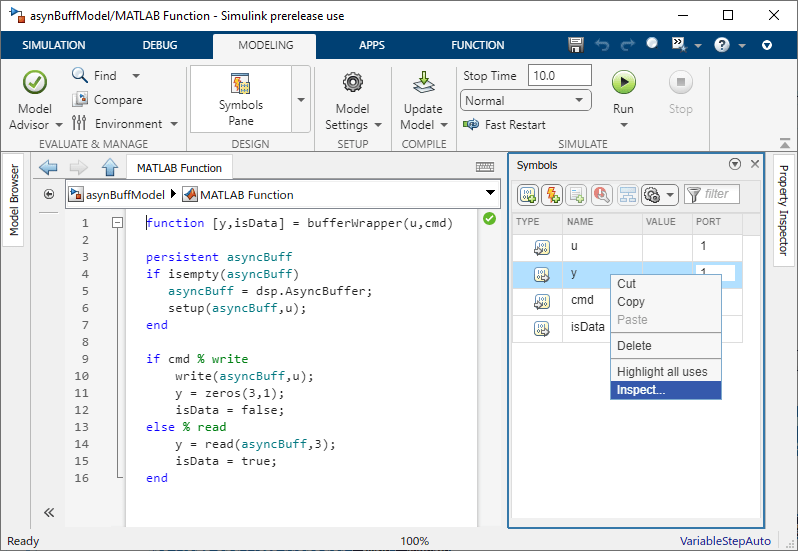

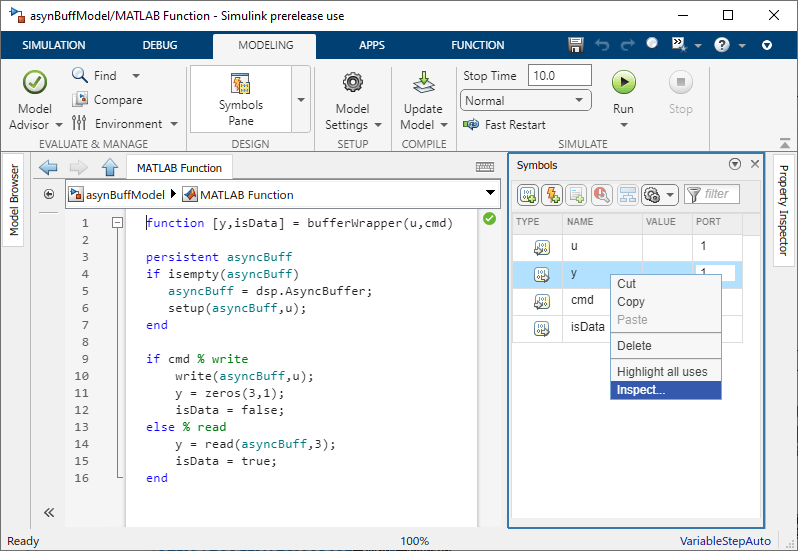

y and select

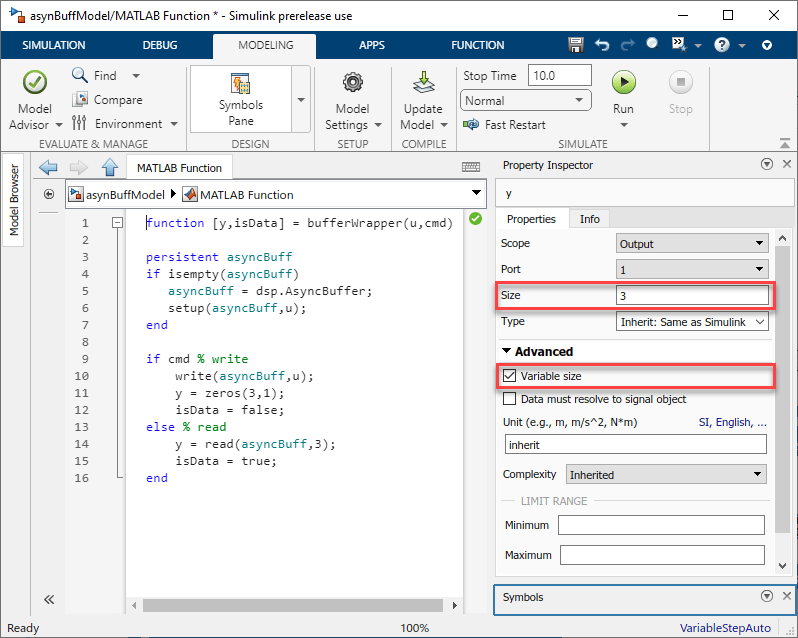

Property Inspector window opens. In the Advanced section, select the Variable size check box. Specify the Size to 3 since that is the size of the data the MATLAB function writes to the variable

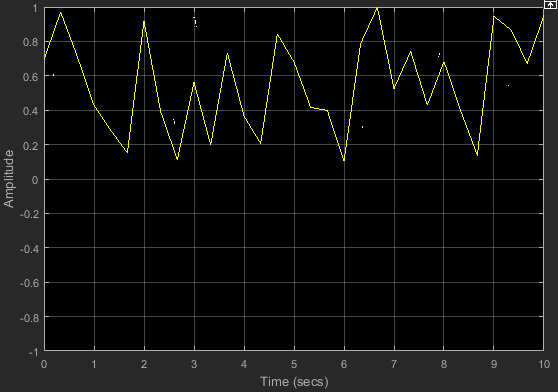

Save and run the model. The error disappears. View the output
y in the Time Scope.

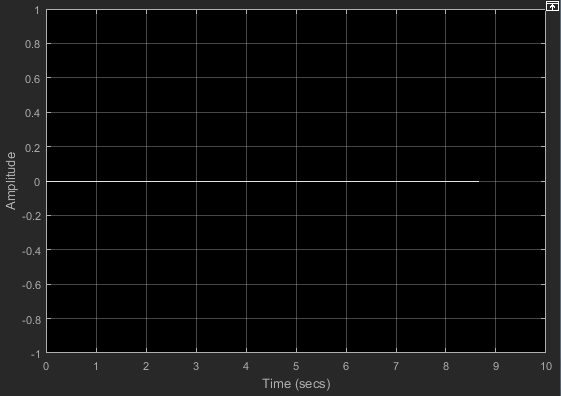

cmd = 0, no data is written into the buffer. Therefore, the output is 0. To write the input data u to the buffer, set
cmd = 1. After you write some data, if you change
cmd back to 0, the Time Scope output changes to the following.
