Modeling
R2026bPrepare Simulink® models for hardware connection, add blocks to support hardware protocols, examples featuring various applications.
Blocks
 | ALSA Audio Capture | Capture audio from sound card using ALSA |
 | ALSA Audio Playback | Send audio to sound card for playback using ALSA |
 | Analog Input | Measure voltage of analog input pin |
 | GPIO Read | Read logical value of GPIO pin configured as input |
 | GPIO Write | Set GPIO pin status |
 | LED | Illuminate built-in LED on BeagleBone board |
 | PWM | Pulse width modulation of digital output pin |
 | SDL Video Display | Display video using SDL |
 | ThingSpeak Write | Publish data to Internet of Things using ThingSpeak |
 | UDP Receive | Receive UDP packets over IP network |
 | UDP Send | Send UDP message |
 | V4L2 Video Capture | Capture video from USB camera using V4L2 framework |
Topics
- Model Configuration Parameters for BeagleBone Black Hardware Board
Parameter and configuration options for creating and running applications on an BeagleBone® Black hardware board.
- Open Block Library for BeagleBone Black Hardware
Locate the block library for BeagleBone Black hardware.
- Publish Data to Internet of Things Using ThingSpeak
Publish Data to Internet of Things using ThingSpeak™.
Featured Examples

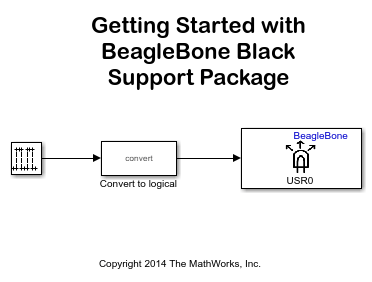

Get Started with Embedded Coder Support Package for BeagleBone Black Hardware
Use Embedded Coder® Support Package for BeagleBone® Black Hardware to run a Simulink® model on BeagleBone Black hardware.
Pin Muxing
Use Embedded Coder® Support Package for BeagleBone® Black Hardware to set the correct hardware pin mux configuration to run Simulink® models accessing the physical pins of the BeagleBone Black hardware.

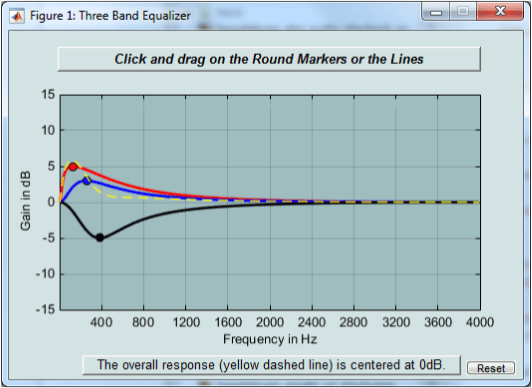

Parametric Audio Equalizer
Use the ALSA Audio Playback block from the BeagleBone® Black block library to implement a parametric audio equalizer algorithm on BeagleBone Black hardware.

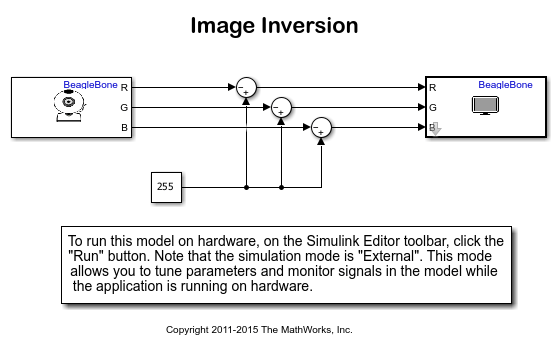

Image Inversion
Use the V4L2 Video Capture and the SDL Video Display blocks from the BeagleBone® Black block library to implement an image inversion algorithm with a Simulink® model, and to run the model on BeagleBone Black hardware.
