# forecast

Class: arima

Forecast ARIMA or ARIMAX model responses or conditional variances

## Syntax

```[Y,YMSE] = forecast(Mdl,numperiods,Y0) [Y,YMSE] = forecast(Mdl,numperiods,Y0,Name,Value) [Y,YMSE,V] = forecast(___) ```

## Description

```[Y,YMSE] = forecast(Mdl,numperiods,Y0)``` returns `numperiods` consecutive forecasted responses `Y` and corresponding mean square errors `YMSE` of the fully specified, univariate ARIMA or ARIMAX model `Mdl`. The presample response data `Y0` initializes the model to generate forecasts.

`[Y,YMSE] = forecast(Mdl,numperiods,Y0,Name,Value)` uses additional options specified by one or more name-value pair arguments. For example, for a model with a regression component, `'X0',X0,'XF',XF` specifies the presample and forecasted predictor data `X0` and `XF`, respectively.

```[Y,YMSE,V] = forecast(___)``` also forecasts `numperiods` conditional variances `V` of a composite conditional mean and variance model (for example, an ARIMA and GARCH composite model) using any of the input argument combinations in the previous syntaxes.

## Input Arguments

expand all

Fully specified ARIMA or ARIMAX model, specified as an `arima` model returned by `arima` or `estimate`.

The properties of `Mdl` cannot contain `NaN`s.

Forecast horizon, or the number of time points in the forecast period, specified as a positive integer.

Data Types: `double`

Presample response data used to initialize the model for forecasting, specified as a numeric column vector with length `numpreobs` or a `numpreobs`-by-`numpaths` numeric matrix.

Rows of `Y0` correspond to periods in the presample, and the last row contains the latest presample response. `numpreobs` is the number of specified presample responses and it must be at least `Mdl.P`. If `numpreobs` exceeds `Mdl.P`, `forecast` uses only the latest `Mdl.P` rows. For more details, see Time Base Partitions for Forecasting.

Columns of `Y0` correspond to separate, independent paths.

• If `Y0` is a column vector, `forecast` applies it to each forecasted path. In this case, all forecast paths `Y` derive from the same initial conditions.

• If `Y0` is a matrix, it must have `numpaths` columns, where `numpaths` is the maximum among the second dimensions of the specified presample observation arrays `Y0`, `E0`, and `V0`.

Data Types: `double`

### Name-Value Pair Arguments

Specify optional comma-separated pairs of `Name,Value` arguments. `Name` is the argument name and `Value` is the corresponding value. `Name` must appear inside quotes. You can specify several name and value pair arguments in any order as `Name1,Value1,...,NameN,ValueN`.

Presample innovations used to initialize the moving average (MA) component of the model or conditional variance model, specified as the comma-separated pair consisting of `'E0'` and a numeric column vector or a numeric matrix with `numpaths` columns. `forecast` assumes that the presample innovations have a mean of 0.

Rows of `E0` correspond to periods in the presample, and the last row contains the latest presample innovation. `E0` must have at least `Mdl.Q` rows to initialize the MA component. If `Mdl.Variance` is a conditional variance model (for example, `garch`), `E0` might require more than `Mdl.Q` rows. If the number of rows exceeds the minimum number required to forecast `Mdl`, `forecast` uses only the latest required rows.

Columns of `E0` correspond to separate, independent paths.

• If `E0` is a column vector, `forecast` applies it to each forecasted path. In this case, the MA component and conditional variance model of all forecast paths `Y` derive from the same initial innovations.

• If `E0` is a matrix, it must have `numpaths` columns.

• By default, if `numpreobs``Mdl.P` + `Mdl.Q`, `forecast` infers any necessary presample innovations by passing the model `Mdl` and presample data to `infer`. For more details on this default for models containing a regression component, see `X0` and `XF`.

• By default, if `numpreobs` < `Mdl.P` + `Mdl.Q`, `forecast` sets all necessary presample innovations to `0`.

Data Types: `double`

Presample conditional variances used to initialize the conditional variance model, specified as the comma-separated pair consisting of `'V0'` and a positive numeric column vector or a positive numeric matrix with `numpaths` columns. If the model variance `Mdl.Variance` is constant, `forecast` ignores `V0`.

Rows of `V0` correspond to periods in the presample, and the last row contains the latest presample conditional variance. If `Mdl.Variance` is a conditional variance model (for example, a `garch` model object), `E0` might require more than `Mdl.Q` rows to initialize `Mdl` for forecasting. If the number of rows exceeds the minimum number required to forecast, the `forecast` function uses only the latest required presample conditional variances.

Columns of `V0` correspond to separate, independent paths.

• If `V0` is a column vector, `forecast` applies it to each forecasted path. In this case, the conditional variance model of all forecast paths `Y` derive from the same initial conditional variances.

• If `V0` is a matrix, it must have `numpaths` columns.

• By default, if you specify enough presample innovations `E0` to initialize the conditional variance model, `forecast` infers any necessary presample conditional variances by passing the conditional variance model `Mdl.Variance` and `E0` to `infer`.

• By default, if you do not specify `E0`, but you specify enough presample responses `Y0` to infer enough presample innovations, then `forecast` infers any necessary presample conditional variances from the inferred presample innovations.

• By default, if you do not specify enough presample data, `forecast` sets all necessary presample conditional variances to the unconditional variance of the variance process.

Data Types: `double`

Presample predictor data used to infer presample innovations `E0`, specified as the comma-separated pair consisting of `'X0'` and a numeric matrix with `numpreds` columns.

Rows of `X0` correspond to periods in the presample, and the last row contains the latest set of presample predictor observations.

• If you do not specify `E0`, `X0` must have at least `numpreobs``Mdl.P` rows so that `forecast` can infer presample innovations. If the number of rows exceeds the minimum number required to infer presample innovations, `forecast` uses only the latest required presample predictor observations. A best practice is to set `X0` to the same predictor data matrix used in the estimation, simulation, or inference of `Mdl`. This setting ensures the correct estimation of the presample innovations `E0`.

• If you specify `E0`, then `forecast` ignores `X0`.

Columns of `X0` represent separate time series variables, and they correspond to the columns of `XF`.

If you specify `X0` but you do not specify forecasted predictor data `XF`, then `forecast` issues an error.

By default, `forecast` drops the regression component from the model when it infers presample innovations, regardless of the value of the regression coefficient `Mdl.Beta`.

Data Types: `double`

Forecasted or future predictor data, specified as the comma-separated pair consisting of `'XF'` and a numeric matrix with `numpreds` columns. `XF` represents the evolution of specified presample predictor data `X0` forecasted into the future (the forecast period).

Rows of `XF` correspond to time points in the future; `XF(t,:)` contains the `t`-period-ahead predictor forecasts. `XF` must have at least `numperiods` rows. If the number of rows exceeds `numperiods`, `forecast` uses only the first `numperiods` forecasts. For more details, see Time Base Partitions for Forecasting.

Columns of `XF` are separate time series variables, and they correspond to the columns of `X0`.

By default, `forecast` generates forecasts from `Mdl` without a regression component, regardless of the value of the regression coefficient `Mdl.Beta`.

### Notes

`forecast` assumes that you synchronize all specified presample data sets such that the latest observation of each presample series occurs simultaneously. Similarly, `forecast` assumes that the first observation in the forecasted predictor data `XF` occurs in the next time point after the last observation in the presample predictor data `X0`.

## Output Arguments

expand all

Minimum mean square error (MMSE) forecasts of the conditional mean of the response data, returned as a `numperiods`-by-`numpaths` numeric matrix. `Y` represents a continuation of `Y0` (`Y(1,:)` occurs in the next time point after `Y0(end,:)`).

`Y(t,:)` contains the conditional mean forecast of all paths for time point `t` in the forecast period (the `t`-period-ahead forecasts).

`forecast` determines `numpaths` from the number of columns in the presample data sets `Y0`, `E0`, and `V0`. For details, see Algorithms. If each presample data set has one column, then `Y` is a column vector.

Data Types: `double`

Mean square errors (MSEs) of the forecasted responses `Y` (or forecast error variances), returned as a `numperiods`-by-`numpaths` numeric matrix.

`YMSE(t,:)` contains the forecast error variances of all paths for time point `t` in the forecast period.

`forecast` determines `numpaths` from the number of columns in the presample data sets `Y0`, `E0`, and `V0`. For details, see Algorithms. If you do not specify any presample data sets or each data set is a column vector, then `YMSE` is a column vector.

The square roots of `YMSE` are the standard errors of the forecasts `Y`.

Data Types: `double`

Minimum mean square error (MMSE) forecasts of the conditional variances of future model innovations, returned as a `numperiods`-by-`numpaths` numeric matrix. `V` has `numPeriods` rows and `numPaths` columns.

`forecast` sets the number of columns of `V` (`numPaths`) to the largest number of columns in the presample arrays `Y0`, `E0`, and `V0`. If you do not specify `Y0`, `E0`, and `V0`, then `V` is a `numPeriods` column vector.

In all cases, row i contains the conditional variance forecasts for the ith period.

Data Types: `double`

## Examples

expand all

Forecast the conditional mean response of simulated data over a 30-period horizon.

Simulate 130 observations from a multiplicative seasonal MA model with known parameter values.

```Mdl = arima('MA',{0.5,-0.3},'SMA',0.4,'SMALags',12,... 'Constant',0.04,'Variance',0.2); rng(200); Y = simulate(Mdl,130);```

Fit a seasonal MA model to the first 100 observations, and reserve the remaining 30 observations to evaluate forecast performance.

```MdlTemplate = arima('MALags',1:2,'SMALags',12); EstMdl = estimate(MdlTemplate,Y(1:100));```
``` ARIMA(0,0,2) Model with Seasonal MA(12) (Gaussian Distribution): Value StandardError TStatistic PValue ________ _____________ __________ __________ Constant 0.20403 0.069064 2.9542 0.0031344 MA{1} 0.50212 0.097298 5.1606 2.4619e-07 MA{2} -0.20174 0.10447 -1.9312 0.053464 SMA{12} 0.27028 0.10907 2.478 0.013211 Variance 0.18681 0.032732 5.7073 1.148e-08 ```

`EstMdl` is a new `arima` model that contains estimated parameters (that is, a fully specified model).

Forecast the fitted model into a 30-period horizon. Specify the estimation period data as a presample.

```[YF,YMSE] = forecast(EstMdl,30,Y(1:100)); YF(15)```
```ans = 0.2040 ```
`YMSE(15)`
```ans = 0.2592 ```

`YF` and `YMSE` are 30-by-1 vectors of forecasted responses and corresponding MSEs, respectively. The 15-period-ahead forecast is 0.2040 and its MSE is 0.2592.

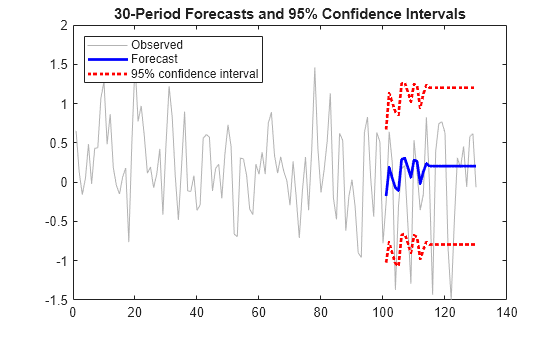

Visually compare the forecasts to the holdout data.

```figure h1 = plot(Y,'Color',[.7,.7,.7]); hold on h2 = plot(101:130,YF,'b','LineWidth',2); h3 = plot(101:130,YF + 1.96*sqrt(YMSE),'r:',... 'LineWidth',2); plot(101:130,YF - 1.96*sqrt(YMSE),'r:','LineWidth',2); legend([h1 h2 h3],'Observed','Forecast',... '95% Confidence Interval','Location','NorthWest'); title(['30-Period Forecasts and Approximate 95% '... 'Confidence Intervals']) hold off```

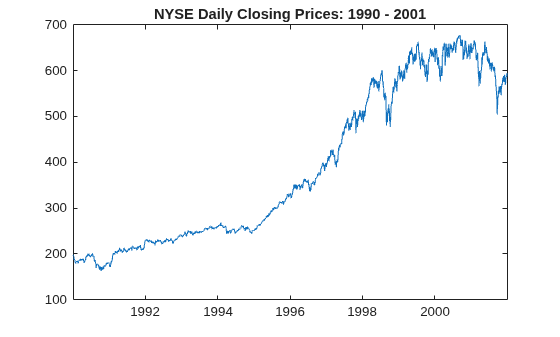

Forecast the daily NASDAQ Composite Index over a 500-day horizon.

Load the NASDAQ data included with the toolbox, and extract the first 1500 observations.

```load Data_EquityIdx nasdaq = DataTable.NASDAQ(1:1500);```

Fit an ARIMA(1,1,1) model to the data.

```nasdaqModel = arima(1,1,1); nasdaqFit = estimate(nasdaqModel,nasdaq);```
``` ARIMA(1,1,1) Model (Gaussian Distribution): Value StandardError TStatistic PValue _________ _____________ __________ __________ Constant 0.43031 0.18555 2.3191 0.020392 AR{1} -0.074393 0.081985 -0.9074 0.36419 MA{1} 0.31126 0.077266 4.0284 5.6151e-05 Variance 27.826 0.63625 43.735 0 ```

Forecast the Composite Index for 500 days using the fitted model. Use the observed data as presample data.

`[Y,YMSE] = forecast(nasdaqFit,500,nasdaq);`

Plot the forecasts and 95% forecast intervals.

```lower = Y - 1.96*sqrt(YMSE); upper = Y + 1.96*sqrt(YMSE); figure plot(nasdaq,'Color',[.7,.7,.7]); hold on h1 = plot(1501:2000,lower,'r:','LineWidth',2); plot(1501:2000,upper,'r:','LineWidth',2) h2 = plot(1501:2000,Y,'k','LineWidth',2); legend([h1 h2],'95% Interval','Forecast',... 'Location','NorthWest') title('NASDAQ Composite Index Forecast') hold off```

The process is nonstationary, so the widths of the forecast intervals grow with time.

Forecast the following known ARX(1) model into a 10-period forecast horizon:

`${y}_{t}=1+0.3{y}_{t-1}+2{x}_{t}+{\epsilon }_{t},$`

where ${\epsilon }_{\mathit{t}}$ is a standard Gaussian random variable, and ${\mathit{x}}_{\mathit{t}}$ is an exogenous Gaussian random variable with a mean of 1 and a standard deviation of 0.5.

Create an `arima` model object that represents the ARX(1) model.

`Mdl = arima('Constant',1,'AR',0.3,'Beta',2,'Variance',1);`

To forecast responses from the ARX(1) model, `forecast` requires:

• One presample response ${\mathit{y}}_{0}$ to initialize the autoregressive term

• Future exogenous data to include the effects of the exogenous variable on the forecasted responses

Set the presample response to the unconditional mean of the stationary process:

`$E\left({y}_{t}\right)=\frac{1+2\left(1\right)}{1-0.3}.$`

For the future exogenous data, draw 10 values from the distribution of the exogenous variable.

```rng(1); y0 = (1 + 2)/(1 - 0.3); xf = 1 + 0.5*randn(10,1);```

Forecast the ARX(1) model into a 10-period forecast horizon. Specify the presample response and future exogenous data.

```fh = 10; yf = forecast(Mdl,fh,y0,'XF',xf)```
```yf = 10×1 3.6367 5.2722 3.8232 3.0373 3.0657 3.3470 3.4454 4.2120 4.0667 4.8065 ```

`yf(3)` = `3.8232` is the 3-period-ahead forecast of the ARX(1) model.

Forecast multiple response paths from a known SAR$\left(1,0,0\right){\left(1,1,0\right)}_{4}$ model by specifying multiple presample response paths.

Create an `arima` model object that represents this quarterly SAR$\left(1,0,0\right){\left(1,1,0\right)}_{4}$ model:

`$\left(1-0.5L\right)\left(1-0.2{L}^{4}\right)\left(1-{L}^{4}\right){y}_{t}=1+{\epsilon }_{t},$`

where ${\epsilon }_{\mathit{t}}$ is a standard Gaussian random variable.

```Mdl = arima('Constant',1,'AR',0.5,'Variance',1,... 'Seasonality',4,'SARLags',4,'SAR',0.2)```
```Mdl = arima with properties: Description: "ARIMA(1,0,0) Model Seasonally Integrated with Seasonal AR(4) (Gaussian Distribution)" Distribution: Name = "Gaussian" P: 9 D: 0 Q: 0 Constant: 1 AR: {0.5} at lag [1] SAR: {0.2} at lag [4] MA: {} SMA: {} Seasonality: 4 Beta: [1×0] Variance: 1 ```

Because `Mdl` contains autoregressive dynamic terms, `forecast` requires the previous `Mdl.P` responses to generate a $\mathit{t}$-period-ahead forecast from the model. Therefore, the presample should contain nine values.

Generate a random 9-by-10 matrix representing 10 presample paths of length 9.

```rng(1); numpaths = 10; Y0 = rand(Mdl.P,numpaths);```

Forecast 10 paths from the SAR model into a 12-quarter forecast horizon. Specify the presample observation paths `Y0`.

```fh = 12; YF = forecast(Mdl,fh,Y0);```

`YF` is a 12-by-10 matrix of independent forecasted paths. `YF(j,k)` is the `j`-period-ahead forecast of path `k`. Path `YF(:,k)` represents the continuation of the presample path `Y0(:,k)`.

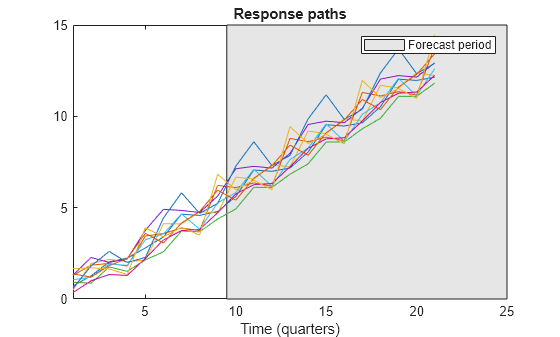

Plot the presample and forecasts.

```Y = [Y0;... YF]; figure; plot(Y); hold on h = gca; px = [6.5 h.XLim([2 2]) 6.5]; py = h.YLim([1 1 2 2]); hp = patch(px,py,[0.9 0.9 0.9]); uistack(hp,"bottom"); axis tight legend("Forecast period") xlabel('Time (quarters)') ylabel('Response paths')```

expand all

## Algorithms

• `forecast` sets the number of sample paths to forecast `numpaths` to the maximum number of columns among the presample data sets `E0`, `V0`, and `Y0`. All presample data sets must have either `numpaths` > 1 columns or one column. Otherwise, `forecast` issues an error. For example, if `Y0` has five columns, representing five paths, then `E0` and `V0` can either have five columns or one column. If `E0` has one column, then `forecast` applies `E0` to each path.

• `NaN` values in presample and future data sets indicate missing data. `forecast` removes missing data from the presample data sets following this procedure:

1. `forecast` horizontally concatenates the specified presample data sets `Y0`, `E0`, `V0`, and `X0` such that the latest observations occur simultaneously. The result can be a jagged array because the presample data sets can have a different number of rows. In this case, `forecast` prepads variables with an appropriate amount of zeros to form a matrix.

2. `forecast` applies list-wise deletion to the combined presample matrix by removing all rows containing at least one `NaN`.

3. `forecast` extracts the processed presample data sets from the result of step 2, and removes all prepadded zeros.

`forecast` applies a similar procedure to the forecasted predictor data `XF`. After `forecast` applies list-wise deletion to `XF`, the result must have at least `numperiods` rows. Otherwise, `forecast` issues an error.

List-wise deletion reduces the sample size and can create irregular time series.

• When `forecast` estimates MSEs `YMSE` of the conditional mean forecasts `Y`, the function treats the specified predictor data sets `X0` and `XF` as exogenous, nonstochastic, and statistically independent of the model innovations. Therefore, `YMSE` reflects the variance associated with the ARIMA component of the input model `Mdl` alone.

expand all

## References

[1] Baillie, R., and T. Bollerslev. “Prediction in Dynamic Models with Time-Dependent Conditional Variances.” Journal of Econometrics. Vol. 52, 1992, pp. 91–113.

[2] Bollerslev, T. “Generalized Autoregressive Conditional Heteroskedasticity.” Journal of Econometrics. Vol. 31, 1996, pp. 307–327.

[3] Bollerslev, T. “A Conditionally Heteroskedastic Time Series Model for Speculative Prices and Rates of Return.” The Review Economics and Statistics. Vol. 69, 1987, pp. 542–547.

[4] Box, G. E. P., G. M. Jenkins, and G. C. Reinsel. Time Series Analysis: Forecasting and Control 3rd ed. Englewood Cliffs, NJ: Prentice Hall, 1994.

[5] Enders, W. Applied Econometric Time Series. Hoboken, NJ: John Wiley & Sons, 1995.

[6] Engle, R. F. “Autoregressive Conditional Heteroskedasticity with Estimates of the Variance of United Kingdom Inflation.” Econometrica. Vol. 50, 1982, pp. 987–1007.

[7] Hamilton, J. D. Time Series Analysis. Princeton, NJ: Princeton University Press, 1994.
