Platform object belonging to tracking scenario


Platform defines a platform object belonging to a tracking scenario. Platforms represent the moving objects in a scenario and are modeled as points or cuboids with aspect-dependent properties.


You can create Platform objects using the platform method of trackingScenario.


expand all

This property is read-only.

Scenario-defined platform identifier, specified as a positive integer. The scenario automatically assigns PlatformID values to each platform.

Data Types: double

Platform classification identifier specified as a nonnegative integer. You can define your own platform classification scheme and assign ClassID values to platforms according to the scheme. The value of 0 is reserved for an object of unknown or unassigned class.

Example: 5

Data Types: double | single

This property is read-only.

Current position of the platform, specified as a 3-element vector of scalars.

  • When the IsEarthCentered property of the scenario is set to false, the position is expressed as a three element Cartesian state [x, y, z] in meters.

  • When the IsEarthCentered property of the scenario is set to true, the position is expressed as a three element geodetic state: latitude in degrees, longitude in degrees, and altitude in meters.

The position is determined by the platform trajectory defined in the Trajectory property.

Data Types: double

This property is read-only.

Current orientation of the platform, specified as a 3-element vector of scalars in degrees. The three scalars are the [yaw, pitch, roll] rotation angles from the local reference frame to the platform's body frame. The orientation is determined by the platform trajectory defined in the Trajectory property.

Data Types: double

Platform dimensions and origin offset, specified as a structure. The structure contains the Length, Width, Height, and OriginOffset of a cuboid that approximates the dimensions of the platform. The OriginOffset is the position vector from the center of the cuboid to the origin of the platform coordinate frame. The OriginOffset is expressed in the platform coordinate system. For example, if the platform origin is at the center of the cuboid rear face as shown in the following figure, then set OriginOffset as [-L/2, 0, 0]. The default value for Dimensions is a structure with all fields set to zero, which corresponds to a point model.

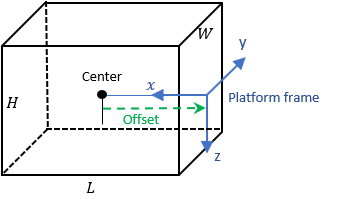

Dimensions of Platform

Fields of Dimensions

LengthDimension of a cuboid along the x direction0
WidthDimension of a cuboid along the y direction0
HeightDimension of a cuboid along the z direction0
OriginOffsetPosition of the platform coordinate frame origin with respect to the cuboid center[0 0 0 ]

Example: struct('Length',5,'Width',2.5,'Height',3.5,'OriginOffset',[-2.5 0 0])

Data Types: struct

Platform motion, specified as either a kinematicTrajectory object, a waypointTrajectory object, or a geoTrajectory object. The trajectory object defines the time evolution of the position and velocity of the platform frame origin, as well as the orientation of the platform frame relative to the scenario frame.

Platform signatures, specified as a cell array of irSignature, rcsSignature, and tsSignature objects or an empty cell array. The cell array contains at most only one instance for each type of signature objects listed. A signature represents the reflection or emission pattern of a platform such as its radar cross-section, target strength, or IR intensity.

A pose estimator, specified as a pose-estimator object such as insSensor. The pose estimator determines platform pose with respect to the local NED scenario coordinate. The interface of any pose estimator must match the interface of insSensor. By default, pose-estimator accuracy properties are set to zero.

Emitters mounted on platform, specified as a cell array of emitter objects, such as radarEmitter or sonarEmitter.

Sensors mounted on platform, specified as a cell array of sensor objects such as irSensor, fusionRadarSensor, monostaticLidarSensor, or sonarSensor.

Mesh of platform, specified as an extendedObjectMesh object. The object represents the mesh as vertices and faces. The monostaticLidarSensor object uses the platform mesh information to generate cloud data.

Object Functions

detectDetect signals using platform-mounted sensors
lidarDetectReport point cloud detections from all lidar sensor on platform
emitRadiate signals from emitters mounted on platform
posePose of platform
targetPosesTarget positions and orientations as seen from platform
targetMeshesTarget meshes as seen from platform


collapse all

Create a tracking scenario and a platform following a circular path.

scene = trackingScenario('UpdateRate',1/50);

% Create a platform
plat = platform(scene);

% Follow a circular trajectory 1 km in radius completing in 400 hundred seconds.
plat.Trajectory = waypointTrajectory('Waypoints', [0 1000 0; 1000 0 0; 0 -1000 0; -1000 0 0; 0 1000 0], ...
    'TimeOfArrival', [0; 100; 200; 300; 400]);

% Perform the simulation
while scene.advance
    p = pose(plat);
    fprintf('Time = %f ', scene.SimulationTime);
    fprintf('Position = [');
    fprintf('%f ', p.Position);
    fprintf('] Velocity = [');
    fprintf('%f ', p.Velocity);
Time = 0.000000
Position = [
0.000000 1000.000000 0.000000
] Velocity = [
15.707701 -0.000493 0.000000
Time = 50.000000
Position = [
707.095476 707.100019 0.000000
] Velocity = [
11.107152 -11.107075 0.000000
Time = 100.000000
Position = [
1000.000000 0.000000 0.000000
] Velocity = [
0.000476 -15.707961 0.000000
Time = 150.000000
Position = [
707.115558 -707.115461 0.000000
] Velocity = [
-11.107346 -11.107341 0.000000
Time = 200.000000
Position = [
0.000000 -1000.000000 0.000000
] Velocity = [
-15.707963 0.000460 0.000000
Time = 250.000000
Position = [
-707.098004 -707.098102 0.000000
] Velocity = [
-11.107069 11.107074 0.000000
Time = 300.000000
Position = [
-1000.000000 0.000000 0.000000
] Velocity = [
-0.000476 15.707966 0.000000
Time = 350.000000
Position = [
-707.118086 707.113543 0.000000
] Velocity = [
11.107262 11.107340 0.000000
Time = 400.000000
Position = [
-0.000000 1000.000000 0.000000
] Velocity = [
15.708226 -0.000493 0.000000

Create a tracking scenario with two cuboid platforms following circular trajectories.

sc = trackingScenario;

% Create the platform for a truck with dimension 5 x 2.5 x 3.5 (m).
p1 = platform(sc);
p1.Dimensions = struct('Length',5,'Width',2.5,'Height',3.5,'OriginOffset',[0 0 0]);

% Specify the truck's trajectory as a circle with radius 20 meters.
p1.Trajectory = waypointTrajectory('Waypoints', [20*cos(2*pi*(0:10)'/10)...
                              20*sin(2*pi*(0:10)'/10) -1.75*ones(11,1)], ...
                              'TimeOfArrival', linspace(0,50,11)');
% Create the platform for a small quadcopter with dimension .3 x .3 x .1 (m).
p2 = platform(sc);
p2.Dimensions = struct('Length',.3,'Width',.3,'Height',.1,'OriginOffset',[0 0 0]);

% The quadcopter follows the truck at 10 meteres above with small angular delay.
% Note that the negative z coordinates correspond to positive elevation.
p2.Trajectory = waypointTrajectory('Waypoints', [20*cos(2*pi*((0:10)'-.6)/10)...
                               20*sin(2*pi*((0:10)'-.6)/10) -11.80*ones(11,1)], ...
                               'TimeOfArrival', linspace(0,50,11)');

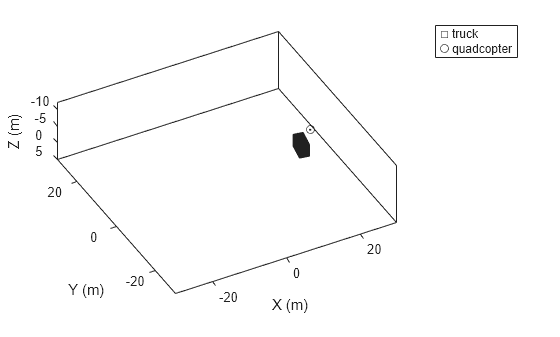

Visualize the results using theaterPlot.

tp = theaterPlot('XLim',[-30 30],'YLim',[-30 30],'Zlim',[-12 5]);
pp1 = platformPlotter(tp,'DisplayName','truck','Marker','s');
pp2 = platformPlotter(tp,'DisplayName','quadcopter','Marker','o');

% Specify a view direction and animate.

while advance(sc)
    poses = platformPoses(sc);
    plotPlatform(pp1, poses(1).Position, p1.Dimensions, poses(1).Orientation);
    plotPlatform(pp2, poses(2).Position, p2.Dimensions, poses(2).Orientation);

Version History

Introduced in R2018b
